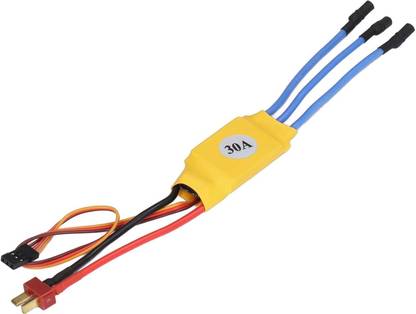

EASTRA HIGH QUALITY 30A Brushless Motor Speed Controller BEC ESC-Electronic Speed Electronic Components Electronic Hobby Kit

Specification: Item Type: Brushless Motor ESC Material: PCB Basic Parameters: Voltage Range: 4-16V Number of Batteries: 4-12NIMH 2-3LIPO (4LIPO does not allow BEC output) BEC Output: Continuous 2A (momentary 3A) 2LIPO 4-5 Micro Servo 3LIPO 3-4 Micro ServoHow to Use: 1. Extreme Use: Continuous current 30A, momentary 35A, 40A for 10 seconds. 2. Protective Function: Automatically select 2?3LIPO, the protection voltage is 6V and 9V; Automatic select NIMH, the protection voltage of each section is 0.8V; Safe start, if the accelerator position is not correct, it is forbidden to start; Temperature protection, stop when 110? appearance temperature; Out of control protection, stop after 1 second without signal. 3. Performance Description: Upper Speed Limit: Up to 300,000rpm for 2 pole internal rotation, 50,000rpm for 12 pole external rotation, and 42,000rpm for 14 pole external rotation. 8KHz PWM control, use speed control curve. Auto throttle adaptation, suitable for more remote control devices. Using BEC, MCU separates the power supply, the work is more stable.
