Audio Mp3 Wav Wma Usb Player Decoder Bluetooth ModuleKT Electronic Components Electronic Hobby Kit
Key Highlights
Key Highlights
Key Highlights
Key Highlights
Key Highlights
Keshav DP Audio Mp3 Wav Wma Usb Player Decoder Bluetooth ModuleKT...more
73%
899
₹240
Buy at ₹228
Apply offers for maximum savings
Apply offers for maximum savings!
Delivery details
Location not set
Select delivery location
Delivery
by 29 Jun, Mon
7-Day
Return
Cash on
Delivery
Customer
support
Product highlights
Pack of 1, Amplifier MP3 Decoder Board Microphone Car Mp3 Player USB Record FM Radio AUX
Brand
Keshav DP
Model Number
Audio Mp3 Wav Wma Usb Player Decoder Bluetooth ModuleKT
Skillset
Creativity & Imagination
Type
Electronic Components
ROHS Complaint
Yes
Material
Fiber
Age Group
16+ Years
All details
Features, description and more
Specifications
Description
Manufacturer info
Show More
In the Box
Pack of 1, Amplifier MP3 Decoder Board Microphone Car Mp3 Player USB Record FM Radio AUX
General
Brand
Keshav DP
Model Number
Audio Mp3 Wav Wma Usb Player Decoder Bluetooth ModuleKT
Skillset
Creativity & Imagination
Type
Electronic Components
ROHS Complaint
Yes
Material
Fiber
Age Group
16+ Years
Lights
No
Sound
Yes
Key Features

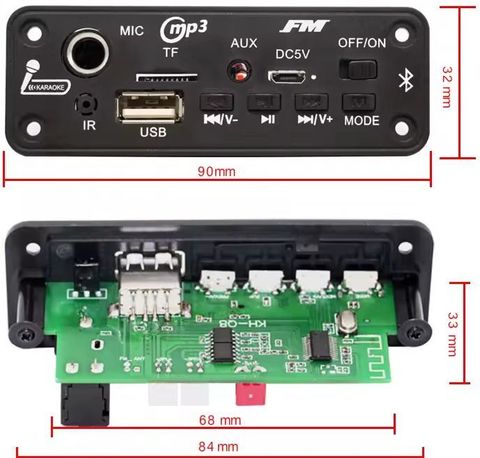

Blue. tooth version: 5.0 Power supply voltage: 3.7V-5V and current not less than 2A. Power: 2* 3-5W, and two 5W / 3W speakers can be connected at the same time. Connect the microphone function, Support power-off memory Music format: MP3/WMA/WAV/APE/FLAC lossless music format., Efficiency: 90%, Radio FM frequency: 87.5-107.5mhz. Introduction of support function: Support MP3/USB/TF/LINE IN/FM/Blue. tooth/remote control/DC 5V. About structure: panel size: 90 * 32 MM
Dimensions
Width
3 cm
Height
2.5 cm
Weight
10
Additional Features
How to use: 1. The power supply voltage limit is 16.5V, do not use more than this voltage. 2. The power supply is recommended for 12v, 3A power supply filter better. 3. 4-8 inch stereo speakers recommended. 4. Do not short-circuit the audio output to each other or shorted to ground. 5. Carefully check before electricity, ensure wiring is correct before electricity.
Power Features
Battery Type
NA
No Of Batteries
NA
Battery Size
NA
Power Source
AC, DC
Power Consumption
215
Other Power Features
FM Digital Radio, [WIRELESS REMOTE CONTROL] The Wireless Remote Control makes it easier for the Rear Seat Passengers or even the Driver to be in Control of their Entertainment as all the functions of the Stereo can be Controlled by the Remote itself., Working voltage : 5V, Supports USB cable for charging purposes, Cheap and easy to install, SNR: 86%, Input impedance: 15K, Output Impedance: 4-8, Amplifier board
See more

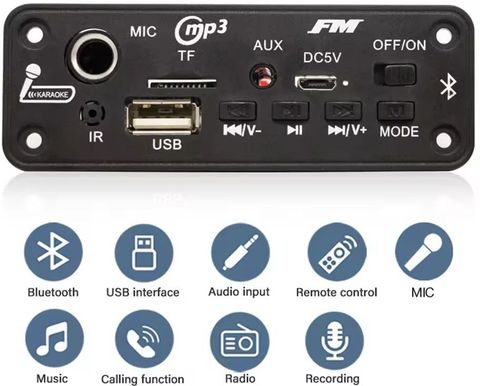

This is an all in one player and decoder module. This board consists of a Bluetooth, FM radio, MP3 player, USB decoder and a USB charging port, aux. cable support and a memory card slot. The working voltage of this module is 5V DC. You can either use this board in your DIY project or you can connect two normal size speakers with it for audio amplification purposes. The body of the module is build-up of hard plastic. You only need to connect a speaker and a 5V DC current supply and the board is ready to go. This board additionally has an inbuilt USB charging port for charging purposes. So if you are looking for a module with so many features then this little buddy is the right choice for you
See more
Generic Name
Electronic Hobby Kit
Country of Origin
India
Name and address of the Manufacturer
KESHAV DTH POINT
Name and address of the Packer
KESHAV DTH POINT
