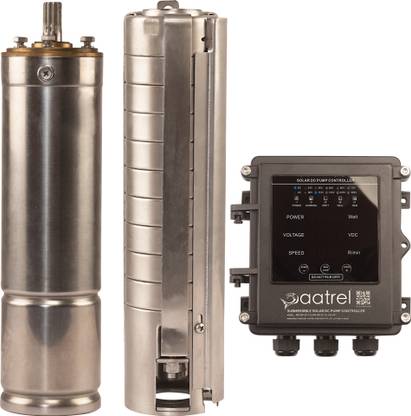

    Aatrel 1HP BLDC Solar Water Pump

    Aatrel 1HP BLDC Solar Water Pump

    Price: Not Available
    Currently Unavailable
    Warranty
    5 Years Warranty for Solar submersible Pump, 5 Years Warranty for Solar submersible BLDC Motor, 2 Years Warranty for Solar Pump Controller is 2 Years from the invoice date to end customer.
    Highlights
    • Rated Power : 1 HP
    • Pump Size : 3 Inch
    • Outlet Size: 1.25 Inch
    • MPPT Function : Auto
    • Max Head : 90 M
    • Max Flow : 83 LPM
    • Centrifugal Stages: 8
    • Controller IP : IP54
    • Min Voltage: 72V
    • Max Voltage: 150V
    • No of solar panels: 3
    • Panel confg : Series
    • Voc/panel = 42V to 48V
    • Power / panel > 380W
    • Pump Weight : 11Kgs
    Description
    Our Pump is equiped with BLDC motor (Brushless Direct Current Motor) also called PMSM (Permanent Magnet Synchronous Motor). It is built using strong Neodymium magnets, which makes it very expensive than a normal Induction motor. Has superior energy efficiency & torque performance than a Cheap Induction motor. You will need less solar power (less solar panels) than a pump set with Induction motor. For same solar power (same solar panels) you will get more output than a pump set with Induction Motor. * Pump body & impeller made of stainless steel * Solar Controller with MPPT (Maximum Power Point Tracking) for extracting more power from your solar panels. * High efficiency BLDC motor * Controller body is made up of Die-Cast aluminium with Ingress protection waterproof rating of IP54 * By combining advance BLDC motor technology & MPPT technology, our pump can deliver more power than a conventional pump with induction motor. Specification: Model Number : AM-SSP-EC-3-S-H90-D83-O1.25-V96-HP1 Rated Power : 1 HP (746 Watts) Pump Size : 3 Inches Outlet Size: 1.25 Inches Max Pressure Head : 90 Meters / 295 Feet [@ Max Solar Power] Max Discharge Flow : 83 Liters / Minute [@ Maximum Solar Power] No of Centrifugal Stages: 8 Motor Efficiency : Up to 90% Controller Efficiency : Up to 95% Controller Type : External Controller [ Waterproof, IP54] Min Controller Voltage : 72 V, DC Max Controller Voltage: 150 V, DC Solar Panel Configuration : 3X 370W Solar Panels in Series [Voc/pc =42V to 48V] Pump Weight : 11Kgs Features: Built with Aatrel BLDC motor MPPT (Maximum Power Point Tracking) function Built with 304 stainless steel impeller Dry run protection sensor 5 years product warranty CE & RoHS compliant product Oil filled BLDC motor for extended life operation Why to buy Aatrel solar pump? * Aatrel solar water pump and controller is designed with high design standards so that they can operate even under adverse conditions reliably. We make every effort to carefully manufacture our products to the highest standards of quality assurance. Our oil filled BLDC motor is made using top quality seals & Impellers to provide excellent operation with durability. Full body & impeller is made with 304 stainless steel for long life operation. * We hope to meet & exceed our customer expectations! All of our pump products are backed by a 100% satisfaction guarantee.
    Read More
    Specifications
    In The Box
    Sales Package
    • Solar Pump Controller, Solar Pump, BLDC Motor, Well Sensor, Tank Sensor, User Manual
    General
    Brand
    • Aatrel
    Model Number
    • 1HP BLDC
    Panel Connection
    • Series
    Voltage
    • 120 V
    Current
    • 6.2 A
    Output Power
    • 750 W
    Flow Rate
    • More than 2000 LPH
    Maximum Head
    • 90 m
    Life Time
    • 100000 hr
    Operating Temperature
    • 320
    Type
    • Multi Stage Pump
    Dimensions
    Outlet Pipe Diameter
    • 3.175 cm
    Width
    • 7.62 cm
    Height
    • 55 cm
    Depth
    • 7.62 cm
    Weight
    • 11 kg
    Other Dimensions
    • Pump & Motor assembly length: 55cm
    Additional Features
    Key Features
    • Built with Aatrel BLDC motor, MPPT (Maximum Power Point Tracking) function, Built with 304 stainless steel impeller, Dry run protection sensor, 5 years product warranty, CE & RoHS compliant product, Oil filled BLDC motor for extended life operation
    Other Features
    • Aatrel solar water pump and controller is designed with high design standards so that they can operate even under adverse conditions reliably. We make every effort to carefully manufacture our products to the highest standards of quality assurance. Our oil filled BLDC motor is made using top quality seals & Impellers to provide excellent operation with durability. Full body & impeller is made with 304 stainless steel for long life operation., The intelligent controller continuously monitor the system performance and detects any abnormal conditions. The controller is programmed to reduce the output if necessary to protect the pump, BLDC motor & controller components. Normal output will restore automatically after the conditions become normal., We hope to meet & exceed our customer expectations! All of our pump products are backed by a 100% satisfaction guarantee.
    Warranty
    Warranty Summary
    • 5 Years Warranty for Solar submersible Pump, 5 Years Warranty for Solar submersible BLDC Motor, 2 Years Warranty for Solar Pump Controller is 2 Years from the invoice date to end customer.
    Domestic Warranty
    • 5 Year
    Service Type
    • Product needs to be shipped to Aatrel office in Chennai, India. Read our Warranty terms & conditions for detailed information.
    Covered in Warranty
    • Pump, Motor & Controller are covered in our warranty.
    Not Covered in Warranty
    • Follow the instructions & recommendations mentioned in the user manual to install and operate the product. The warranty is considered void when there is damage due to improper installation or use, lightning, accident, unauthorised service. Read our Warranty terms & conditions for detailed information.
