ACE Digital Differential Pressure Gauge with Calibration Certificate Multipurpose Controller

Price: Not Available

Currently Unavailable

Warranty

Manufacturer Warranty

Description

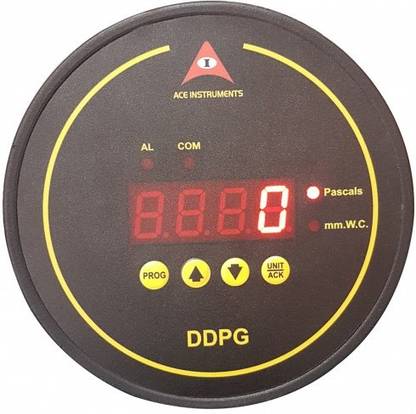

ACE Instruments make Digital Differential Pressure Gauge are part replacement for the analog differential pressure Gauges & are easy to use with clear 4 digit LED display. It comes with built in sensor & also a buzzer alarm with Acknowledgement facility for process violation alert. Applications: Clean rooms, HVAC applications, Pharmaceutical manufacturing plant areas, Filter monitoring, Fan & blower pressure monitoring, Laminar air flow cabinets, etc.

Specifications

In The Box

Sales Package

Multipurpose Controller

General

Brand	ACE
Model Number	Digital Differential Pressure Gauge with Calibration Certificate
Type	Wireless
Power Source	24 Volts D.C. Typical
Material	ABS Plastic
Color	Grey
Bluetooth Enabled	No
Wifi Enabled	No
Compatible Devices	Differential Pressure Indicator
Range	5

Additional Features

Other Features

Manufacturer: ACE Instruments, Model: AI-DDPG, Measuring Range: -10.0 to +10.0 mm.w.c/-100 to +100 Pascals, Accuracy: +/- 0.5% of Full Scale, Resolution: 1 Pascals / 0.1 mm.W.C., Display: Integrated 4 Digit Red LED 7 Segment Display 0.5”, Maximum Over Pressure: 2 Times the rated pressure, Sensors: Integrated High Speed Differential Pressure Sensor, Power Supply: 24 Volts D.C. Typical, Communication: RS 485 Modbus RTU Protocol communication for BMS / SCADA / PLC integration., Alarm Type: Built in Buzzer Alarm for Process Violation Alert, Calibration: Will be provided at no extra cost valid for 1yr traceable to Electronic Test & Development Centre

Dimensions

Width	3 inch
Height	6 inch
Depth	5 inch

Warranty

Warranty Summary	Manufacturer Warranty
Service Type	NA
Covered in Warranty	Yes
Not Covered in Warranty	NA
