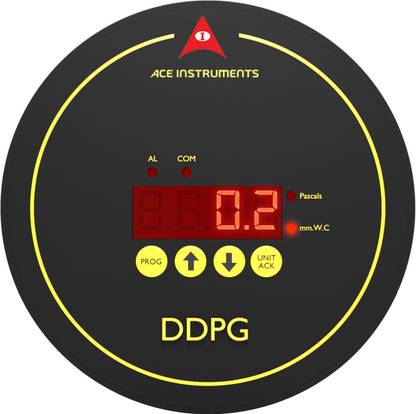

Ace Instruments Ace AI-DDPG Digital Differential Pressure Gauge 4-20mA & RS485 - Temperature & Humidity Sensor

Ace Instruments Ace AI-DDPG Digital Differential Pressure Gauge 4-20mA & RS485 - Temperature & Humidity Sensor

Price: Not Available
Currently Unavailable
Warranty
1 Year Manufacturing Warranty
Description
Ace Digital Differential Pressure Gauge is used in process control environments where differential pressure is a vital parameter. This differential pressure gauge comes with a clear 4 digits LED display and allows users to set alarms at set point violations and also enables communication to BMS/PLC/SCADA system. Application: Laminar Air Flow Cabinets, Clean Rooms, Biosafety Cabinets, AHU, Hospitals, ICU, etc.
Read More
Specifications
In The Box
Sales Package
  • 1 unit of DDPG, 12-24VDC Adapter, Silicon tube, Mounting screws, Instruction manual, Calibration certificate
General
Brand
  • Ace Instruments
Model Number
  • Ace AI-DDPG Digital Differential Pressure Gauge 4-20mA & RS485 -
Type
  • Temperature & Humidity Sensor
Minimum Sensing Range
  • 0
Maximum Sensing Range
  • 1000
Power Requirement
  • 12-24VDC, by the way of 110-230 VAC, 50-60Hz Adaptor provided along with (Fits well in USA and European countries Also)
Power Consumption
  • 12 W
Maximum Operating Temperature
  • 60 degC
Minimum Operating Temperature
  • -10 degC
Display Unit
  • Yes
Other Features
  • This hospital room pressure monitor has unit changes Pascals, mm. W.C. and can be toggled at the press of the key.
  • It has an integrated buzzer alarm for set point violations.
  • This Differential Pressure Gauge has a 4-20ma Analog output.
  • It has a 30 mm profundity for cleanroom modular wall fitment easily replaceable with a Magnahelic gauge cutout.
  • This Negative Pressure indicator is having offset provision to meet audit requirements.
Dimensions
Length
  • 10 cm
Width
  • 10 cm
Height
  • 10 cm
Weight
  • 1 kg
Warranty
Service Type
  • NA
Warranty Summary
  • 1 Year Manufacturing Warranty
