Ace Instruments PSI-PP1 Differential Pressure Gauge Calibrator Along With Calibration Certificate Hydrometer

Price: Not Available

Currently Unavailable

Warranty

Manufacturer Warranty

Description

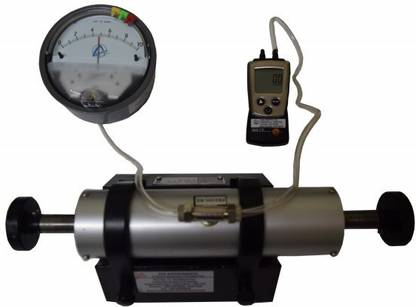

Magnehelic Gauge Calibrator comprises a convenient hand siphon and a Digital Master Gauge with Selectable designing units. The Portable Hand Pump is a lightweight pneumatic siphon used to create gaseous tension for adjustment of Analog Magnehelic Gauges, Differential Pressure Transmitters, Differential Pressure Indicators, Low-Pressure Switches, and Low-Pressure Instruments.

Specifications

General

Brand	Ace Instruments
Model Number	PSI-PP1 Differential Pressure Gauge Calibrator Along With Calibration Certificate
Suitable For	Commercial Use, Industrial Use

Additional Features

Other Features

Manufacturer: Ace Instruments, Measuring Range: 0 to 1410 mm. W.C., Accuracy: Better than +/- 0.3 mm.W/c., Resolution: 1mm. W/c 1mm. W/c, Pressure Types: Differential Pressure (DP), Gauge Pressure, Differential Vacuum, Gauge Vacuum, Pump: Static Pressure Pump, Pressure Ports: 2 Nos. Hose Nipple Connections for +ve & -ve pressure, Knobs: 2 Nos. for Fine & Coarse Pressure Adjustment, Pressure/Vacuum Generation Range Vacuum: Upto 400 mm.Hg. Pressure : Upto 1 Bar, Instrument Housing: ABS Plastic Portable

Dimensions

Length

8 inch

Warranty

Warranty Summary	Manufacturer Warranty
Service Type	NA
Covered in Warranty	Yes
Not Covered in Warranty	NA
