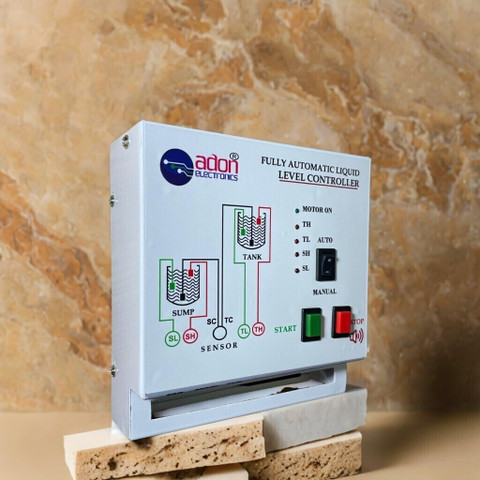

AdonElectronics Fully Automatic Water Level Controller for Monobl...

more

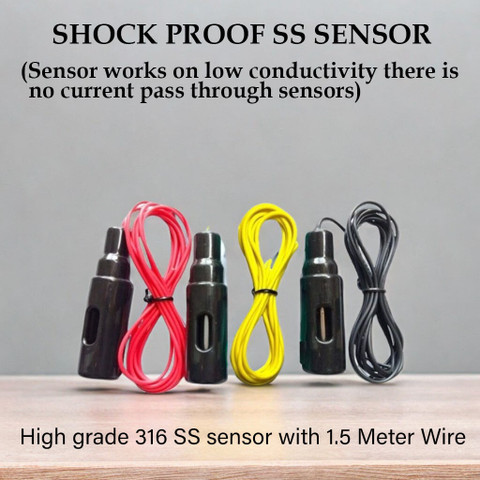

"Adon Electronics Single Phase Fully Automatic Water Level Controller for Monoblock Pump Motor With Alarm Load upto 3HP (Single Tank Control)” || WORKING || Fully automatic water level controller is used to switch on and off the motor according to level of water in overhead tank. With Inbuilt alarm features, user can activate & de-activate the alarm as per their requirement of use. -It has 3 mode of operation Auto, Manual and Semi-auto. In Auto Mode: Auto ON occurs when the tank water level is low (below ‘TL’ sensor level) and Auto OFF when tank is full (at ‘TH’ sensor level). In Manual Mode: This mode is used to operate motor manually by START & STOP button. In Semi Mode: In this mode the motor start by the Start button and turned it off automatically. Has LED indications for Motor On, also has high- and low-level indication to know the level of water in the tank. || FEATURES || 1. Inbuilt Alarm (Buzzer) Features, user controllable activation/de-activation facility. 2. No current/Voltage is passed through Water, therefore No Electrolysis Salt Deposition. 3. No man power required to operate as fully automatic. 4. Avoid overflow & dry running longer life no mechanical system. 5. Compact Steel (with powder coated) housing. 6. Control overhead tank. 7. Easy to install. Advanced embedded technology. 8. It is suitable for Monoblock motor pump up to 3 HP operated by a normal on/off switch / MCB. And also suitable for electronic starter. || SPECIFICATIONS || 1.Operating voltage 220-250 volts ac. Frequency 50 hz. 2. Controller Unit 30 Amp Load Capacity & up to 3 Hp Motor 3. Suitable for Monoblock motor pump operated by a normal on/off switch / MCB/ electronic starter. || PACKAGE CONTAINS|| 1. Controller Unit: Fully automatic water level controller with alarm features for Overhead Tank Only. 2. Sensor: Three (3) Stainless Steel Sensors. 3. Installation Boucher/Warranty Card. || Thanks for to have healthy buying response ||
