AdonElectronics Fully Automatic Water Level Controller for Submersible Pump-With Alarm(Load 3hp) Wired Sensor Security System

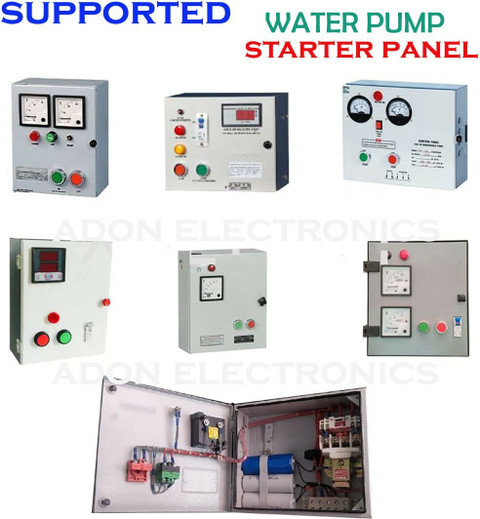

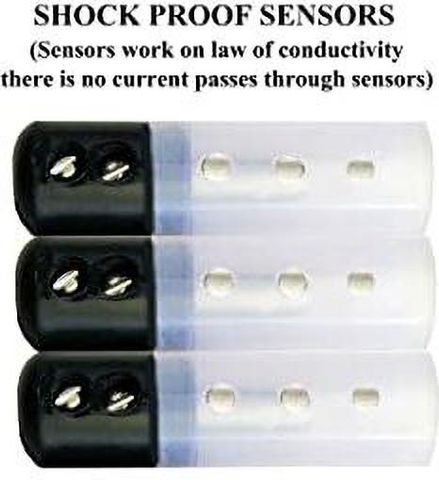

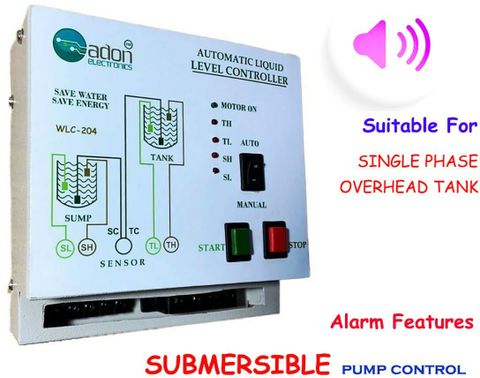

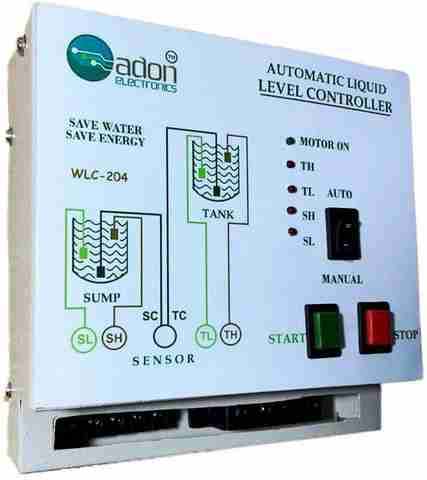

“Adon Electronics Single Phase Fully Automatic Water Level Controller WITH ALARM for Submersible Pump Motor – (Start and Stop (GREEN/RED) Button Type Starter Panel with Single/Multi Capacitors Panel) - Load Up to 3hp - (Overhead Tank Control)” || WORKING || This Fully automatic water level controller is used to control Submersible Pump-Motor (having START (GREEN) and STOP (RED) Button Type Starter Panel with Single/Multi Capacitors Panel) to switch on and off the motor according to level of water in overhead tank with the help of Three SS Type Sensors. With inbuilt alarm features, user can activate & de-activate the alarm as per their requirement of use. -It has 3 mode of operation Auto, Manual and Semi-auto. -In Auto Mode: Auto ON occurs when the tank water level is low (below ‘TL’ sensor level) and Auto OFF when tank is full (at ‘TH’ sensor level). -In Manual Mode: This mode is used to operate motor manually by START & STOP button. -In Semi Mode: In this mode the motor start by the Start button and turned it off automatically. Has LED indications for Motor On, also has high and low level indication to know the level of water in the tank. And lower all two Red LEDs glow permanently to assure the performance healthy. || FEATURES || 1. Inbuilt Alarm features which can also be de-activated by user at any time & as required. 2. No current/Voltage is passed through Water, therefore No Electrolysis Salt Deposition. 3. Avoid overflow & dry running longer life no mechanical system. 4. Compact Steel (with powder coated) housing. || SPECIFICATIONS || 1.Operating voltage 220-250 volts ac. Frequency 50 hz. 2. Load Capacity up to 3 Hp, Single Phase. 3. Suitable for Submersible Pump-Motor (having START (GREEN) and STOP (RED) Button Type Starter Panel with Single/Multi Capacitors Panel). || PACKAGE CONTAINS || 1. Controller Unit: Fully automatic water level controller with indicator & Inbuilt alarm features for Submersible Pump Overhead Tank Only. 2. Sensor: Three (3) SS Sensor. 3. Installation Boucher/Warranty Card. Warranty: 1-year warranty. Warranty type: replace/service. ||| Thanks for to have healthy buying response |||
