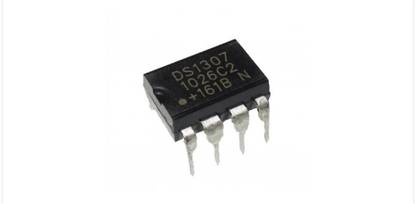

AEAAICO Real Time Clock DS1307 IC - (RTC) IC Electronic Components Electronic Hobby Kit

The DS1307 serial real-time clock (RTC) is a lowpower, full binary-coded decimal (BCD) clock/calendar plus 56 bytes of NV SRAM. Address and data are transferred serially through an I2 C, bidirectional bus. The clock/calendar provides seconds, minutes, hours, day, date, month, and year information. The end of the month date is automatically adjusted for months with fewer than 31 days, including corrections for leap year. The clock operates in either the 24-hour or 12- hour format with AM/PM indicator. The DS1307 has a built-in power-sense circuit that detects power failures and automatically switches to the backup supply. Timekeeping operation continues while the part operates from the backup supply. ABSOLUTE MAXIMUM RATINGS Voltage Range on Any Pin Relative to Ground ....................................................................................-0.5V to +7.0V Operating Temperature Range (Noncondensing) Commercial................................................................................................................................0°C to +70°C Industrial ..................................................................................................................................-40°C to +85°C Storage Temperature Range............................................................................................................. -55°C to +125°C Soldering Temperature (DIP, leads)........................................................................................+260°C for 10 seconds Soldering Temperature (surface mount)…..……………………….Refer to the JPC/JEDEC J-STD-020 Specification.
