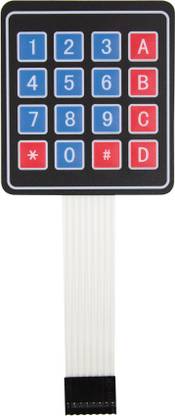

Aktronics 4 x 4 Matrix Array 16 Key Membrane Switch Keypad Keyboard for Arduino AVR PIC Electronic Components Electronic Hobby Kit

Price: Not Available

Currently Unavailable

Highlights

Power Source: DC
Material: Plastic
Weight: 0.2

Description

Extended keyboard for development board, can connect easily with cable. Maximum circuit rating: 35V DC, 100mA. Insulation resistance: 100M Ohm, 100V. Dielectric withstand: 250VRms, 50 - 60Hz, 1 min. Contact bounce: less than or equal to 5ms. Life expectancy: 1 million closures. Operating temperature: -20 to +40 °C. Operating humidity: 40°C, 90% ~ 95%. Connector type: 8 pin. Mount type: adhesive. Cable length (inc connector):88 mm. Size:77*69 mm

Specifications

In The Box

1 Piece 4 x 4 Matrix

General

brand	Aktronics
Model Number	4 x 4 Matrix Array 16 Key Membrane Switch Keypad Keyboard for Arduino AVR PIC
Type	Electronic Components
Minimum Age	12
ROHS Complaint	No
Material	Plastic

Dimensions

Width	7 cm
Height	1 cm
Weight	0.2

Power Features

Battery Type	NA
No Of Batteries	NA
Battery Size	NA
Power Source	DC
Other Power Features	NA
