Aktronics Pro Mini ATMEGA328P 5V 16MHz Development Board With FT232RL FTDI Mini USB to TTL Serial Converter Adapter 3.3V 5.5V and USB to Mini 5Pin Download Cable With 10Pcs F-F Jumper Wire Electronic Components Electronic Hobby Kit

Price: Not Available

Currently Unavailable

Highlights

Power Source: DC
Material: Brass
Weight: 50

Description

Features: Pro Mini ATMEGA328P 3.3V 8MHz Development Board: Main Chip: Atmega328P-AU. The bootloader is already installed in the board. Flash Memory: 32 KB of which 2 KB used by bootloader. 8MHz clock frequency. USB connection off board. Supports auto-reset. Max 150mA output. Over current protected. Support external power supply 3.3V. Size: 33mm*18mm*6mm. 14 digital input / output port: RX, TX, D2 ~ D13. 8 analog input ports: A0 ~ A7. 1 pair TTL level serial transceiver port: RX / TX. 6 PWM ports: D3, D5, D6, D9, D10, D11. FT232RL FTDI Mini USB to TTL Serial Converter Adapter: Chip: FT232RL, not genuine FTDI chip Support Win95/98/98se/ME/2000/XP/win7 32bit 64bit /Vsita/, Do not Support Win8 Draw out all signal port of FT232RL chip Pin definition: DTR, RXD, TX, VCC, CTS, GND RXD / TXD transceiver communication indicator Support both 3.3V and 5V With over current protection, using 500mA self-restore fuse Pitch: 2.54mm Size: 40 x 18mm (L x W) Interface: Mini USB

Specifications

In The Box

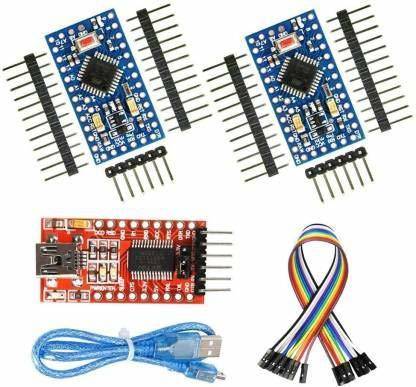

2pcs Pro Mini + 1pcs FT232RL + 1 USB to Mini 5Pin Download Cable + 10 Pcs F-F Jumper Wire

General

Brand	Aktronics
Model Number	Pro Mini ATMEGA328P 5V 16MHz Development Board With FT232RL FTDI Mini USB to TTL Serial Converter Adapter 3.3V 5.5V and USB to Mini 5Pin Download Cable With 10Pcs F-F Jumper Wire
Skillset	Sensory Development
Type	Electronic Components
ROHS Complaint	No
Material	Brass
Age Group	16+ Years
Key Features	Pro Mini -ATMEGA328P running at 5V/16MHz, maximum voltage on the RAW pin is 9V, recommended voltage 6-7V; Just connect to the On-Board micro-USB connector for programming., FT232RL Converter -Support both 3.3V and 5V; Pin Definition: DTR,RXD,TX,VCC,CTS,GND; RXD/TXD transceiver communication indicator; Support Win95/98/98se/ME/2000/XP/win7 32bit 64bit /Vsita/, Do not Support Win8., This Kit contains with 30cm USB to Mini 5Pin download cable and 20cm 10Pin jumper wires, which is convenient for you to connect, download programs and power the development board., Pay Attention-This adapter is not genuine FTDI chip because it's based on so cheap a price, so it will be automatically bricked by the latest FTDI drivers in Windows. The fix is to ensure that you use the older version of the FTDI drivers (2.8.3) on windows or use only with Linux or OS X. If it’s already bricked, please follow this link: http://electropit.com/index.php/2016/02/01/unbrick-your-non-genuine-ftdi-device-2016-january

Dimensions

Width	1.8 cm
Height	3.5 cm
Weight	50

Power Features

Battery Type	NA
No Of Batteries	NA
Battery Size	NA
Power Source	DC
Other Power Features	NA
