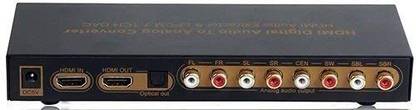

All mobile solution 4K HDMI Audio Extractor to HDMI 7.1 Audio Converter(AMS-CVT-0073) Media Streaming Device  (Black)

4K HDMI to HDMI Optical Digital to Analog Audio Extractor 7.1Ch Converter DAC 7.1Ch DTS Optical RCA Output. (AMS-CVT-0073) Product Information :- The converter enables you to connect your modern technology to your older technology. Like, a new HDMI blue ray DVD player to a surround system with RCA inputs and outputs. If you need to extract RCA/Analog from HDMI signal and also send video/pass-through to your Display this item is good for you. Example: you have an older receiver with only RCA Connections and it's a great. This HDMI to 7.1 Channel Audio Converter Can Help You to Synchronize Separate the HDMI Signal to the SPDIF Optical Digital Audio Output, While the LPCM Digital Audio Stream After an Internal High-quality Multi-channel DAC Converts Analog Audio Output to Your amp. Support 2CH / 5.1CH / 7.1CH other LPCM Digital Audio Signal is Converted. This is Work for Your DVD Player, Blu-ray Machines, Network Players, Set-top Boxes, PS4, PS3, Xbox one, Notebook PC and Many other Entertainment Devices use Docking. Our Devices offer Solutions for Noise, Space and Security Concerns, Data Center Control, Information Distribution, Conference Room Presentation, School and Corporate Training Environments. Important Note :- This is not decoder, It is converter. HDMI Audio Converter LPCM 7.1CH DAC :- How to use :- 1. Connect the DVD/BD HD Multimedia Interface HD output terminal to the HD Multimedia Interface input terminal of the converter via the HD Multimedia Interface cable. 2. Connect the HD Multimedia Interface output terminal of the converter to the HD Multimedia Interface input terminal of the TV/monitor through the HD Multimedia Interface cable. 3. When digital audio is needed, connect the optical output end of the converter to the optical input end of the power amplifier through an optical fiber cable. 4. When analog audio is needed, connect the multi-channel analog audio to the analog audio input end of the power amplifier through for RCA audio cable. Note that the channels correspond one to one. When connecting a TV or stereo amplifier, you only need to connect the FL/FR two channels, and select the audio mode switch to 2CH mode. 5. Finally, connect the DC head of the power adapter to the DC input end of the converter, and then insert the adapter plug into the power socket. HDMI resolution up to 4K/30Hz, 1080P/1080I/720P/576P/480P/60Hz Support video color format 24bit/deep color 30bit,36bit HDMI Audio FormatDTS-HD/Dolby-TrueHD/LPCM/DTS/Dolby-AC3/DSD Digital audio convert format LPCM, up to 7.1CH HDMI Max bandwidth 300MHz. HDMI Max baud rate 9Gbps HDMI input cable distance?15m AWG26 HDMI standard cable HDMI output cable distance?15m?1080P?/8m(4K) AWG26 HDMI standard cable Power adapter format Input AC 100V?240V 50HZ/60Hz, DC5V/1A Multi Mode Switch Details :- SWITCH: Audio output mode switch. Multi : Multi-channel audio Mode. Switch to this mode for the HDMI source to output 5.1/7.1 LPCM audio per the built-in EDID. Then RCA output 5.1/7.1CH analog audio, Optical Output 2 channel LPCM digital audio and HDMI output bypass. Note: Need support from source player and disc for multi-channel audio output. 2CH?2 channel stereo mode. Switch to 2CH mode for the HDMI source to output LPCM 2 Channels audio per the built-in EDID. Then RCA, Optical and HDMI output stereo audio. Mute : Mute Mode. Then RCA, Optical no output, HDMI output bypass. Product Interface :- 1 x HDMI input 1 x HDMI output 1 x SPDIF optical digital audio output Multi-channel RCA analog audio output LPCM audio format indicator DC5V power Input Connection Diagram :- Support multi-channel LPCM digital audio to analog output, up to 7.1CH Supports 3 modes for audio output. You can switch among multi-channel, stereo (2CH) and mute. High tone quality, low noise. Compatible Devices :- It can be connected to the high definition HDMI output terminals of many entertainment devices such as DVD players, Blu-ray players, network players, set-top boxes, PS2, PS3, Xbox360 and PC. Product Dimension :- Dimension (L x W x H) : 205x74x25 mm Weight : 360g. Package Included :- 1 x HDMI Audio Extractor 1 x Power adapter 1 x User manual. Widely Used :- Widely used in Various Occasion Like Home Theater, Electronic Shop, Live Shows, TV Shops, Home etc. Supports 12-bit Deep Color Full HD,3D and 4Kx2K video.
