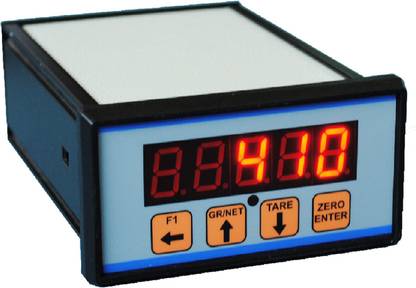

ALTIS Weight Indicator- 0-10V output Weighing Scale (Blue)

Price: Not Available

Currently Unavailable

Warranty

12 months warranty on manufacturing defects

Highlights

Counter with Analog Display
Measures in: kg, g
Material: Aluminium
Maximum Weighing Capacity: 50000 kg
Tare Function

Description

“Industrial Weight Indicator IW01” is a state of art indicator designed for various industrial applications like industrial automation, PLC integration, concrete batching plants etc. Miniature design gives it a compact look and make suitable for industrial control panels. 16-bit 4 to 20mA analog output corresponding to weight is provided in the form of linear current to drive PLC controllers for process control applications. Long distance transmission of weight data without any deterioration of signal can also be achieved by using analog output. Relay indication provided to show availability of 4-20 mA current output. 16-bit 0 to 10V analog output corresponding to weight is provided in the form of linear voltage to drive PLC controllers for process control applications. Relay indication provided to show availability of 0-10V voltage output.

Specifications

General

Sales Package	Indicator
Model Name	Weight Indicator- 0-10V output
Model Number	006
Color	Blue
Display	LED display
Display Size	1/2"
Other Display Features	Seven Segment 5 digit Red LED display to show weight
Number of Batteries	0
Other Power Features	SMPS design
Other Features	Panel design- 48x96mm

Dimensions

Width	29 cm
Height	22 cm
Depth	34 cm
Weight	1 kg

Warranty

Domestic Warranty	1 Year
Warranty Summary	12 months warranty on manufacturing defects
Warranty Service Type	need to send the product in our factory
Covered in Warranty	manufacturing defects
Not Covered in Warranty	damages due to electrical and lighting accidents and LCD is not covered in this warranty.
