amiciSolar Assembled Double Sided Printed Circuit Board
amiciSolar Assembled Double Sided Printed Circuit Board (Pack of ...more
Buy at ₹5,894
Apply offers for maximum savings
Apply offers for maximum savings!
Product highlights
Number of PCBs
1
Sales Package
1 Printed Circuit Board
Brand
amiciSolar
Model Number

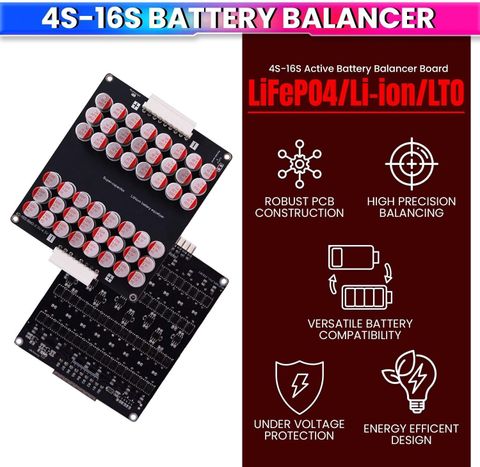

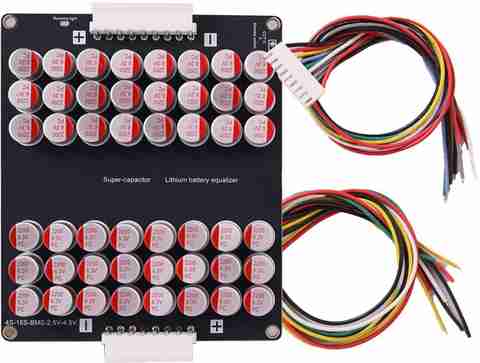

4S-16S Active Balancer | 5.5A Equalization Capacitor Board
Type
Assembled Double Sided
Used For
solar systems, E-bikes
Size
11 cm × 9.6 cm
Material
Silver Plated
All details
Features, description and more
Specifications
Description
Warranty
Manufacturer info
Show More
In the Box
Number of PCBs
1
Sales Package
1 Printed Circuit Board
General
Brand
amiciSolar
Model Number
4S-16S Active Balancer | 5.5A Equalization Capacitor Board
Type
Assembled Double Sided
Used For
solar systems, E-bikes
Size
11 cm × 9.6 cm
Material
Silver Plated
Coating
Conformal coating
Perforated
No
Mount Type
Through-hole Mounted
Net Quantity
1 PCB
Additional Features
Other Features

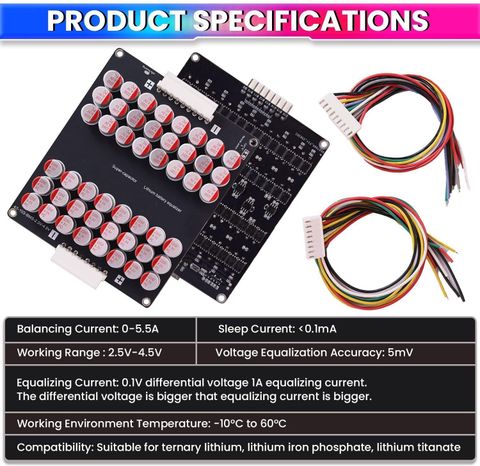

Undervoltage Protection, Energy Equalizer with 5mV Accuracy
Key Features
Supports 4S–16S battery packs, 5.5A Equalization Capacitor Board, Compatible with LiFePO4, Li-ion, LTO, Low power consumption with sleep mode, Wide temp range: -10°C to 60°C, 1-year warranty included, LFP LiFePO4, Lithium Li-ion Lipo, LTO Batteries, 5.5A fast balancing

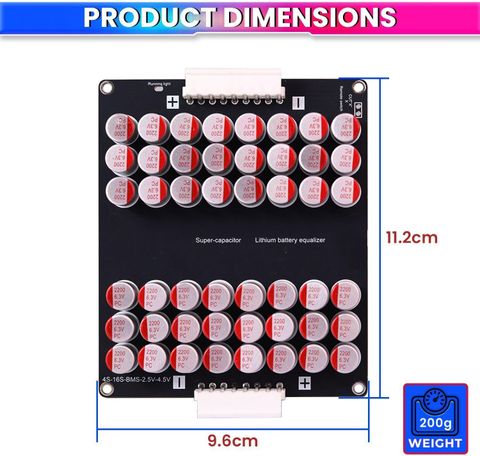

Dimensions
Width
9.6 cm
Weight
0.2 kg
Length
11.2 cm
Other Dimensions
16.5 x 13 x 3 cm; 195 g
See more

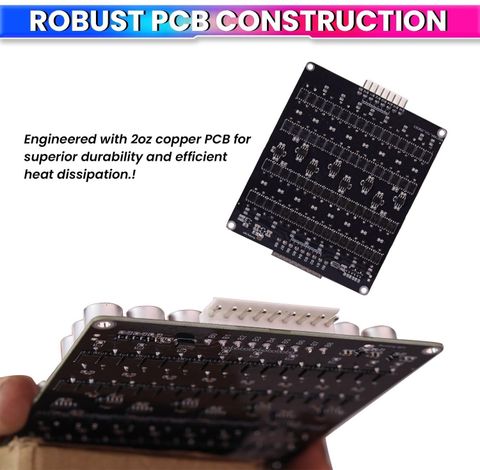

Why You Need It? – Maximize Battery Life & Safety: Prevents cell imbalance in multi-cell battery packs by actively equalizing voltage levels (up to 5.5A), reducing stress on individual cells, extending battery lifespan, improving overall performance, and minimizing the risk of overcharge or undercharge damage. High-Efficiency 5.5A Active Balancing -Achieve rapid energy equalization across 4S to 16S battery packs with dynamic current balancing from 0–5.5A. Greater voltage differences trigger stronger equalization for maximum efficiency. Ultra-Precise Voltage Balancing (≤5mV)- Maintains battery health with precision balancing accuracy within 5mV, ensuring long-term stability, optimal charging, and increased lifespan for your energy storage systems. Versatile Compatibility- Supports a wide range of battery chemistries including LiFePO4, ternary lithium, lithium-ion, and lithium titanate (LTO) — ideal for DIY solar energy storage, e-bikes, and power stations. Low Standby Consumption + Sleep Mode- Features a quiescent current of ~12mA and an ultra-low sleep current <0.1mA. Integrated sleep switch prevents unnecessary drain and boosts energy efficiency during idle periods. Durable PCB with Thermal Resilience Engineered with a robust 2OZ copper PCB for better heat dissipation and long-lasting reliability. Operates safely between -10°C to 60°C in diverse environmental conditions. Warranty:-The products come with 1 year warranty (To claim warranty feel free to contact amicikart).
See more
Warranty Summary
0
Covered in Warranty
Manufacturing Fault
Not Covered in Warranty
Physical Damage
Warranty Service Type
Contacting Amicikart Seller
Generic Name
printed Circuit Board
Country of Origin
China
Name and address of the Importer
Amici Import Export
