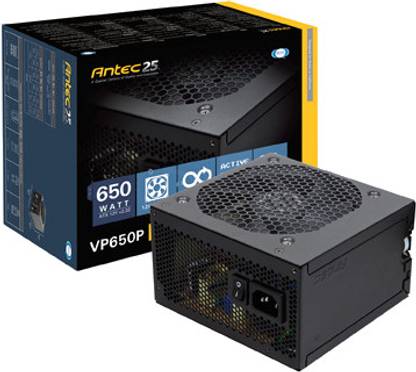

Antec VP650P 650 Watts PSU

Price: Not Available

Currently Unavailable

Warranty

Parts and Labor are Warranted for Two (2) Years from the Date of Purchase. Replacement Products will be Warranted for the Remainder of the Warranty Period or Thirty Days, whichever is Longer

Highlights

Power Output: 650 W
2 12V Power Rails
ATX 12V Version: 2.3
Number of Fans: 1

Specifications

In The Box

Sales Package

SMPS Unit, Cables, User Guide

General

Brand	Antec
Series	Basiq Series
Part Number	0-761345-23545-7
Power Output	650 W
ATX & EPS Version	ATX 12V v2.3
Power Rail	2 x 12V Power Rails
Model Name	VP650P

Power

Power Factor Correction (PFC)	Active PFC with Value of 0.99
Input Voltage 1	- 230 V
Input Current	-5 A
Input Frequency	47 - 63 Hz
Efficiency	85 %
Mean time between failures (MTBF)	1,00,000 hr

Maximum Current

Current at DC Output of +3.3 V	24 A
Current at DC Output of +5 V	24 A
Current at DC Output of +12 V	35 A
Current at DC Output of +V1 V	35 A
Current at DC Output of -12 V	0.5 A
Current at DC Output of +5 V sb	2.5 A

Features

Fan Type	1 x 120 mm Delivers Quiet, Reliable Cooling
Protection	Over Current Protection (OCP), Over Voltage Protection (OVP), Short Circuit Protection (SCP), Over Power Protection (OPP), Over Temperature Protection (OTP)
Safety Standards	CE, TUV, CB, C-Tick, CCC, Gost-R, KCC

Connectivity

Motherboard	1 Motherboard Connector with 20 + 4 pin
CPU	1 CPU Connector with 4 + 4 pin
PCI-e	2 PCI-e 6+2 pin
SATA	6 SATA Cables
Floppy	1 Floppy Connector with 4 pins

Other Features

Additional Features

ErP Lot 6: 2010 Compliant Assuring Efficiency and Low Standby Power Consumption

Dimensions

Width x Height x Depth	150 x 86 x 140 mm
Weight	1.9 kg

Warranty

Domestic Term	2 Years
Service Type	Carry In
Covered in Warranty	Manufacturing Defects
Not Covered in Warranty	Forceful Tampering, Burnt, Mishandling and Physical Damage
Warranty Type	Limited
Warranty Summary	Parts and Labor are Warranted for Two (2) Years from the Date of Purchase. Replacement Products will be Warranted for the Remainder of the Warranty Period or Thirty Days, whichever is Longer

Ratings & Reviews

4.2

★

17 Ratings &

2 Reviews

5★
4★
3★
2★
1★

Very Good PSU, Go for It.

Bought Corsair VS650 before this, but that started giving problem within 1st week, i have everything overlocked in my system(From Ram to Processor) as i'm a gamer and need every bit of juice from my system but Corsair just couldn't take the load, system constantly crashed even though the overlock was stable, had that replaced and bought this instead and let me tell you this is one is really really good.
It has been more that 2 month with this PSU and system never crashed once. This has two 35...

Gurpreet Singh

Certified Buyer, Chandigarh

May, 2014

Permalink

Report Abuse

cheapest 650? Go for it? Low-Noise levels? Not sure...

Hi All,

I was aiming at a calmest 650w within 6-7k range. Due to budget constraints settled for this which i got at 4.3k. I'm not at all happy with the noise-levels!! I'm not sure if corsair or coolermaster will be any better but this is definitely not what i want because 85% of the time, i only browse and i bought 650w only for occassional gaming which i might do in future. So even for those 85% of the times so far, this along with the CPU cooler are way too loud to my taste as this hampers...

Rakesh Battula

Nov, 2012

Permalink

Report Abuse
