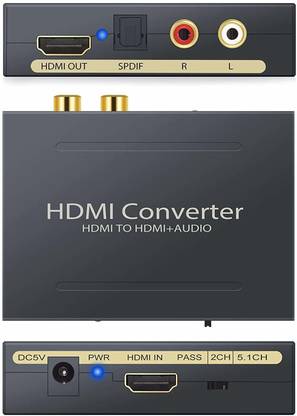

APLINK HDMI to HDMI and Audio (RCA Stereo or Spdif) Extractor Converter (Supports Apple TV, Fire TV and Blue-Ray Players) Media Streaming Device  (Black)

Features : 1. Easy to install 2. High quality and compatibility in Product Category 3. One HDMI input converted to one HDMI+ Audio (SPDIF+R/L) output 4. Output audio support: SPDIF+R/L analog Audio Output. 2.0CH/5.1 CH three kinds of audio mode options 5. Input Resolution: up to 1080P (50/60Hz)/2160(30Hz) 6. LED Indication 7. Power supply: DC 5V/1A. Specifications : 1. HDMI resolution: 24/50/60fs/1080p/1080i/720p/576p/1576i/480p/480i 2. Support video color format: 24bit/deep color 30bit,36bit 3. Audio output: L/R+SPDIF 4. Max bandwidth 225MHz 5. Max baud rate 6.75Gbps 6. Input/output TMDS signal 0.5~1.5Volts p-p(TTL) 7. Input/output DDC signal 5Volts p-p (TTL) 8. Input cable distance. ?15M AWG26 HDMI standard cable 9. Output cable distance ?20M AWG26 HDMI standard cable 10. Max working current: 500mA 11. Power adapter format Input: AC (50HZ/60HZ) 100V-240V; Output : DC5V/1A 12. Operating Temperature range (-15 to +55degree) 13. Operating Humidity range 5 to 90%RH (No Condensation) 14. Dimension: 84X61.8X21mm (L x W x H) Operating and Connecting: 1. To use one HDMI cable to connect the HD Source with the input HDMI port. 2. To connect the converter HDMI output port with the HD Display 3. To use one audio cable to connect the converter R/L port with the audio equipment. 4. To use the optical cable to connect the SPDIF port with the audio equipment. 5. To connect the converter with 5V DC power adaptor Package includes : 1 x HDMI Converter 1 x DC 5V Power Adapter 1 x User Manual.
