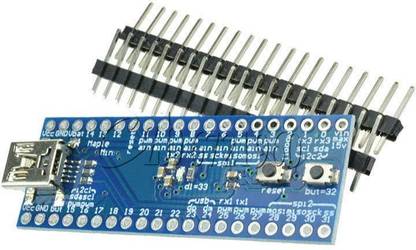

arduino M343 Mini USB STM32F103RCBT6 leaflabs Leaf maple mini ARM Cortex-M3 module Micro Controller Board Electronic Hobby Kit

Price: Not Available

Currently Unavailable

Highlights

Power Source: DC
RoHS Compliant
Material: Plastic
Weight: 30

Description

Maple Mini has a total of 34 input / output pins, numbered from D0 to D33. Maple Mini label on the screen corresponds to the port and its adjacent. D23 is the USB port D +, D24 is the USB D-. Such as their use as GPIO, Input Voltage (recommended): 3 V - 12 V 128 KB Flash and 20 KB SRAM

Specifications

In The Box

1x M343 Mini USB STM32F103RCBT6 leaflabs Leaf maple mini ARM Cortex-M3 module

General

Brand	arduino
Model Number	M343 Mini USB STM32F103RCBT6 leaflabs Leaf maple mini ARM Cortex-M3 module
Skillset	Creativity & Imagination
Type	Micro Controller Board
ROHS Complaint	Yes
Material	Plastic
Age Group	14-16 Years
Key Features	Processor: STM32F103RCBT6, 32 位 ARM Cortex-M3 processor Frequency: 72 MHz 128 KB Flash and 20 KB SRAM 34 digital io ports (GPIOs) 12 16-bit precision PWM port 9 12 precision analog input (ADC) port 2 SPI channel 2 I2C channel 7-channel direct memory access (DMA) (dma.h) 3 USART (serial) channel An enhanced and three general purpose timers Can be downloaded directly via the USB port and communications program An external JTAG Nested Vectored Interrupt Controller (NVIC) (including GPIOs on the external interrupt) Support for low-power, sleep and standard mode (<500> Operating Voltage: 3.3 V Input Voltage (recommended): 3 V - 12 V Size: 2.02 "× 0.72"

Dimensions

Width	3 cm
Height	8 cm
Weight	30

Power Features

Battery Type	NA
No Of Batteries	NA
Battery Size	NA
Power Source	DC
Other Power Features	NA
