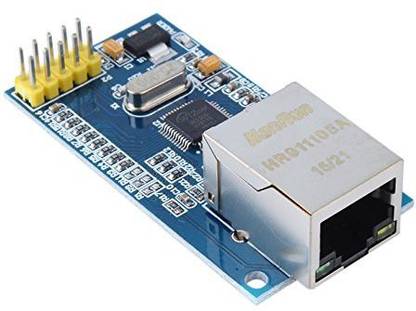

arduino M358 W5500 Ethernet Network Modules TCP/IP 51/STM32 SPI Interface Micro Controller Board Electronic Hobby Kit

Price: Not Available

Currently Unavailable

Highlights

Power Source: DC
RoHS Compliant
Material: Plastic
Weight: 20

Description

Supports Hardwired TCP/IP Protocols : TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE Supports 8 independent sockets simultaneously Supports Power down mode Supports Wake on LAN over UDP Supports High Speed Serial Peripheral Interfac(SPI MODE 0, 3) Internal 32Kbytes Memory for TX/RX Buffers 10BaseT/100BaseTX Ethernet PHY embedded Supports Auto Negotiation (Full and half duplex, 10 and 100-based ) Not supports IP Fragmentation 3.3V operation with 5V I/O signal tolerance LED outputs (Full/Half duplex, Link, Speed, Active) 48 Pin LQFP Lead-Free Package (7x7mm, 0.5mm pitch)

Specifications

In The Box

1x M358 W5500 Ethernet Network Modules TCP/IP 51/STM32 SPI Interface For Arduino

General

Brand	arduino
Model Number	M358 W5500 Ethernet Network Modules TCP/IP 51/STM32 SPI Interface
Skillset	Creativity & Imagination
Type	Micro Controller Board
ROHS Complaint	Yes
Material	Plastic
Age Group	14-16 Years
Key Features	Chip type: W5500 Supports both 3.3V & 5V. 10BaseT/100BaseTX Ethernet PHY embedded Network wake: support SPI interface (SPI MODE 0, 3),convenient connection with MCU

Dimensions

Width	3 cm
Height	7 cm
Weight	20

Power Features

Battery Type	NA
No Of Batteries	NA
Battery Size	NA
Power Source	DC
Other Power Features	NA
