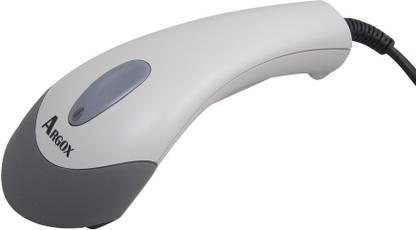

Argox AS-8000 Laser Barcode Scanner (Handheld)

The sleek new AS-8000 is the ideal scanner for retail applications. Its light-weight, easy-to-handle form factor makes scanning a breeze. Operation is intuitive, no warm up or waiting: Just point and scan! The AS-8000 reads all commonly used barcode symbologies from contact up to a distance of 125mm. Available in black or gray to match most retail systems, the AS-8000 offers easy plug and play installation. For all retail and similar applications, this little mid-range imager delivers unmatched cost / performance. ? Light Weight, Ergonomic Design ? Gerneral Purpose reader - a signle device?covering the broadest range of application ? Durable - without any moving parts to wear out?? 100 scans per second and working range from?contact to 150mm on medium density barcodes ? Excellent Scanning Performance starting at?0.1mm (4 mil) ? Readable Under Sun Light ? Reliability????(1) Trigger: 1,000,000 times???(2) Cable: 320,000 times (90?)???(3) Drop: 1.5 meter 3. Specifications Light source 660 nm visible red LED ? Optical system 2048 pixel CCD (charge-coupled device) ? Depth of scan field 150 mm (Code 39, 500Lux, PCS=90%, 20mils) ? Scanning width 95mm wide @ 55mm distance50mm wide @ 10mm ? Scan speed 100 scans/sec ? Current - sleep mode Nil ? Resolution 0.1mm(4mils) - Code 39, PCS=90 % ? Print contrast 45% or more ? Scanning angle Pitch: Max 60? ,Yaw: Max 70? ? Decode capability Autodiscriminates all standard onedimension barcodes; including GS1 databar ? Cable - universal type Nil Beeper operation 7 tones or no beep Indicator Green LED Length 176 mm Width-handle / Width-head / Depth-handle 30 mm Depth-head 40 mm Weight 90 g (cable not included) Cable - K/B wedge Straight 2.0 m Connector type Crimp type female connector Case material ABS plastic + TPR Operating temperature 0?C to 45?C (32?F to 113?F) Input voltage 5 VDC ? 0.25V Power - operating Max 250mA Power - standby 30 mA @ 5 VDC Current - operating MAx 250 mA @ 5 VDC Current - standby 30 mA @ 5 VDC Operating Temperature / DC transformers Class 2; 5VDC @ 500 mA Storage -20?C to 60?C (-4?F to 140?F) Humidity 10% to 90% relative humidity, non-condensing Light level Up to 20000 Lux Shock 1.5m drop onto concrete Programming method Manual (reading special barcode) Contaminants Sealed to resist airborne particulate contaminants Program upgrade N/A Programmable characteristics Code type selection, check digit selection decoding option transmitted character delay, header selection, trailer selection, message suffix, good read beep tone and volume, scanner trigger selection keyboard emulation type (intermessage delay, keyboard type and keyboard language).Serial interface type (ACK/NAK, Xon/Xoff, RTS/CTS, good read LED control, start/stop bits) Agency Listing CE, FCC, CCC, RoHS
