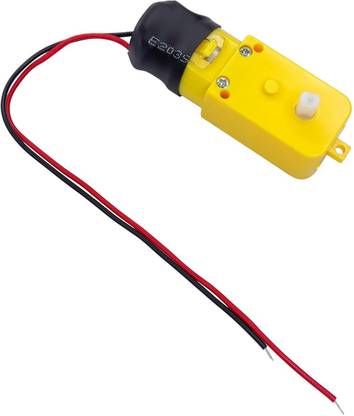

Dual shaft plastic gear motor dual shaft - bo series 1 gives torque and rpm at lower operating voltages, which is the biggest advantage of these motors. Small shaft with matching wheels give optimized design for your application or robot. Mounting holes on the body and light weight makes it suitable for in-circuit placement. This wheel can be coupled to bo type motors by coupling it.
Read More
Specifications
In The Box
1 electronic_hobby_kit
General
brand
Arkits
Model Number
BO MOTOR for robotic car pieces Motor Control Electronic Hobby Kit
Type
Motor Control
ROHS Complaint
Yes
Material
Aluminium
Net Quantity
1
Additional Features
Other Features
Shaft length:7 mm Motor Design:L-Shaped Shaft Diameter:5.5 mm Size:55x48x23 mm
Dimensions
Width
7 cm
Height
1.9 cm
Weight
0.1
Power Features
Battery Type
NA
No Of Batteries
NA
Battery Size
NA
Power Source
DC
Other Power Features
Reduction ratio: 1:48 3V load (r / min): 125 3V 66mm wheel-load speed of installation (m / min): 26 5V load (r / min): 208 Speed: Very Fast 5V load install 66mm wheel speed (m / min): 44 Torque: 0.8KG.Cm Wheel diameter: 65MM * 27MM Straight-axis motor slowdown Model: 1B48-1416LSD6 (integrated) 1:48 magnetic, with anti-jamming, high speed, high torque DC: 3-7.2V.
