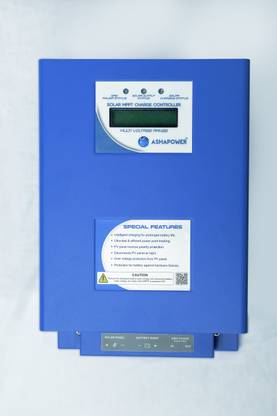

    ASHAPOWER 12/24/36/48V - 40A (40 (HV)) MPPT Solar Charge Controller

    ASHAPOWER 12/24/36/48V - 40A (40 (HV)) MPPT Solar Charge Controller

    Price: Not Available
    Currently Unavailable
    Specifications
    In The Box
    Sales Package
    • 1
    General
    Brand
    • ASHAPOWER
    Model Number
    • 12/24/36/48V - 40A (40 (HV))
    Type
    • MPPT
    Nominal Battery Voltage
    • 12/24/36/48 V
    Maximum Output Current
    • 40
    Maximum Input Power
    • 2000 W
    Charge Stage
    • 3
    Adjustable Regulation Voltage
    • Yes
    Load Control
    • Yes
    Dimensions
    Width
    • 21.5 cm
    Height
    • 31.8 cm
    Depth
    • 11.2 cm
    Weight
    • 3.8 kg
    Ratings & Reviews
    4.7
    ★
    3 Ratings &
    0 Reviews
    • 5★
    • 4★
    • 3★
    • 2★
    • 1★
    • 2
    • 1
    • 0
    • 0
    • 0
    Have you used this product? Be the first to review!
    Questions and Answers
    Q:Which MPPT I can connect 440volt 4 mono perk half cut panel
    A:If your battery bank is 48 v then you can purchase any one of this NEON40 HV or NEON60
    DELTAENERGYSOLUTIONS
    Flipkart Seller
    0
    0
    Report Abuse
    Q:ls it suitable for 445 wp (24v)X2 Panels and 12v 150ahX3 battery ?
    A:No sir, the maximum panel capacity of rhe machine is 500w at 12v battery system. May you can choose our another model "SURYA 60HV" It should support two panels of 445w at 12 V battery system.
    DELTAENERGYSOLUTIONS
    Flipkart Seller
    0
    1
    Report Abuse
    Q:Can i connect 300*3w pannel on 12v 200ah battery
    A:Sir, Maximum Panel limit with 12 V Battery is 500W.
    ASHAPOWER
    Flipkart Seller
    0
    1
    Report Abuse
    Q:Max Voc supported by this unit is?
    A:185 V
    ASHAPOWER
    Flipkart Seller
    0
    0
    Report Abuse
    Q:Sir can I connect 375 x4 in 24 v battery system in series
    A:Sir, you can't be connect 4 panels in series. But you should connect two sets of panels in series then the two sets are mutually connect in parallel.
    DELTAENERGYSOLUTIONS
    Flipkart Seller
    0
    0
    Report Abuse
    Q:Can i connect 24 volt 3 solar panels in series on 12 volt battery
    A:Sir, Maximum PV Panel limits with 12V battery system :120v/500w
    ASHAPOWER
    Flipkart Seller
    0
    1
    Report Abuse
    Q:can i connect 24v 375w*2 solar panel in series to charge 24v battery..
    A:Yes you can connect.
    ASHAPOWER
    Flipkart Seller
    1
    0
    Report Abuse
