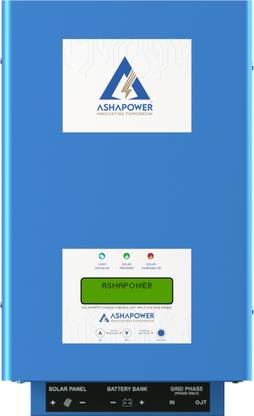

ASHAPOWER APOLLO 40 (MPPT SMU | 24/36/48/60/72 V | Auto Voltage) MPPT Solar Charge Controller

ASHAPOWER APOLLO 40 (MPPT SMU | 24/36/48/60/72 V | Auto Voltage) MPPT Solar Charge Controller

Price: Not Available
Currently Unavailable
Description
ASHAPOWER® APOLLO- 40 Solar MPPT Charge Controller can be used for charging 24V, 36V, 48V, 60V, and 72V batteries. The device detects and configures the battery bank automatically. It supports all types of solar panels(12V/24V) available in the market like Polycrystalline, Monocrystalline, Mono PERC or Half-Cut Mono PERC, etc. The high PV panel input Voc range will help you to connect more panels in series to make the installation easy and flexible. APOLLO- 40 is loaded with all unique features available on ASHAPOWER® Solar MPPT Charge Controllers like Initial Limited Ampere Charging, True 4 Stage Smart Charging (Bulk- Absorption- Float- Equalization), etc. It is supported for batteries like Lead-acid, VRLA, Gel type, and Lithium battery with good BMS and Active Balancer.
Read More
Specifications
In The Box
Sales Package
  • MPPT, USER MANUAL
General
Brand
  • ASHAPOWER
Model Number
  • APOLLO 40 (MPPT SMU | 24/36/48/60/72 V | Auto Voltage)
Type
  • MPPT
Nominal Battery Voltage
  • 24/36/48/60/72 V
Maximum Output Current
  • 40A
Maximum Input Power
  • 3200 W
Charge Stage
  • 4 STAGE:- BULK, ABSORPTION, FLOAT AND EQUALIZATION
Adjustable Regulation Voltage
  • Yes
Load Control
  • Yes
Dimensions
Width
  • 19 cm
Height
  • 32 cm
Depth
  • 11 cm
Weight
  • 3.4 kg
Questions and Answers
Q:Have auto Switch over in it
A:Yes. it have automatic operation mode.
DELTAENERGYSOLUTIONS
Flipkart Seller
1
0
Report Abuse
Q:Sir, Can I connect Shark 440watts,04 solar panels in 24v battery bank,each battery is c10, 200ah?
A:No sir, You can connect maximum panel capacity on this model is 1600w at 24V battery bank. But you can choose Another model of Ashapower that is NEON 80LV or NEON 80HV.
DELTAENERGYSOLUTIONS
Flipkart Seller
1
0
Report Abuse
Q:Is it suitable for 380 x 3 : 1100 watts panels which is connected 12 volt 200 Ah C5 tubular battery? Voc of each panel is 48.45 volt.
A:Sir, The Surya 60 LV model is designed for 800W maximum PV with12 v battery
ASHAPOWER
Flipkart Seller
2
0
Report Abuse
Q:Is it suitable for 180 x 6 : 1080 watts panels which is connected 12 volt 200 Ah C5 tubular battery? Voc of each panel is 21.00 volt.
A:No, this is surya 60 Lv model and suitable model for you needs is Surya 60Hv
DELTAENERGYSOLUTIONS
Flipkart Seller
0
0
Report Abuse
Q:Can I connect mono percent crystalline half cut blue bird 375 solar panels 3 nos to use with my 12 V 200ah Anton sine wave ups of 1000va?
A:Can't be able on this model but it can our another model that Surya60Hv.
DELTAENERGYSOLUTIONS
Flipkart Seller
0
0
Report Abuse
Q:Is it suitable for 380 x 3 : 1140 watts panels? Voc is 48.45 volt.
A:Yes, sir.
DELTAENERGYSOLUTIONS
Flipkart Seller
0
0
Report Abuse
