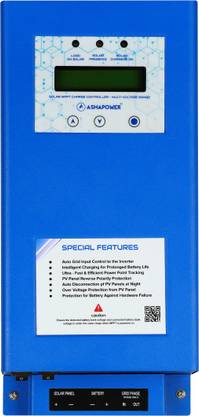

    ASHAPOWER NOVA 40(HV) MPPT Solar Charge Controller

    ASHAPOWER NOVA 40(HV) MPPT Solar Charge Controller

    Price: Not Available
    Currently Unavailable
    Highlights
    • 12/24V:40A,160V/1200W
    Description
    ASHAPOWER® SURYA-40-NOVA(HV) Solar MPPT Charge Controllers are multi voltage range devices with unique features. The same device can be used for battery banks ranging from 1 Battery (12V) up to a battery bank of 2 batteries (24V) in series. The battery voltage is selected by the device itself when we connect the battery bank across its terminal. The device gives a configurable charging current up to 40A.The Max PV panel input open circuit voltage up to 160V makes it easier to group the panels conveniently. Also, sleek & stylish design of the product gives a better aesthetic view so that you can wall mount the product in a visible place inside your home or office.
    Read More
    Specifications
    In The Box
    Sales Package
    • MPPT, USERMANUAL
    General
    Brand
    • ASHAPOWER
    Model Number
    • NOVA 40(HV)
    Type
    • MPPT
    Nominal Battery Voltage
    • 12/24V
    Maximum Output Current
    • 40A
    Maximum Input Power
    • 1198 W
    Charge Stage
    • BULK, ABSORPTION, FLOAT AND EQUALIZATION
    Adjustable Regulation Voltage
    • Yes
    Load Control
    • No
    Dimensions
    Width
    • 31 cm
    Height
    • 14.5 cm
    Depth
    • 10.5 cm
    Weight
    • 2.2 kg
    Ratings & Reviews
    3.9
    ★
    7 Ratings &
    1 Reviews
    • 5★
    • 4★
    • 3★
    • 2★
    • 1★
    • 3
    • 2
    • 1
    • 0
    • 1
    Questions and Answers
    Q:Can we use loom shark 440 watt panel with 12 volt battery
    A:Yes, you can.
    DELTAENERGYSOLUTIONS
    Flipkart Seller
    0
    0
    Report Abuse
    Q:Works with Lithium phosphate batteries?
    A:Sir, You can use with Lithium phosphate batteries, which have an inbuilt BMS. Other wise you have to setup an additional BMS.
    ASHAPOWER
    Flipkart Seller
    0
    0
    Report Abuse
    Q:12v 200ah battery in series 24v inverter panel 380 w two panel conneted series or parellel better
    A:Sir, Series connection preferred, assuming the Voc will be in the specified range.(50 to 160V). Machine will not charge 24V Battery system if the PV voltage goes down 50V.
    ASHAPOWER
    Flipkart Seller
    0
    0
    Report Abuse
    Q:Can we use 160wattpanel×4no=640watt with this controller?
    A:Yes sir you can connect 700 w in 12v battery system and 1200w in 24 V battery system
    DELTAENERGYSOLUTIONS
    Flipkart Seller
    0
    0
    Report Abuse
    Q:For 40A charge controller how much kW wil support,
    A:with single batter of 12 volt it supports 700 watt panel and with dual battery setup (24volt) it supports 1200 watt solar panel
    Diganta Mandal
    Certified Buyer
    0
    0
    Report Abuse
    Q:I have 100 watt 12 volt 5 panal and excid 900 va inverter and 150 ah 2 nos batteries pareral connect can I use ashapowar 40 hv controller sirij or parreral , can charge 2 batteries 100 watt 5 panal
    A:Yes sir you can use it by connecting 5 panels in series and 2 batteries in parallel.
    DELTAENERGYSOLUTIONS
    Flipkart Seller
    0
    0
    Report Abuse
