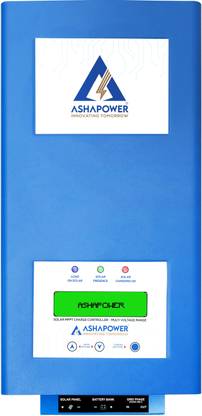

ASHAPOWER SURYA40LV-12/24V-40A MPPT Solar Charge Controller
Price: Not Available
Currently Unavailable
Highlights
12/24V Auto voltage
Voc: 140V
Ampere: 40A
Charging Status: Yes
Solar/Grid Status: Yes
Efficiency: 98.9%
4 Stage Charging
Version: 7.5
Description
ASHAPOWER SURYA 40 LV Vers.7.5 Solar MPPT Charge Controllers are multi voltage range devices with unique features. The same device can be used for battery banks ranging from 1 Battery (12V) up to a battery bank of 2 batteries (24V) in series. The battery voltage is selected by the device itself when we connect the battery bank across its terminal. The device gives a configurable charging current up to 40A.The Max PV panel input open circuit voltage up to 140V makes it easier to group the panels conveniently. Also, sleek & stylish designs of the product gives a better aesthetic view so that you can wall mount the product in a visible place inside your home office.
Read More
Specifications
In The Box
Sales Package
MPPT, and User Manual
General
Brand
ASHAPOWER
Model Number
SURYA40LV-12/24V-40A
Type
MPPT
Nominal Battery Voltage
12/24V (Auto Voltage Selection)
Maximum Output Current
40A
Maximum Input Power
1099 W
Charge Stage
4 stage Smart charging for prolonged battery life.
Adjustable Regulation Voltage
Yes
Load Control
Yes
Additional Features
Programmable Initial limited ampere charging and periodic or voltage controlled equalisation charging facility
Dimensions
Width
15 cm
Height
31 cm
Depth
11 cm
Weight
1 kg
Warranty
Covered in Warranty
Software and Hardware issue
Not Covered in Warranty
Physical Damages, and if warranty seal is broken
Questions and Answers
Q:can i use it with my old computer ups ?
A:It depends the ups present condition
Aashna Retail
Flipkart Seller
1
0
Report Abuse
Q:I have two battery one battery 145 ah and one 150ah, can I connect asha Power solar charge controller?
A:Better to use same ah of battery to avoide unbalanced charging
Aashna Retail
Flipkart Seller
0
0
Report Abuse
Q:24 watt panel with single battery
A:yes you can use we are depending only on the Voc of the panel
Aashna Retail
Flipkart Seller
0
0
Report Abuse
Q:can I connect 375 watt a solar panel with a 12 volt battery?
A:Yes. On 12v 150 Ah battery you can connect upto 700watts panels
Aashna Retail
Flipkart Seller
1
0
Report Abuse
Q:Can I connect 375 watt a solar panel with a 12 volt 150ah battery?
A:Yes. On 12v 150 Ah battery you can connect upto 700watts panels
Aashna Retail
Flipkart Seller
0
1
Report Abuse
Q:How long does it take to charge a 12 volt battery?
A:Solar charging depends on good sun light connected panel watts and charging amps. If we get 5 to 6 hours good sunlight and 25 to 30 amps current one 150 Ah battery can be fully charged
Aashna Retail
Flipkart Seller
0
1
Report Abuse
Q:Can i connect 375 watt 2 panel to charge 12 volt battery?
A:Yes, it can be connected
Aashna Retail
Flipkart Seller
0
0
Report Abuse
Q:Maximum Battery Capacity we can add to this charege controler, eg 300Ah 12 volt
A:No Ah limitation. If you connect higher Ah batteries it will take more time for full charging. So we recommend 100Ah to 150 Ah on this model for a good sunny day charging. (5to 6hour)
Aashna Retail
Flipkart Seller
0
0
Report Abuse
Q:Can i connect 400 watt 3 solar penal to Charing 12 Volt 300 Ah Battery
