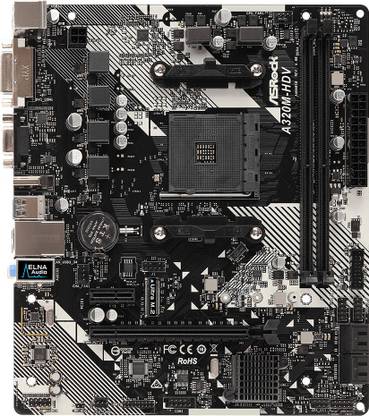

ASRock A320M-HDV R4.0 AM4Socket Micro-ATX AMD A85X Chipset DDR4 Motherboard for Desktop, Workstation, Server

Price: Not Available

Currently Unavailable

Warranty

3 Year Domestic (India) Limited Warranty.

Highlights

Specifications

Back Panel Ports

USB 2.0 Ports, Controller	2
USB 3.0 Ports, Controller	4
eSATA Ports, Controller	0
HDMI Ports	1
IEEE 1394a Ports	0
DVI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	3
Optical S/PDIF Ports and S/PDIF Out ports	0 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	1
PS/2	1

In The Box

Sales Package

Motherboard, Cables and Connectors, Quick Setup Guide, Driver CD/DVD, IO Plate (Metal)

General Features

Processor Clock Speed	0 GHz
Overclocking	CPU Dependent
Hardware Monitoring	CPU/Chassis temperature sensing, CPU/Chassis Fan Tachometer, CPU/Chassis Quiet Fan, CPU/Chassis Fan multi-speed control, CASE OPEN detection, Voltage monitoring: +12V, +5V, +3.3V, Vcore
Support CDs	Drivers
Bundled Software	NA
OS Support	Support for Windows® 10 64-bit, Support for Windows® 7 64-bit, To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU.
BIOS	AMI UEFI Legal BIOS with GUI support
Advanced Technologies	ASRock Super Alloy, High Density Glass Fabric PCB, Sapphire Black PCB, ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3), ASRock Full Spike Protection (for all USB, Audio, LAN Ports), ASRock Live Update & APP Shop
Advanced Features	AMD AM4 Socket, 2 DIMMs, Supports DDR4 3200+(OC), 1 PCIe 3.0 x16, 1 PCIe 2.0 x1, Graphics Output : HDMI, DVI-D, D-Sub, 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps, 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 6 USB 3.1 Gen1 (2 Front, 4 Rear), Realtek Gigabit LAN

Warranty

Domestic Warranty	3 Year
International Warranty	0 Months
Warranty Summary	3 Year Domestic (India) Limited Warranty.
Covered in Warranty	Manufacturing defects only by replacement or repair as per availability
Not Covered in Warranty	Accidents, fire, water or damage caused by repairs or upgrades attempted by any unauthorized person or other third-party accessories that are attached to the device. Any acts of nature or external forces are expressly not covered.
Warranty Service Type	Manufacturer Warranty from Respective Authorized Service Center

Memory

Number of Memory Slots	2 Slots
Memory Configuration	32 GB DDR4 Dual channel memory architecture DDR4 DIMM
Memory Frequency	DDR4 3200+(OC) / 2933(OC) / 2667/2400/2133 MHz
ECC Support	non-ECC mode
Buffered Memory	No

Limitations

To support Windows® 7 64-bit, you must install an AMD Pinnacle Ridge & Summit Ridge CPU

Dimensions

Dimensions	244 x 206 mm
Weight	771 g

Essentials

Form Factor	Micro-ATX
Socket Type	AM4
Compatible Processors	NA
FSB	0 MHz
Chipset	AMD A85X, NA
Chipset Manufacturer	Advanced Micro Devices, Inc. (AMD)

Graphics

Integrated Graphics card	As per CPU
External Graphics Card Support	Yes
Side Port Memory	64MB

Storage

Expansion Slots

General

Brand	ASRock
Series	R4.0
Model ID	A320M-HDV R4.0
Designed For	Desktop, Workstation, Server
Capacity	32 GB
Key Features	6 Power Phase design, Supports CPU up to 105W, AMD Promontory A320, Dual Channel DDR4 Memory Technology, 128Mb AMI UEFI Legal BIOS with GUI support, Shared memory default 2GB. Max Shared memory supports up to 16GB, 7.1 CH HD Audio (Realtek ALC887 Audio Codec), PCIE x1 Gigabit LAN 10/100/1000 Mb/s

Connectivity

Ethernet Controller	Realtek RTL8111H
Ethernet Card	Gigabit LAN 10/100/1000 Mb/s
Ethernet Features	Supports Wake-On-LAN, Supports Lightning/ESD Protection, Supports Energy Efficient Ethernet 802.3az, Supports PXE
Number of Printer Ports	0
Number of Com Ports	1
Wireless and Bluetooth	0 and 0

Audio

Audio Codec	Realtek ALC887 Audio Codec
Audio Channels	7.1
Audio Features	Supports Surge Protection, ELNA Audio Caps

Internal I/o Headers

SATA 1.5 Gb/s Headers	0
SATA 3 Gb/s Headers	0
SATA 6 Gb/s Headers	4
IEEE 1394a Headers	0
USB 2.0 Headers	2
USB 3.0 Headers	1
ATX Power Connectors	1 (4 Pin EATX), 1 (24 Pin ATX Power Connectors)
Fan Headers	1 (Processor Fan Headers), 2 (System Fan Headers)
Front Panel Headers	1
VGA/Dsub Connectors	0
