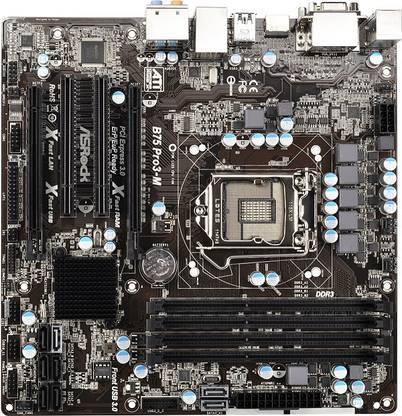

ASRock B75 Pro3-M Motherboard

ASRock B75 Pro3-M Motherboard

Price: Not Available
Currently Unavailable
Warranty
3 Years ASRock India Warranty and Free Transit Insurance
Highlights
  • Intel B75
  • Data Rate DDR3
  • Maximum RAM Capacity 32
  • Form Factor: Micro-ATX
Specifications
In The Box
Sales Package
  • Motherboard, Quick Installation Guide, Support CD, 1 x I/O Panel Shield
General
Brand
  • ASRock
Model ID
  • B75 Pro3-M
Essentials
Form Factor
  • Micro-ATX
Socket Type
  • LGA 1155
Compatible Processors
  • Intel 3rd Generation Core i3 Processor, Intel 2nd Generation Core i5 Processor, Intel 2nd Generation Core i7 Processor, Intel 3rd Generation Core i5 Processor, Intel Pentium Processor, Intel Xeon Processor, Intel 3rd Generation Core i7 Processor, Intel 2nd Generation Core i3 Processor, Intel Celeron Processor
Chipset
  • Intel B75
Chipset Manufacturer
  • Intel
Memory
Number of Memory Slots
  • 4 Slots
Memory Configuration
  • 32 DDR3 Dual Channel DIMM
Memory Frequency
  • 1066 MHz, 2200(OC) MHz, 1600 MHz, 1333 MHz
ECC Support
  • Non-ECC
Buffered Memory
  • Unbuffered
Storage
SATA 6 Gb/s
  • Intel B75, ASMedia ASM1061
Graphics
Integrated Graphics card
  • Yes
External Graphics Card Support
  • Yes
Multi GPU Support
  • Yes, Supports AMD Quad CrossFireX and CrossFireX
Audio
Audio Codec
  • Realtek ALC892
Audio Channels
  • 7.1
Audio Features
  • HD Audio with Content Protection, Premium Blu-ray Audio Support
Connectivity
Ethernet Controller
  • Realtek RTL8111E
Ethernet Features
  • 1 x PCIE Gigabit LAN 10/100/1000 Mb/s, Supports Wake-On-LAN, Energy Efficient Ethernet 802.3az, Supports PXE, Supports LAN Cable Detection
Expansion Slots
PCI Slots
  • 2
PCIe x16 Slots, Generation
  • 1, 3
Internal I/o Headers
SATA 6 Gb/s Headers
  • 3
USB 2.0 Headers
  • 2
USB 3.0 Headers
  • 1
ATX Power Connectors
  • 1 (24 Pin ATX Power Connectors)
Fan Headers
  • 2 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers
  • 1
Other Connectors
  • 1 x IR Header, 1 x Power Fan Connector, 1 x CIR Header, 1 x HDMI_SPDIF Header, 8 pin 12 V Power Connector
Back Panel Ports
USB 2.0 Ports, Controller
  • 4
USB 3.0 Ports, Controller
  • 2
HDMI Ports
  • 1
DVI Ports
  • 1
VGA/D Sub Ports
  • 1
Audio I/O Channels
  • 5
Optical S/PDIF Ports and S/PDIF Out ports
  • 1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks
  • 1
PS/2
  • 1
General Features
Hardware Monitoring
  • CPU Temperature Sensing, Chassis Temperature Sensing, CPU/Chassis/Power Fan Tachometer, CPU/Chassis Quiet Fan, CPU/Chassis Fan Multi-speed Control, Voltage Monitoring: +12 V, +5 V, +3.3 V, CPU Vcore
Support CDs
  • Drivers, Utilities
Bundled Software
  • CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite - OEM
OS Support
  • Windows: XP, 7, Vista
BIOS
  • 64 Mb AMI UEFI Legal BIOS with GUI Support, Supports Plug and Play, ACPI 1.1 Compliance Wake Up Events, Supports Jumperfree, SMBIOS 2.3.1 Support, CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment
Features
  • DirectX 11 with Intel Ivy Bridge CPU, Intel Quick Sync Video 2.0, 4 + 2 Power Phase Design, ErP/EuP Ready (ErP/EuP Ready Power Supply is Required), Pixel Shader 5.0, Intel InTru 3D, Supports Intel K-Series CPU, Pixel Shader 4.1, Supports HDCP Function, Supports Intel Extreme Memory Profile (XMP) 1.3/1.2, WHQL, Supports Intel Small Business Advantage, Intel Insider, CE, Certifications: FCC, DirectX 10.1 with Intel Sandy Bridge CPU
Advanced Technologies
  • Supports Intel Turbo Boost 2.0 Technology, Supports Hyper-Threading Technology, Supports Intel Rapid Start Technology, Smart Connect Technology with Intel Ivy Bridge CPU, Intel Clear Video HD Technology, ASRock On/Off Play Technology, XFast 555 Technology, ASRock OMG Technology, TrueTheater Technology
Advanced Features
  • Extreme Tuning Utility (AXTU), Instant Boot, Instant Flash, APP Charger, SmartView, XFast USB, XFast LAN, XFast RAM, Crashless BIOS, Internet Flash, Hybrid Booster: U-COP, Boot Failure Guard (B.F.G), Combo Cooler Option (C.C.O), Good Night LED
Limitations
  • Intel Rapid Start Technology and Smart Connect Technology are only Supported under Windows 7 OS or Later Versions, Due to the Operating System Limitation, The Actual Memory Size may be less than 4 GB for the Reservation for System Usage Under Windows 32-bit OS, For Windows 64-bit OS with 64-bit CPU, There is no such Limitation, DDR3 1600 with Intel Ivy Bridge CPU, DDR3 1333 with Intel Sandy Bridge CPU, Intel HD Graphics Built-in Visuals and the VGA Outputs can be Supported Only with Processors which are GPU Integrated, Due to Chipset Limitation, the Blu-ray Playback of Intel HD Graphics is Only Supported under Windows Vista and Windows 7, Intel InTru 3D is only Supported under Windows 7 and Windows 7 x64, PCIe Gen3 is Supported on 3rd Generation of Intel Core i5 and Core i7 CPUs
Dimensions
Dimensions
  • 244 x 244 mm
Warranty
Domestic Term
  • 3 Years ASRock India Warranty and Free Transit Insurance.
Warranty Summary
  • 3 Years ASRock India Warranty and Free Transit Insurance
Warranty Service Type
  • Carry In
Ratings & Reviews
4.4
9 Ratings &
1 Reviews
  • 5
  • 4
  • 3
  • 2
  • 1
  • 7
  • 1
  • 0
  • 0
  • 1
5

^ dont give false rating to a product due to its price on this site its site's fault not the product's.

this is the best best budget motherboard according to me. if you are not into overclocking anything in your pc example: ram,cpu or gpu this mobo is way to go then. i ain't gonna tell it got this it got that you can read the specs for that :P
i personally like asrock brand idk why. i own a asrock pro 3 z77 version and its really worth so those under a budget or need a business mobo this is it ;)
