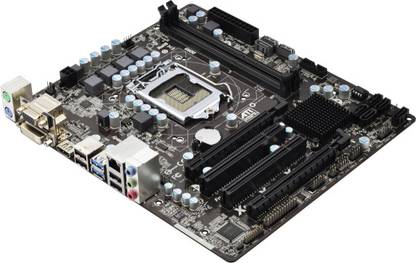

ASRock B75M R2.0 Motherboard

Price: Not Available

Currently Unavailable

Warranty

3 Years ASRock India Warranty and Free Transit Insurance

Highlights

Intel B75
Data Rate DDR3
Maximum RAM Capacity 16
Form Factor: Micro-ATX

Specifications

In The Box

Sales Package

Motherboard, Quick Installation Guide, Support CD, I/O Shield and SATA Cables, 4 x SATA Data Cables

General

Brand	ASRock
Model ID	B75M R2.0

Essentials

Form Factor	Micro-ATX
Socket Type	LGA 1155
Compatible Processors	Intel 3rd Generation Core i3 Processor, Intel 2nd Generation Core i5 Processor, Intel 2nd Generation Core i7 Processor, Intel 3rd Generation Core i5 Processor, Intel 3rd Generation Core i7 Processor, Intel 2nd Generation Core i3 Processor
Chipset	Intel B75
Chipset Manufacturer	Intel

Memory

Number of Memory Slots	2 Slots
Memory Configuration	16 DDR3 Dual Channel DIMM
Memory Frequency	1066 MHz, 2200 (O.C) MHz, 1600 MHz, 1333 MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Storage

SATA 6 Gb/s

Intel B75, ASMedia ASM1061

Graphics

Integrated Graphics card	Yes
External Graphics Card Support	Yes
Multi GPU Support	Yes, AMD Quad CrossFireX, CrossFireX

Audio

Audio Codec	Realtek ALC662
Audio Channels	5.1
Audio Features	High Definition Audio

Connectivity

Ethernet Controller	Realtek RTL8111E
Ethernet Features	PCIE x 1 Gigabit LAN 10/100/1000 Mb/s, Supports Wake-On-LAN, Supports PXE, Supports LAN Cable Detection, Supports Energy Efficient Ethernet 802.3az

Expansion Slots

PCI Slots	2
PCIe x16 Slots, Generation	1, 3

Internal I/o Headers

SATA 3 Gb/s Headers	5
SATA 6 Gb/s Headers	3
USB 2.0 Headers	2
USB 3.0 Headers	1
ATX Power Connectors	1 (24 Pin ATX Power Connectors)
Fan Headers	1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers	1
Other Connectors	4-pin 12 V Power Connector, 1 x IR Header, 1 x Power Fan Connector, 1 x CIR Header, 1 x Chassis Intrusion Header

Back Panel Ports

USB 2.0 Ports, Controller	4
USB 3.0 Ports, Controller	2
HDMI Ports	1
DVI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	3
RJ-45 Ethernet Jacks	1
PS/2	2
Other Ports	1 x DVI-D Port

General Features

Hardware Monitoring	CPU Temperature Sensing, Chassis Temperature Sensing, CPU/Chassis/Power Fan Tachometer, CPU/Chassis Quiet Fan, CPU/Chassis Fan Multi-Speed Control, CASE OPEN Detection, Voltage Monitoring: +12 V, +5 V, +3.3 V, CPU Vcore
Support CDs	Drivers, Utilities
Bundled Software	Anti-virus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite - OEM
OS Support	8 (64-bit), Windows: XP (64-bit), 7 (64-bit), Vista (64-bit)
BIOS	64 Mb AMI UEFI Legal BIOS with GUI Support, Supports Plug and Play, ACPI 1.1 Compliance Wake Up Events, Supports Jumperfree, SMBIOS 2.3.1 Support, CPU Core, IGPU, DRAM, 1.8 V PLL, VTT, VCCSA Voltage Multi-adjustment
Features	All Solid Capacitor Design, Supports Auto Lip Sync, ErP/EuP Ready, Certification: FCC, Next Gen PCI-E 3.0 Support, Multi VGA Output Options: D-Sub, Deep Color (12 bpc), Supports Intel Extreme Memory Profile (XMP) 1.3/1.2, Supports ASRock XFast 555, RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED), DVI-D and HDMI, Supports HDMI 1.4a Technology with Maximum Resolution Upto 1920 x 1200 60 Hz, Supports HDCP Function with DVI and HDMI Ports, xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI Monitor is Required), WHQL, Supports Full HD 1080p Blu-ray (BD)/HD-DVD Playback with DVI and HDMI Ports, Supports D-Sub with Maximum Resolution Upto 2048 x 1536 75 Hz, Supports DVI with Maximum Resolution Upto 1920 x 1200 60Hz, Supports Intel HD Graphics with Built-in Visuals, HD Audio Jack: Line in/Front Speaker/Microphone, CE
Advanced Technologies	Supports Intel Turbo Boost 2.0 Technology, Supports Hyper - Threading Technology, Supports Small Business Advantage, Supports Intel Rapid Start Technology and Smart Connect Technology, Supports HDMI 1.4a Technology
Advanced Features	ASRock Extreme Tuning Utility (AXTU), ASRock Instant Boot, ASRock Instant Flash, ASRock APP Charger, ASRock XFast USB, ASRock XFast LAN, ASRock XFast RAM, ASRock Crashless BIOS, ASRock OMG (Online Management Guard), ASRock Internet Flash, ASRock UEFI System Browser, ASRock Dehumidifier Function, Hybrid Booster: ASRock U-COP, Boot Failure Guard (B.F.G), Combo Cooler Option (C.C.O), Good Night LED

Limitations

Intel Rapid Start Technology and Smart Connect Technology are only supported under Windows 7 OS or later versions. Due to the operating system limitation, the actual memory size may be less than 4 GB for the reservation for system usage under Windows 32-bit OS, for Windows 64-bit OS with 64-bit CPU, there is no such limitation. Intel HD Graphics built-in visuals and the VGA outputs can be supported only with processors which are GPU integrated. Due to chipset limitation, the Blu-ray playback of Intel HD Graphics is only supported under Windows Vista and Windows 7. Intel InTru 3D is only supported under Windows 7 and Windows 7 x64. PCIe Gen3 is supported on 3rd generation of Intel Core i5 and Core i7 CPUs. Lucid Virtu Universal MVP can be supported only with processors which are GPU integrated. LucidLogix Virtu MVP only supports Windows 7 OS or later versions.

Dimensions

244 x 213 mm

Warranty

Domestic Term	3 Years ASRock India Warranty and Free Transit Insurance.
Warranty Summary	3 Years ASRock India Warranty and Free Transit Insurance
Covered in Warranty	Manufacturing Defects
Not Covered in Warranty	Forceful Tampering, Burnt, Mishandling and Pysical Damage
Warranty Service Type	Carry In
