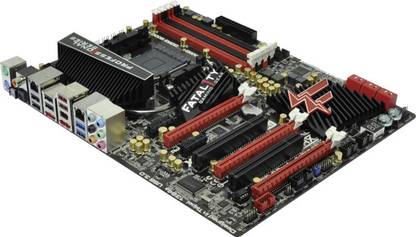

ASRock Fatal1ty 990FX Professional AM3Socket ATX AMD 990FX Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

Warranty

3 Years Domestic Warranty

Highlights

AMD 990FX
Data Rate DDR3
Maximum RAM Capacity 32
Form Factor: ATX

Specifications

In The Box

Sales Package

1 x ASRock SLI_Bridge_2S Card, Quick Installation Guide, Support CD, I/O Shield, 6 x SATA Data Cables, 2 x SATA 1 to 1 Power Cables, 1 x 3.5mm Audio Cable, 1 x Front USB 3.0 Panel, 4 x HDD Screws, 6 x Chassis Screws, 1 x Rear USB 3.0 Bracket

General

Brand	ASRock
Model ID	Fatal1ty 990FX Professional

Essentials

Form Factor	ATX
Socket Type	AM3
Compatible Processors	AM3 Processors: AMD Phenom II X2 Series Processor, AMD Phenom II X3 Series Processor, AMD Phenom II X4 Series Processor, AMD Phenom II X6 Series Processor, (Except 920/ 940), AMD Athlon II X2 Series Processor, AMD Athlon II X3 Processor, AMD Athlon II X4 Series Processor, AMD Sempron Processor, 8-Core CPU
FSB	2600 MHz
Chipset	AMD 990FX, AMD SB950
Chipset Manufacturer	AMD

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 DDR3 Dual Channel DIMM
Memory Frequency	1866 MHz, 1800 MHz, 1600 MHz, 1333 MHz, 1066 MHz, 800 MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Storage

RAID Configurations

0, 1, 0+1, 5, JBOD

Graphics

Multi GPU Support

Yes, AMD CrossFireX, AMD 3-Way CrossFireX, AMD Quad CrossFireX, NVIDIA SLI, NVIDIA Quad SLI

Audio

Audio Codec	Realtek ALC892
Audio Channels	7.1
Audio Features	Premium Blu-Ray Audio, THX TruStudio

Connectivity

Ethernet Controller	Broadcom BCM57781
Ethernet Features	10/100/1000 Mbps, Supports Wake-On-LAN, Supports PXE, Supports Energy Efficient Ethernet 802.3az, Supports Dual LAN with Teaming Function

Expansion Slots

PCI Slots	2
PCIe x1 Slots, Generation	2, 2
PCIe x16 Slots, Generation	3, 2

Internal I/o Headers

SATA 6 Gb/s Headers	6
USB 2.0 Headers	2
USB 3.0 Headers	2
ATX Power Connectors	1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
Fan Headers	2 (Processor Fan Headers), 2 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x IR Header, 1 x HDMI_SPDIF Header, 1 x Power LED Header, 1 x Power Fan Connector, 1 x Dr. Debug (7-Segment Debug LED), 1 x Clear CMOS Switch with LED, 1 x Power Switch with LED, 1 x Reset Switch with LED, HD Audio Jack: Side Speakers/ Rear Speaker/ Central/ Bass/ Line in/ Front Speaker/ Microphone, 1 x Coaxial SPDIF Out Port, 2 x eSATA3 Connectors, 1 x Fatal1ty Mouse Port (USB 2.0), Front Panel Audio Connector, 1 x HDMI_SPDIF Header

Back Panel Ports

USB 2.0 Ports, Controller	5
USB 3.0 Ports, Controller	2, Etron EJ168A
eSATA Ports, Controller	2
IEEE 1394a Ports	1
Audio I/O Channels	6
Optical S/PDIF Ports and S/PDIF Out ports	1 (S/PDIF Out Ports)
RJ-45 Ethernet Jacks	2
PS/2	2

General Features

Overclocking	Turbo 50 / Turbo 60 CPU Overclocking, Untied Overclocking Technology
Hardware Monitoring	CPU Temperature Sensing, Chassis Temperature Sensing, CPU/ Chassis/ Power Fan Tachometer, CPU Quiet Fan, CPU/ Chassis Fan Multi-speed Control, Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Support CDs	Drivers, Utilities, CyberLink MediaEspresso 6.5 Trial, AMD Fusion, AMD Fusion Media Explorer, ASRock Software Suite (CyberLink DVD Suite - OEM and Trial)
OS Support	Windows XP and Above
BIOS	32 MB AMI UEFI Legal BIOS with GUI Support, Supports Plug and Play, ACPI 1.1 Compliance Wake Up Events, Supports Jumperfree, SMBIOS 2.3.1 Support, CPU, VCCM, NB, SB, Voltage Multi-adjustment
Features	Digital PWM Power Design, V12+2 Power Phase Design, Japan Made High-quality Conductive Polymer Capacitors, Dual PCIE GLAN with Teaming Functions
Advanced Technologies	Hyper-Transport 3.0 (HT 3.0) Technolgy, AMD's Cool 'n' Quiet Technology, Fatal1ty XFast RAM, XFast LAN, XFast USB Technologies, ASRock On/Off Play Technology
Advanced Features	F-stream, ASRock Instant Boot, ASRock Instant Flash, ASRock APP Charger, ASRock SmartView, Hybrid Booster: CPU Frequency Stepless Control, ASRock U-COP, Boot Failure Guard (B.F.G.), Turbo UCC

Limitations

Due to Windows 32-bit Operating System Limitation When More than 4 GB of Physical Memory is Installed the Actual Memory Size Displayed will be Less than 4 GB, For Windows 64-bit OS with 64-bit CPU there is No Such Limitation

Dimensions

244 x 305 mm

Warranty

Domestic Term	3 Years ASRock India Warranty and Free Transit Insurance.
Warranty Summary	3 Years Domestic Warranty
Covered in Warranty	Manufacturing Defects are Covered
Not Covered in Warranty	Forceful Tampering, Burnt, Mishandling and Physical Damage
Warranty Service Type	Carry In
