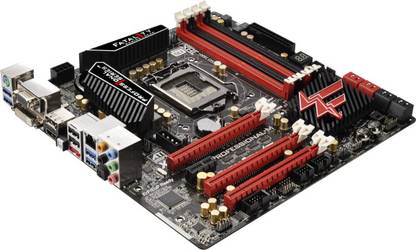

ASRock Fatal1ty Z77 Professional-M Motherboard

Price: Not Available

Currently Unavailable

Warranty

3 Years ASRock India Warranty and Free Transit Insurance

Highlights

Intel Z77
Data Rate DDR3
Maximum RAM Capacity 32
Form Factor: Micro-ATX

Specifications

In The Box

Sales Package

Motherboard, 1 x ASRock SLIBridge Card, Quick Installation Guide, Support CD, I/O Shield and 1 x SATA 1 to 1 Power Cable

General

Brand	ASRock
Model ID	Fatal1ty Z77 Professional-M

Essentials

Form Factor	Micro-ATX
Socket Type	LGA 1155
Compatible Processors	Intel 3rd Generation Core i3 Processor, Intel 2nd Generation Core i7 Processor, Intel 2nd Generation Core i5 Processor, Intel 3rd Generation Core i5 Processor, Intel 3rd Generation Core i7 Processor, Intel 2nd Generation Core i3 Processor
Chipset	Intel Z77
Chipset Manufacturer	Intel

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 DDR3 Dual Channel DIMM
Memory Frequency	1066 MHz, 2800 (O.C) MHz, 2133 (O.C) MHz, 1866 (O.C) MHz, 2400 (O.C) MHz, 1600 MHz, 1333 MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Storage

SATA 6 Gb/s	Intel Z77, ASMedia ASM1061
RAID Controller	Intel Z77
RAID Configurations	0, 1, 5, 10

Graphics

Integrated Graphics card	Yes
External Graphics Card Support	Yes
Multi GPU Support	Yes, AMD Quad CrossFireX, CrossFireX, 3-Way CrossFire, NVIDIA Quad SLI and SLI

Audio

Audio Codec	Realtek ALC898
Audio Channels	7.1
Audio Features	High Definition Audio with Content Protection, Premium Blu-ray Audio Support, Supports THX TruStudio

Connectivity

Ethernet Controller	Broadcom BCM57781
Ethernet Features	PCIE x 1 Gigabit LAN 10/100/1000 Mb/s, Supports Wake-On-LAN, Supports PXE, Supports Energy Efficient Ethernet 802.3az

Expansion Slots

PCIe x1 Slots, Generation	2, 1
PCIe x16 Slots, Generation	1, 3

Internal I/o Headers

SATA 3 Gb/s Headers	4
SATA 6 Gb/s Headers	4
USB 2.0 Headers	3
USB 3.0 Headers	1
ATX Power Connectors	1 (24 Pin ATX Power Connectors)
Fan Headers	2 (Processor Fan Headers), 2 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x Clear CMOS Switch with LED, 1 x Reset Switch with LED, 1 x Power LED Header, 1 x IR Header, 1 x Dr.Debug with LED, SLI/XFire Power Connector, 1 x CIR Header, 1 x Power Switch with LED, 1 x HDMI_SPDIF Header, 1 x Power Fan Connector (3-pin), 8 pin 12 V Power Connector

Back Panel Ports

USB 2.0 Ports, Controller	1
USB 3.0 Ports, Controller	4
eSATA Ports, Controller	1 (eSATA3)
HDMI Ports	1
DVI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	6
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	1
PS/2	1
Other Ports	1 x DisplayPort, 1 x DVI-D Port

General Features

Hardware Monitoring	CPU Temperature Sensing, Chassis Temperature Sensing, CPU/Chassis/Power Fan Tachometer, CPU/Chassis Quiet Fan, CPU/Chassis Fan Multi Speed Control, Voltage Monitoring: +12 V, +5 V, +3.3 V, CPU Vcore
Support CDs	Drivers, Utilities
Bundled Software	Anti-virus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite - OEM
OS Support	8 (64-bit), Windows: XP (64-bit), 7 (64-bit), Vista (64-bit)
BIOS	64 Mb AMI UEFI Legal BIOS with GUI Support, Supports Plug and Play, ACPI 1.1 Compliance Wake Up Events, Supports Jumperfree, SMBIOS 2.3.1 Support, CPU Core, IGPU, DRAM, 1.8 V PLL, VTT, VCCSA Voltage Multi-adjustment
Features	ErP/EuP Ready, Supports Auto Lip Sync, Supports Full HD 1080p Blu-ray (BD)/HD-DVD Playback with DVI, DVI-D, 1 x Fatal1ty Mouse Port (USB 2.0), Certification: FCC, Multi VGA Output Options: D-Sub, Deep Color (12 bpc), HDMI and Display Ports, Supports HDCP Function with DVI, Supports Display Port with Maximum Resolution Upto 2560 x 1600 60 Hz, Supports DVI with Maximum Resolution Upto 1920 x 1200 60 Hz, Supports Intel Extreme Memory Profile (XMP) 1.3/1.2, xvYCC and HBR (High Bit Rate Audio) with HDMI, Premium Gold Capacitor Design, WHQL, Supports D-Sub with Maximum Resolution Upto 2048 x 1536 75 Hz, HDMI and DisplayPort, CE, Digi Power Design, HD Audio Jack: Rear Speaker/Central/Bass/Line in/Front Speaker/Microphone, RJ-45 LAN Port with LED
Advanced Technologies	Supports XFast 555 Technology, Lucid Virtu Universal MVP Technology, Intel Smart Connect Technology, Intel Rapid Start Technology, Intel Smart Response Technology, No-K OC Technology, 8 + 3 Power Phase Design, Next Generation PCI-E 3.0 Support, THX TruStudio
Advanced Features	F-Stream, ASRock Instant Boot, ASRock Instant Flash, ASRock APP Charger, ASRock XFast USB, ASRock XFast LAN, ASRock XFast RAM, ASRock Crashless BIOS, ASRock OMG (Online Management Guard), ASRock Internet Flash, ASRock Dehumidifier Function, Lucid Virtu Universal MVP, Hybrid Booster: CPU Frequency Stepless Control, ASRock U-COP, Boot Failure Guard (B.F.G), Combo Cooler Option (C.C.O), Good Night LED

Limitations

Intel Rapid Start Technology and Smart Connect Technology are only supported under Windows 7 OS or later versions. Due to the operating system limitation, the actual memory size may be less than 4 GB for the reservation for system usage under Windows 32-bit OS, for Windows 64-bit OS with 64-bit CPU, there is no such limitation. Intel HD Graphics built-in visuals and the VGA outputs can be supported only with processors which are GPU integrated. Due to chipset limitation, the Blu-ray playback of Intel HD Graphics is only supported under Windows Vista and Windows 7. Intel InTru 3D is only supported under Windows 7 and Windows 7 x64. PCIe Gen3 is supported on 3rd generation of Intel Core i5 and Core i7 CPUs. Lucid Virtu Universal MVP can be supported only with processors which are GPU integrated. LucidLogix Virtu MVP only supports Windows 7 OS or later versions.

Dimensions

244 x 244 mm

Warranty

Domestic Term	3 Years ASRock India Warranty and Free Transit Insurance.
Warranty Summary	3 Years ASRock India Warranty and Free Transit Insurance
Covered in Warranty	Manufacturing Defects
Not Covered in Warranty	Forceful Tampering, Burnt, Mishandling and Pysical Damage
Warranty Service Type	Carry In
