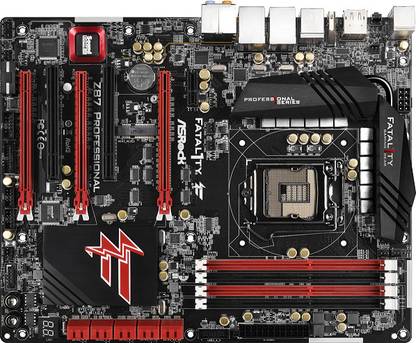

ASRock Fatal1ty Z87 Professional LGA 1150Socket ATX Intel Z87 Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

Warranty

3 Years Domestic Warranty

Highlights

Specifications

In The Box

Sales Package

Motherboard, Support CD1 x ASRock SLI_Bridge_2S Card, Quick Installation Guide, Support CD, I/O Shield, 8 x SATA Data Cables, 2 x SATA 1 to 1 Power Cables, 1 x Front USB 3.0 Panel with 2.5 inch HDD/SSD Rack, 4 x HDD Screws, 6 x Chassis Screws, 1 x Rear USB 3.0 Bracket, 1 x WiFi Module Screw

General

Brand	ASRock
Model ID	Fatal1ty Z87 Professional

Essentials

Form Factor	ATX
Socket Type	LGA 1150
Compatible Processors	E3-1245 v3, 4570T, G1820, Intel Core i3 Processors - 4340, Intel Celeron Processors - G1830, 4570S, G3220, 4330T, E3-1220L v3, 4770K, E3-1275L v3, E3-1240 v3, E3-1285 v3, 4430, 4130T, Intel Core i7 Processors - 4771, 4440S, E3-1265L v3, 4430S, 4330, G3420, 4770, E3-1280 v3, 4130, G3220T, Intel Core i5 Processors - 4670K, 4670, E3-1275 v3, 4570, G3420T, 4770S, Intel Pentium Processors - G3430, E-1270 v3, 4670S, E3-1230 v3, Intel Xeon Processors - E3-285L v3, 4440, 4770T, E3-1220 v3, E3-1225 v3, E3-1230L v3, 4765T
Chipset	Intel Z87
Chipset Manufacturer	Intel

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 DDR3 Dual Channel DIMM
Memory Frequency	1066 MHz, 2133(OC) MHz, 2933+(OC) MHz, 2800(OC) MHz, 2400(OC) MHz, 1600 MHz, 1333 MHz, 1866(OC) MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Storage

Graphics

Integrated Graphics card	Yes
External Graphics Card Support	Yes
Multi GPU Support	Yes, AMD 3-way CrossFireX, NVIDIA Quad SLI, AMD Quad CrossFireX, CrossFireX, SLI

Audio

Audio Channels	7.1
Audio Features	HD Audio, Creative Sound Core3D Quad-core Sound and Voice Processor, Supports SBX Pro Studio, Supports Crystal Voice, Supports Scout Mode, Supports EAX1.0 to EAX5.0, Premium Headset Amplifier (PHA)

Connectivity

Ethernet Controller	Intel I217V, Intel I211AT
Ethernet Features	Gigabit LAN 10/100/1000 Mb/s, Supports IntelRemote Wake Technology (On IntelI217 v), Supports Wake-On-LAN, Supports Dual LAN with Teaming, Supports Energy Efficient Ethernet 802.3az, PXE

Expansion Slots

Internal I/o Headers

SATA 6 Gb/s Headers	10
USB 2.0 Headers	2
USB 3.0 Headers	2
ATX Power Connectors	1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
Fan Headers	2 (Processor Fan Headers), 3 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x Reset Switch with LED, 1 x Power LED Header, 1 x IR Header, 1 x Dr. Debug with LED, 1 x SLI/XFire Power Connector, 1 x Power Switch with LED, 1 x SPDIF Out Connector, 1 x Power Fan Connector (3-pin)

Back Panel Ports

USB 2.0 Ports, Controller	3
USB 3.0 Ports, Controller	4, ASMedia Hub
eSATA Ports, Controller	ASMedia ASM1061, 1
HDMI Ports	2
Audio I/O Channels	5
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	2
PS/2	1
Other Ports	1 x Display Port, 1 x Clear CMOS Switch

General Features

Overclocking	Supports ASRock BCLK Full-range Overclocking
Hardware Monitoring	CPU/Chassis Temperature Sensing, CPU/Chassis/Power Fan Tachometer, CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-adjust by CPU Temperature), CPU/Chassis Fan Multi-speed Control, Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Support CDs	Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar, Start8 (30 Days Trial), MeshCentral, Splashtop Streamer, XSplit
Bundled Software	XSplit 3 Months Premium License, 1 x Front USB 3.0 Panel with 2.5 inch HDD/SSD Rack, 1 x Rear USB 3.0 Bracket
OS Support	Windows: 7, 8, 8.1
BIOS	2 x 64 Mb AMI UEFI Legal BIOS with Multilingual GUI Support (1 x Main BIOS and 1 x Backup BIOS), Supports Secure Backup UEFI Technology, ACPI 1.1 Compliance Wake Up Events, SMBIOS 2.3.1 Support, CPU, DRAM, PCH 1.05V, PCH 1.5V Voltage Multi-adjustment
Features	Intel HD Graphics 4400/4600, MPEG-2 Full HW Encode1, Intel Insider, Intel InTru 3D, Intel Clear Video HD Technology
Advanced Technologies	Supports Intel Turbo Boost 2.0 Technology, Supports Secure Back-up UEFI Technology, Scout Mode, Intel Clear Video HD Technology, Intel Rapid Storage Technology 12 and Intel Smart Response Technology

Warranty

Domestic Term	3 Years ASRock India Warranty and Free Transit Insurance.
Warranty Summary	3 Years Domestic Warranty
