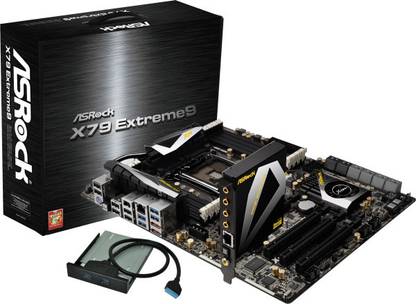

ASRock X79 Extreme9 LGA 2011Socket ATX Intel X79 Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

Warranty

Customer contacts Digicare for Warranty

Highlights

Intel X79
Data Rate DDR3
Maximum RAM Capacity 64
Form Factor: ATX

Specifications

General

Brand	ASRock
Model ID	X79 Extreme9

Essentials

Form Factor	ATX
Socket Type	LGA 2011
Compatible Processors	Intel Core i7 Processors
Chipset	Intel X79
Chipset Manufacturer	Intel

Memory

Number of Memory Slots	8 Slots
Memory Configuration	64 DDR3 Quad Channel DIMM
Memory Frequency	1066 MHz, 2133 (O.C) MHz, 1866 (O.C) MHz, 2400+ (O.C) MHz, 1600 MHz, 1333 MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Storage

SATA 6 Gb/s	Intel X79 Express Chipset, Marvell SE9220, Marvell SE9172
RAID Configurations	0, 1,5, 10

Graphics

Multi GPU Support

Yes, AMD 3-Way CrossFireX, NVIDIA 3-Way SLI

Audio

Audio Channels	7.1
Audio Features	Supported by the Bundled ASRock Game Blaster, Creative Sound Core3D Quad-core Sound and Voice Processor, Supports THX TruStudio PRO, Supports CrystalVoice, Supports EAX1.0 to EAX5.0

Connectivity

Ethernet Features

10/100/1000 Mbps, Supports Wake-On-LAN, Supports PXE

Expansion Slots

PCIe x1 Slots, Generation	1, 2
PCIe x16 Slots, Generation	5

Internal I/o Headers

SATA 3 Gb/s Headers	4
SATA 6 Gb/s Headers	8
USB 2.0 Headers	3
USB 3.0 Headers	2
ATX Power Connectors	1 (24 Pin ATX Power Connectors), 2 (8 Pin ATX 12V Power Connectors)
Fan Headers	1 (Processor Fan Headers), 1 (System Fan Headers)
Other Connectors	Power FAN Connector, 1 x Power LED Header, 1 x IR Header, 1 x Dr. Debug with LED, 1 x CIR Header, SLI/XFire Power Connector

Back Panel Ports

USB 2.0 Ports, Controller	6
USB 3.0 Ports, Controller	4
eSATA Ports, Controller	2
IEEE 1394a Ports	1
RJ-45 Ethernet Jacks	1
PS/2	1

General Features

Hardware Monitoring	CPU Temperature Sensing, Chassis Temperature Sensing, CPU/ Chassis/ Power/ SB Fan Tachometer, CPU/ Chassis Quiet Fan, CPU/ Chassis/ SB Fan Multi-speed Control, Voltage Monitoring: +12V, +5V, +3.3V, Vcore
Support CDs	Drivers, Utilities, CyberLink MediaEspresso 6.5 Trial, ASRock Software Suite (ASRock MAGIX Multimedia Suite - OEM)
Bundled Software	AntiVirus Software (Trial Version)
OS Support	Windows XP and Above
BIOS	64 MB AMI UEFI Legal BIOS with GUI Support, Supports Plug and Play, ACPI 1.1 Compliance Wake Up Events, Supports Jumperfree, SMBIOS 2.3.1 Support, CPU, VCCSA, DRAM, VTT, CPU PLL, PCH1.1V, PCH1.5V Voltage Multi-adjustment
Features	ASRock XFast USB, ASRock XFast RAM, ASRock SmartView, ASRock Crashless BIOS, ASRock Extreme Tuning Utility (AXTU), ASRock X-FAN, ASRock XFast Charger, ASRock Instant Boot, ASRock Instant Flash, ASRock APP Charger, ASRock XFast LAN
Advanced Technologies	Intel Turbo Boost 2.0 Technology, Hyper-Threading Technology, Untied Overclocking Technology, Supports Intel Extreme Memory Profile (XMP) 1.3 / 1.2
Advanced Features	Broadcom Dual LAN with Teaming Function, Quad Core Audio Processor (DSP), Premium Headset Amplifier (PHA), Premium Gold Caps, Unified Extensible Firmware Interface (UEFI)

Dimensions

244 x 305 mm

Warranty

Domestic Term	3 Years ASRock India Warranty and Free Transit Insurance.
Warranty Summary	Customer contacts Digicare for Warranty
Covered in Warranty	Manufacturing Defects are Covered
Not Covered in Warranty	Forceful Tampering, Burnt, Mishandling and Physical Damage
Warranty Service Type	Carry In

Ratings & Reviews

4.5

★

10 Ratings &

1 Reviews

5★
4★
3★
2★
1★

Awesome Motherboard for an LGA 2011 processor

Best in the category. Best for a someone who is a game enthusiast
My system has 5TB of internal Hard drive storage.
Processor is intel i7 LGA 2011 3.2GHz
Graphic Card - EVGA 660 Ti Super clocked
Cabinet is Cooler Master Trooper.
RAM - 16 Gig

Abilash SP

Certified Buyer

Oct, 2013
