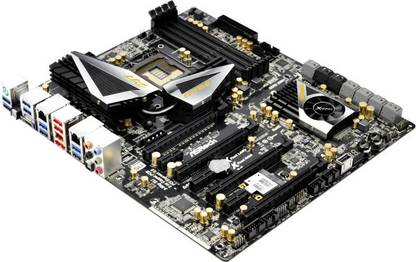

ASRock Z77 Extreme11 Motherboard

Price: Not Available

Currently Unavailable

Warranty

3 Years ASRock India Warranty and Free Transit Insurance

Highlights

Intel Z77
Data Rate DDR3
Maximum RAM Capacity 32
Form Factor: EATX

Specifications

In The Box

Sales Package

Motherboard, Quick Installation Guide, Support CD, 8 x Serial ATA (SATA) Data Cables, 2 x Serial ATA (SATA) HDD Power Cables, 1 x I/O Panel Shield, 1 x ASRock SLI Bridge-3S Card, 1 x ASRock 3-Way SLI Bridge Card, 1 x ASRock Wi-SB Box, 12 x Screws

General

Brand	ASRock
Model ID	Z77 Extreme11

Essentials

Form Factor	EATX
Socket Type	LGA 1155
Compatible Processors	Intel 3rd Generation Core i3 Processor, Intel 2nd Generation Core i5 Processor, Intel 2nd Generation Core i7 Processor, Intel 3rd Generation Core i5 Processor, Intel Pentium Processor, Intel Xeon Processor, Intel 3rd Generation Core i7 Processor, Intel 2nd Generation Core i3 Processor, Intel Celeron Processor
Chipset	Intel Z77
Chipset Manufacturer	Intel

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 DDR3 Dual Channel DIMM
Memory Frequency	1066 MHz, 2133(OC) MHz, 3000+(OC) MHz, 1600 MHz, 2400(OC) MHz, 1333 MHz, 1866(OC) MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Storage

SATA 6 Gb/s	Intel Z77
RAID Configurations	0, 1, 5, 10

Graphics

Integrated Graphics card	Yes
External Graphics Card Support	Yes
Multi GPU Support	Yes, AMD Quad CrossFireX, 4-way CrossFireX, 3-way CrossFireX, CrossFireX, NVIDIA Quad SLI, 3-way SLI, SLI

Audio

Audio Codec	Realtek ALC898
Audio Channels	7.1
Audio Features	HD Audio with Content Protection, Premium Blu-ray Audio Support

Connectivity

Ethernet Controller	Intel 82583V, Intel 82579V
Ethernet Features	Gigabit LAN 10/100/1000 Mb/s, Supports Wake-On-LAN, Supports Dual LAN with Teaming, PEX
Wireless and Bluetooth	Supports IEEE 802.11a/b/g/n, Support Dual-Band (2.4/5 GHz) and Bluetooth v4.0 Class II

Expansion Slots

PCIe x1 Slots, Generation	2, 3
PCIe x16 Slots, Generation	1, 3
Mini PCIe Slots	1

Internal I/o Headers

SATA 3 Gb/s Headers	4
SATA 6 Gb/s Headers	10
USB 2.0 Headers	3
USB 3.0 Headers	2
ATX Power Connectors	1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
Fan Headers	2 (Processor Fan Headers), 3 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x Reset Switch with LED, 1 x Power LED Header, 1 x Dr. Debug with LED, 1 x IR Header, 1 x SB Fan Connector (3-pin), 1 x CIR Header, SLI/XFire Power Connector, 1 x Power Switch with LED, 1 x Vertical Type A USB, 1 x Power Fan Connector (3-pin)

Back Panel Ports

USB 2.0 Ports, Controller	2
USB 3.0 Ports, Controller	Intel Z77, Etron EJ188, 8
eSATA Ports, Controller	1
HDMI Ports	1
IEEE 1394a Ports	1
Audio I/O Channels	5
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	2
PS/2	1

General Features

Hardware Monitoring	CPU/Chassis/SB Temperature Sensing, CPU/Chassis/Power/SB Fan Tachometer, CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-adjust by CPU Temperature), CPU/Chassis Fan Multi-speed Control, Voltage Monitoring: +12 V, +5 V, +3.3 V, CPU Vcore
Support CDs	Drivers, Utilities
Bundled Software	Anti-virus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar
OS Support	8 (64-bit), Windows: Vista (64-bit), 7 (64-bit)
BIOS	64 Mb AMI UEFI Legal BIOS with GUI Support, Supports Plug and Play, ACPI 1.1 Compliance Wake Up Events, Supports Jumperfree, SMBIOS 2.3.1 Support, CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment
Features	Supports Auto Lip Sync, Supports Intel K-series Unlocked CPU, Supports HDMI Technology with Maximum Resolution Upto 1920 x 1200 at 60 Hz, Supports HDCP Function with HDMI, ErP/EuP Ready (ErP/EuP Ready Power Supply is Required), Supports Full HD 1080p Blu-ray (BD) / HD-DVD Playback with HDMI, 2 oz Copper PCB, Dual Stack MOSFET, Supports ASRock XFast 555, Intel PCIE Dual Gigabit LAN with Teaming Function, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI, 8 + 4 Power Phase Design, WHQL, Premium Gold Capacitor Design (100% Japan-made High-quality Conductive Polymer Capacitors), CE, Digi Power Design, Certifications: FCC
Advanced Technologies	Supports Intel Trubo Boost 2.0 Technology, Supports Hyper-threading Technology, Supports Intel Rapid Start Technology and Smart Connect Technology, Intel Clear Video HD Technology, Intel Rapid Storage and Smart Response Technology
Advanced Features	ASRock Extreme Tuning Utility (AXTU), ASRock Instant Boot, ASRock Instant Flash, ASRock APP Charger, ASRock XFast USB, ASRock XFast LAN, ASRock XFast RAM, ASRock X-fan, ASRock Crashless BIOS, ASRock OMG (Online Management Guard), ASRock Internet Flash, ASRock UEFI System Browser, ASRock Dehumidifier Function, Lucid Virtu Universal MVP, ASRock Interactive UEFI, ASRock Easy RAID Installer, ASRock Fast Boot, ASRock Restart to UEFI, ASRock Interactive UEFI, Hybrid Booster: CPU Frequency Stepless Control, ASRock U-COP, Boot Failure Guard (B.F.G.), Good Night LED

Limitations

Intel Rapid Start Technology and Smart Connect Technology are Only Supported Under Windows 7 OS or Later Versions, Due to the Operating System Limitation, Actual Memory Size may be Less than 4 GB for the Reservation for System Usage Under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, There is no Such Limitation, Intel HD Graphics Built-in Visuals and the VGA Outputs can be Supported Only with Processors which are GPU Integrated, Due to Chipset Limitation, the Blu-ray Playback of Intel HD Graphics is Only Supported Under Windows Vista and Windows 7, Intel InTru 3D is Only Supported Under Windows 7 and Windows 7 x 64, Lucid Virtu Universal MVP can be Supported Only with Processors Which are GPU Integrated, LucidLogix Virtu MVP Only Supports Windows 7 OS or Later Versions

Dimensions

267 x 305 mm

Warranty

Domestic Term	3 Years ASRock India Warranty and Free Transit Insurance.
Warranty Summary	3 Years ASRock India Warranty and Free Transit Insurance
Covered in Warranty	Manufacturing Defects
Not Covered in Warranty	Forceful Tampering, Burnt, Mishandling and Pysical Damage
Warranty Service Type	Carry In
