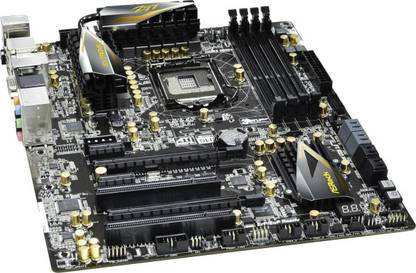

ASRock Z77 Extreme6/TB4 LGA 1155Socket ATX Intel Z77 Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

Warranty

3 Years ASRock India Warranty

Highlights

Intel Z77
Data Rate DDR3
Maximum RAM Capacity 32
Form Factor: ATX

Specifications

In The Box

Sales Package

1 x ASRock SLI Bridge 2S Card, Quick Installation Guide, Support CD, I/O Shield, 6 x SATA Data Cables, 4 x HDD Screws, 6 x Chassis Screws and 1 x Rear USB 3.0 Bracket

General

Brand	ASRock
Model ID	Z77 Extreme6/TB4

Essentials

Form Factor	ATX
Socket Type	LGA 1155
Compatible Processors	Intel Core i5 Processor, Intel Pentium Processor, Intel Core i3 Processor, Socket L1155: Intel Xeon Processor, Intel Core i7 Processor, Intel Celeron Processor
Chipset	Intel Z77
Chipset Manufacturer	Intel

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 DDR3 Dual Channel DIMM
Memory Frequency	1066 MHz, 2133 (O.C) MHz, 1866 (O.C) MHz, 2400 (O.C) MHz, 2800+ (O.C) MHz, 1600 MHz, 1333 MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Storage

SATA 6 Gb/s	Intel Z77 Chipset, ASMedia ASM1061
RAID Controller	Intel Z77 Chipset
RAID Configurations	0, 1, 5, 10

Graphics

Integrated Graphics card	Intel HD Graphics 2500, Intel HD Graphics 4000
Multi GPU Support	Yes, AMD Quad CrossFireX, CrossFireX, NVIDIA Quad SLI, SLI

Audio

Audio Codec	Realtek ALC898
Audio Channels	7.1
Audio Features	HD Audio with Content Protection, Supports THX TruStudio, Premium Blu-ray Audio Support

Connectivity

Ethernet Controller	Broadcom BCM57781
Ethernet Features	10/100/1000 Mbps, Supports Wake-On-LAN, Supports PXE, Supports Energy Efficient Ethernet 802.3az

Expansion Slots

PCI Slots	2
PCIe x1 Slots, Generation	2

Internal I/o Headers

SATA 3 Gb/s Headers	4
SATA 6 Gb/s Headers	4
USB 2.0 Headers	3
USB 3.0 Headers	1
ATX Power Connectors	1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
Fan Headers	2 (Processor Fan Headers), 3 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x Clear CMOS Switch with LED, 1 x Reset Switch with LED, 1 x Power LED Header, 1 x Dr. Debug with LED, 1 x IR Header, 1 x Power Fan Connector, 1 x CIR Header, SLI/XFire Power Connector, 1 x HDMI SPDIF Header

Back Panel Ports

USB 2.0 Ports, Controller	2
USB 3.0 Ports, Controller	Intel Z77 Chipset and 2, 2, ASMedia ASM1042
eSATA Ports, Controller	1
HDMI Ports	1
IEEE 1394a Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	5
Optical S/PDIF Ports and S/PDIF Out ports	1 (S/PDIF Out Ports)
RJ-45 Ethernet Jacks	1
PS/2	1

General Features

Hardware Monitoring	CPU Temperature Sensing, Chassis Temperature Sensing, CPU/ Chassis/ Power Fan Tachometer, CPU/ Chassis Quiet Fan (Allow Chassis Fan Speed Auto-adjust by CPU Temperature), CPU/ Chassis Fan Multi-speed Control, Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore
Support CDs	Drivers, Utilities, CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite, OEM, Google Chrome Browser and Toolbar
Bundled Software	CyberLink MediaEspresso 6.5 Trial, ASRock MAGIX Multimedia Suite, Google Chrome and Toolbar
OS Support	Windows XP and Above
BIOS	64 Mbit AMI UEFI Legal BIOS with GUI Support, Supports Plug and Play, ACPI 1.1 Compliance Wake Up Events, Supports Jumperfree, SMBIOS 2.3.1 Support, CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment
Features	Hybrid Booster: CPU Frequency Stepless Control, Boot Failure Guard (B.F.G), ASRock U-COP, Good Night LED
Advanced Technologies	Intel Turbo Boost 2.0 Technology, Intel K-Series Unlocked CPU, Hyper-Threading Technology, Intel Rapid Start Technology, Smart Connect Technology, Dual-Port Thunderbolt Technology
Advanced Features	ASRock Extreme Tuning Utility (AXTU), ASRock Instant Boot, ASRock Instant Flash, ASRock APP Charger, ASRock SmartView, ASRock XFast USB, ASRock XFast LAN, ASRock XFast RAM, ASRock Crashless BIOS, ASRock OMG (Online Management Guard), ASRock Internet Flash, ASRock UEFI System Browser, ASRock Dehumidifier Function, ASRock Fast Boot, Lucid Virtu Universal MVP, ASRock Restart to UEFI

Limitations

Due to the Operating System Limitation, The Actual Memory Size May be Less Than 4GB for The Reservation for System Usage Under Windows 32-bit OS. Due to Chipset Limitation, The Blu-ray Playback of Intel HD Graphics is Only Supported Under Windows Vista and Windows 7, Lucid Virtu Universal MVP can be Supported Only with Processors Which are GPU Integrated, LucidLogix Virtu MVP Only Supports Windows 7 OS or Later Versions, PCIe Gen3 is Supported on 3rd Generation of Intel Core i5 and Core i7 CPUs, Intel InTru 3D is Only Supported Under Windows 7 and Windows 7 x64, Intel Rapid Start Technology and Smart Connect Technology are Only Supported Under Windows 7 OS or later Versions

Warranty

Warranty Summary	3 Years ASRock India Warranty
Covered in Warranty	Manufacturing Defects
Not Covered in Warranty	Forceful Tampering, Burnt, Mishandling and Physical Damage
Warranty Service Type	Carry In

Ratings & Reviews

4.7

★

7 Ratings &

1 Reviews

5★
4★
3★
2★
1★

Good Board!

Works as expected though I feel Asus or Gigabyte Motherboards have better build quality and also a friendlier BIOS, motherboard just feels too thin. Positive thing is my P.C boots up in 5 - 8 seconds on Windows 8.1 Pro also X-Lan is a useful feature as it detected my Wi-fi usb dongle without installing drivers.....Overall a decent product and great packaging and delivery by Flipkart.

Ajinkya Pawar

Certified Buyer, Mumbai

Apr, 2014
