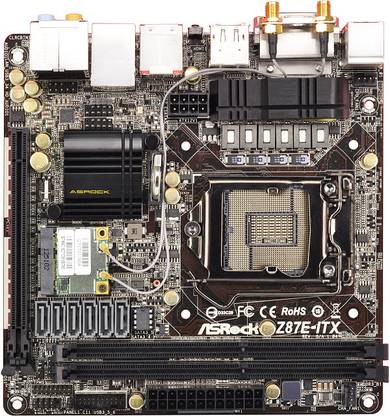

ASRock Z87E-ITX Motherboard

Price: Not Available

Currently Unavailable

Warranty

3 Years ASRock India Warranty and Free Transit Insurance

Highlights

Intel Z87
Data Rate DDR3
Maximum RAM Capacity 16
Form Factor: Mini-ITX

Specifications

In The Box

Sales Package

1 x ASRock SLI Bridge 2S Card, Quick Installation Guide, Support CD, I/O Shield, 2 x SATA Data Cables

General

Brand	ASRock
Model ID	Z87E-ITX

Essentials

Form Factor	Mini-ITX
Socket Type	LGA 1150
Compatible Processors	Intel Pentium Processor, Intel 4th Generation Ci7 Processor, Intel Celeron Processor, Intel 4th Generation Core i3 Processor, Intel 4th Generation Ci5 Processor, Intel Xeon Processor
Chipset	Intel Z87
Chipset Manufacturer	Intel

Memory

Number of Memory Slots	2 Slots
Memory Configuration	16 DDR3 Dual Channel DIMM
Memory Frequency	2133(OC) MHz, 1066 MHz, 1333 MHz, 1600 MHz, 1866(OC) MHz, 2800(OC) MHz, 2400(OC) MHz, 2933+(OC) MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Storage

SATA 6 Gb/s	Intel Z87
RAID Configurations	0, 1, 5, 10

Graphics

Integrated Graphics card

Audio

Audio Codec	Realtek ALC1150
Audio Channels	7.1
Audio Features	HD Audio with Content Protection, Supports DTS Connect, Premium Blu-ray Audio Support, TI NE5532 Premium Headset Amplifier

Connectivity

Ethernet Controller	Giga PHY Intel I217 V
Ethernet Features	Gigabit LAN 10/100/1000 Mb/s, Supports Wake-On-LAN, Supports Energy Efficient Ethernet 802.3az, Supports PXE
Wireless and Bluetooth	Supports IEEE 802.11a/b/g/n/ac, Supports Dual-band (2.4/5 GHz) and Bluetooth v4.0/ 3.0 + HS Class 2

Expansion Slots

PCIe x16 Slots, Generation	1, 3
Mini PCIe Slots	2

Internal I/o Headers

SATA 6 Gb/s Headers	6
USB 2.0 Headers	2
USB 3.0 Headers	1
ATX Power Connectors	1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
Fan Headers	1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x Chassis Intrusion Header

Back Panel Ports

USB 2.0 Ports, Controller	2
USB 3.0 Ports, Controller	4
eSATA Ports, Controller	1
HDMI Ports	1
DVI Ports	1
Audio I/O Channels	5
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	1
PS/2	1
Other Ports	1 x DVI-I Port, 1 x Display Port, 1 x Clear CMOS Switch

General Features

Overclocking	Supports ASRock BCLK Full-range Overclocking
Hardware Monitoring	CPU/Chassis Temperature Sensing, CPU/Chassis Tachometer, CPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature), CPU/Chassis Fan Multi-speed Control, CASE OPEN Detection, Voltage Monitoring: +12 V, +5 V, +3.3 V, CPU Vcore
Support CDs	Drivers, Utilities, Start8, MeshCentral, Splashtop Streamer
Bundled Software	Anti-virus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar
OS Support	8, Windows: 7
BIOS	64 Mb AMI UEFI Legal BIOS with Multilingual GUI Support, ACPI 1.1 Compliance Wake Up Events, SMBIOS 2.3.1 Support, CPU, DRAM, PCH 1.05 V, PCH 1.5 V Voltage Multi-adjustment
Features	6 Power Phase Design, DrMOS, Supports NCQ, Triple Monitor, A-Style: Home Cloud, DisplayPort, Dehumidifier, HDMI, 1 x mSATA/Full Mini-PCIe, Digi Power, AHCI and Hot Plug, Supports Intel K-Series Unlocked CPU, Supports Full HD 1080p Blu-ray (BD) Playback, ErP/EuP Ready, Clear CMOS Switch Port, 2 Antennas to Support 2 (Transmit) x 2 (Receive) Diversity Technology, WHQL, 802.11ac Wi-Fi, Multi-VGA Output Options: DVI-I, Premium Gold Capacitor Design, Supports Intel Extreme Memory Profile (XMP), Supports PXE, Certifications: FCC, CE
Advanced Technologies	Supports Intel Turbo Boost 2.0 Technology, Intel Clear Video HD Technology, Supports Intel Remote Wake Technology, Smart Response Technology, ASRock XFast 555 Technology, Fast Boot Technology, Intel Rapid Storage Technology 12, Intel Smart Response Technology, Restart to UEFI Technology, Supports Intel Remote Wake Technology
Advanced Features	ASRock A-Tuning, ASRock Instant Flash, ASRock APP Charger, ASRock XFast USB, ASRock XFast LAN, ASRock XFast RAM, ASRock Crashless BIOS, ASRock OMG (Online Management Guard), ASRock Internet Flash, ASRock UEFI System Browser, ASRock UEFI Tech Service, ASRock Dehumidifier Function, ASRock Easy RAID Installer, ASRock Easy Driver Installer, ASRock Interactive UEFI, ASRock USB Key, ASRock FAN-tastic Tuning, Good Night LED, Hybrid Booster: CPU Frequency Stepless Control, ASRock U-COP, Boot Failure Guard (B.F.G.)

Limitations

Intel HD Graphics Built-in Visuals and the VGA Outputs can be Supported Only with Processors which are GPU Integrated, ErP/EuP Ready Power Supply is Required

Warranty

Domestic Term	3 Years ASRock India Warranty and Free Transit Insurance.
Warranty Summary	3 Years ASRock India Warranty and Free Transit Insurance
Covered in Warranty	Manufacturing Defects
Not Covered in Warranty	Forceful Tampering, Burnt, Mishandling and Pysical Damage
Warranty Service Type	Carry In

Ratings & Reviews

4.4

★

5 Ratings &

1 Reviews

5★
4★
3★
2★
1★

best mini itx board

I have been trying to build a cm elite 130 based mini itx system, initially I was inclined toward FM2+ build but since none of the hardware is available (A10 7850k or mini itx board) so no point going after amd . After much hesitation went ahead for Intel based i5 build but good board are hard to come by and if they do price play a spoilsport this is the case with flipkart pricing day by day its price are becoming uncompetitive, same mobo is available for better price from other reputed itdep...

Nitin Prakash

May, 2014
