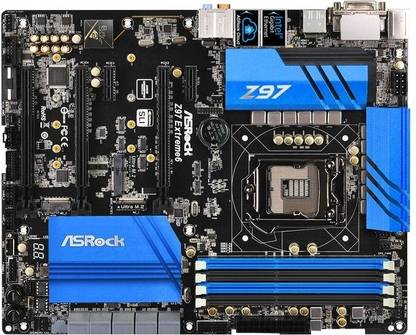

ASRock Z97 Extreme6 LGA 1150Socket ATX Intel Z97 Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

Warranty

3 Years Standard ASRock Warranty

Highlights

Intel Z97
Data Rate DDR3
Maximum RAM Capacity 32
Form Factor: ATX

Specifications

Back Panel Ports

USB 3.0 Ports, Controller	6
HDMI Ports	1
DVI Ports	1
Audio I/O Channels	5
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	2
PS/2	1
Other Ports	1 x Clear CMOS Switch, HD Audio Jacks: Rear Speaker, Central, Bass, Line in, Front Speaker, Microphone, 1 x Display Port 1.2

In The Box

Sales Package

Motherboard, Manuals

General Features

Overclocking	Supports ASRock BCLK Full-range Overclocking
Hardware Monitoring	CPU/Chassis Temperature Sensing, CPU/Chassis/Power Fan Tachometer, CPU/Chassis Quiet Fan (Auto Adjust Chassis Fan Speed by CPU Temperature), CPU/Chassis Fan Multi-speed Control, Voltage Monitoring: +12 V, +5 V, +3.3 V, CPU Input Voltage, CPU Internal Voltages
Support CDs	Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 Days Trial), Orbweb.ME Professional
OS Support	64-bit), 8.1 (32-bit, Microsoft Windows: 7, 8
BIOS	2 x 64 Mb AMI UEFI Legal BIOS with Multilingual GUI Support (1 x Main BIOS and 1 x Backup BIOS), Supports Secure Backup UEFI Technology, ACPI 1.1 Compliant Wake Up Events, SMBIOS 2.3.1 Support, CPU, DRAM, PCH 1.05 V, PCH 1.5 V Multi-adjustment, UEFI: ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock UEFI Guide, ASRock Instant Flash, ASRock Internet Flash, ASRock Crashless BIOS, ASRock OMG (Online Management Guard), ASRock UEFI System Browser, ASRock UEFI Tech Service, ASRock Dehumidifier, ASRock Easy RAID Installer, ASRock Easy Driver Installer
Features	ASRock XFast RAM, ErP/EuP Ready (ErP/EuP Ready Power Supply is Required), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI Monitor is Required), 12 Power Phase Design, ASRock Full Spike Protection, Intel Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel InTru 3D, AHCI, 15 Gold Contact in DIMM Slots, Display Port 1.2, Form Factor: High Density Glass Fabric PCB, ASRock Restart to UEFI, Intel Insider, Intel HD Graphics 4400 / 4600, CE, ASRock Disk Health Report, NCQ, Supports Triple Monitor, Supports Auto Lip Sync, ASRock USB Key, Maximum Shared Memory 1792 MB, ASRock APP Shop, Pixel Shader 5.0, Software: ASRock A-Tuning, Deep Color (12 bpc), 15 Gold Contact in VGA PCIe Slot (PCIE2), ASRock APP Charger, Supports Full HD 1080p Blu-ray (BD) Playback with DVI-I, ASRock HDD Saver Technology, DirectX 11.1, ASRock Cloud, HDMI and Display Port 1.2 Ports, Hot Plug, WHQL, ASRock Ultra M.2 (PCIe Gen3 x 4), Supports DVI-I with Maximum Resolution Upto 1920 x 1200 at 60 Hz, Intel Clear Video HD Technology, Certifications: FCC, ASRock Super Alloy, Supports HDCP with DVI-I HDMI and Display Port 1.2 Ports, ASRock XFast LAN
Advanced Technologies	Supports Intel Turbo Boost 2.0 Technology, Supports Intel K-Series Unlocked CPUs, Intel Rapid Storage Technology 13 and Intel Smart Response Technology
Advanced Features	Digi Power Design, Supports Intel Extreme Memory Profile (XMP) 1.3 / 1.2, Supports HDMI with Maximum Resolution Upto 4K x 2K (4096 x 2304) at 24 Hz, Supports Display Port 1.2 with Maximum Resolution Upto 4K x 2K (4096 x 2304) at 24 Hz or 4K x 2K (3840 x 2160) at 60 Hz

Warranty

Domestic Term	3 Years ASRock India Warranty and Free Transit Insurance.
Warranty Summary	3 Years Standard ASRock Warranty

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 DDR3 Dual Channel DIMM
Memory Frequency	1066 MHz, 2133 (OC) MHz, 1866 (OC) MHz, 2800 (OC) MHz, 2933 (OC) MHz, 1600 MHz, 3200+ (OC) MHz, 1333 MHz, 2400 (OC) MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Essentials

Form Factor	ATX
Socket Type	LGA 1150
Compatible Processors	Intel New 4th Generation Core i7 Processor, Intel 4th Generation Xeon Processor, Intel 4th Generation Core i5 Processor, Intel New 4th Generation Xeon Processor, Intel Pentium Processor, Intel New 4th Generation Core i3 Processor, Intel New 4th Generation Core i5 Processor, Intel 5th Generation Core i5 Processor, Intel 4th Generation Core i3 Processor, Intel 5th Generation Core i3 Processor, Intel 5th Generation Core i7 Processor, Intel Celeron Processor, Intel 4th Generation Core i7 Processor
Chipset	Intel Z97
Chipset Manufacturer	Intel

Graphics

Integrated Graphics card	Yes
Multi GPU Support	Supports AMD Quad CrossFireX and CrossFireX, Supports NVIDIA Quad SLI and SLI

Storage

RAID Controller	Intel Z97
RAID Configurations	0, 1, 5, 10

Expansion Slots

PCIe x1 Slots, Generation	2
PCIe x16 Slots, Generation	2
Mini PCIe Slots	1

General

Brand	ASRock
Series	Black & Blue
Model ID	Z97 Extreme6
Key Features	ATX Form Factor, Intel Z97 Chipset, Maximum 32 GB DDR3, LGA 1150 Socket Type, 4 Memory Slots, Dual Channel Memory

Connectivity

Ethernet Controller	Intel I218 V, Realtek RTL8111GR
Ethernet Features	1 x Gigabit LAN Controller 10/100/1000 Mbps, PCIE x 1 Gigabit LAN 10/100/1000 Mbps, Supports Intel Remote Wake Technology (on Intel I218 V), Supports Wake-On-WAN (on Realtek RTL8111GR), Supports Wake-On-LAN, Supports Lightning / ESD Protection (ASRock Full Spike Protection), Supports LAN Cable Detection (on Realtek RTL8111GR), Supports Energy Efficient Ethernet 802.3az, Supports PXE
Number of Com Ports	1

Audio

Audio Codec	Realtek ALC1150
Audio Channels	7.1
Audio Features	High Definition Audio with Content Protection, Premium Blu-ray Audio Support, Supports Surge Protection (ASRock Full Spike Protection), Supports Purity Sound 2, Nichicon Fine Gold Series Audio Caps, 115 dB SNR DAC with Differential Amplifier, TI NE5532 Premium Headset Amplifier (Supports Upto 600 ohm Headsets), Direct Drive Technology, EMI Shielding Cover, PCB Isolate Shielding, Supports DTS Connect

Internal I/o Headers

SATA 6 Gb/s Headers	3
USB 2.0 Headers	3
USB 3.0 Headers	2
ATX Power Connectors	1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
Fan Headers	2 (Processor Fan Headers), 3 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x Reset Switch with LED, 1 x 3-pin), 1 x Power LED Header, 1 x Thunderbolt AIC Connector, 2 x 3-pin), 1 x Vertical Type A USB 2.0, 1 x eSATA Connector, 1 x Power Switch with LED, 1 x BIOS Selection Switch, 1 x eSATA Connector by ASMedia ASM1061, 1 x Ultra M.2 Socket (M2_1), 1 x M.2_SSD (NGFF) Socket 3 (M2_2), Chassis Fan Connectors (1 x 4-pin, 1 x Dr. Debug with LED, 1 x PCIe Power Connector, CPU Fan Connectors (1 x 4-pin, 1 x SATA Express 10 Gb/s Connector, 1 x HDD Saver Connector, 1 x Power Fan Connector (3-pin)

Ratings & Reviews

★

1 Ratings &

1 Reviews

5★
4★
3★
2★
1★

As Extreme - As Rock - As Motherboard

This is my first purchase of a motherboard through flipkart.
(Previously Used - Msi z97 Gaming 7, Asus M5A99X Pro 2.0)

(AsRock Motherboard Service Centre - Digicare)

Note :- Their is no fancy LED lights on motherboard itself (Except Bios, Debug, Power, Reset LED)

Cons :-
1 - Front USB 3 headers are not right angled
2 - AsRock software are not well developed.

Pros :-
1 - Ultra M.2, M.2, Sata Express all 3 in one motherboard
2 - 2 Front Usb 3, Dual Bios, Debug LED, Dual Ethernet LAN Port

N...

Kumar Kundan

Certified Buyer, Barrackpore

Jul, 2015
