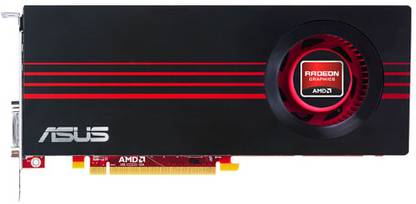

ASUS Radeon HD 6870 GDDR5 1 GB AMD/ATI Chipset 256 bit 915 MHz Graphics Card

Price: Not Available

Currently Unavailable

Asus guarantees that the Asus Device that you have purchased are free from defects in materials or workmanship under normal use during the Limited Warranty Period. The Limited Warranty Period starts from the date of purchase. Your sales receipt, showing the date of purchase, is the proof of your purchase date. You may be required by your Purchase Site or Asus Authorized Networking products to present the proof of purchase as a condition of receiving warranty service. You are entitled to a hardware warranty service if a repair is required within the Limited Warranty Period.Know More

Highlights

915 MHzClock Speed
Chipset: AMD/ATI
BUS Standard: PCI Express 2.1
Graphics Engine: Radeon HD 6870
Memory Interface 256 bit

Important Note

The packaging of this product may vary from what is shown in the image.

Specifications

General

Brand	ASUS
Graphics Engine	AMD/ATI Radeon HD 6870
GPU Clock	915 MHz
Shader	Shader Version 5 with Clock speed of 900 MHz
Processors and Cores	1120 Stream Processor, 1120 Shader Processors
RAMDAC Clock Speed	400 MHz
GPU Manufacturing Process	40 nm
Bus Standard	PCI Express 2.1
Cooling and Heatsink	Fan: 1
Model ID	Radeon HD 6870

Memory

Memory	256-bit, 1 GB GDDR5 Memory with 1050 MHz
Memory Bandwidth	134.4 GB/sec

Display

Maximum Resolution

2560 x 1600 (Digital), 2048 x 1536 (Analog)

Technologies Supported

Graphics Technologies Supported	Microsoft DirectX v11, Open GL Optimization v4.1, AMD CrossFireX supported
3D Support	Yes support

Connectivity

VGA/D-SUB Output	1xVGA DSub Output
DVI and HDMI Interface	2 x DVI Output Out, Yes x Dual Link DVI Out, 1 x HDMI Output Out
Other Interface	2 x Display Port Out
HD Content Support	HDCP Support

System Requirements

Other System Requirements

Minimum 1GB of system memory, CD-ROM drive

Dimensions

127 x 241.2 mm

Other Features

Additional Features

AMD HD3D Technology, AMD Eyefinity Technology

Warranty

Warranty Type	Limited - Part and Labour are covered
Warranty Summary	Asus guarantees that the Asus Device that you have purchased are free from defects in materials or workmanship under normal use during the Limited Warranty Period. The Limited Warranty Period starts from the date of purchase. Your sales receipt, showing the date of purchase, is the proof of your purchase date. You may be required by your Purchase Site or Asus Authorized Networking products to present the proof of purchase as a condition of receiving warranty service. You are entitled to a hardware warranty service if a repair is required within the Limited Warranty Period.
Covered in Warranty	During the Limited Warranty Period, Asus will, at its sole discretion, repair or replace any defective component. All spare-parts or module removed under this Limited Warranty become the property of Asus.
Not Covered in Warranty	Warranty invalid if damage/dysfunction caused by improper handling/usage, destruction. Warranty invalid if serial label is removed, broken. Warranty invalid if disassembly by end-user or non-ASUS-authorized repair centers.
Service Type	Carry in
Domestic Term	3 Years
