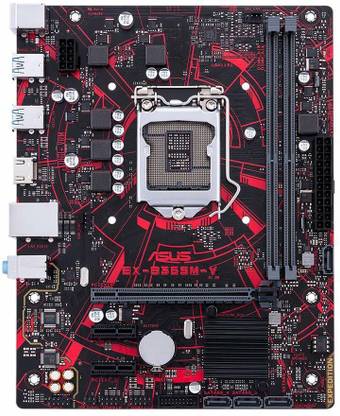

    ASUS EX-B365M-V5 LGA1151Socket Micro-ATX Intel B365 Chipset DDR4 Motherboard for Desktop
    G.O.A.T Sale ends in19 hrs : 45 mins : 40 secs

    ASUS EX-B365M-V5 LGA1151Socket Micro-ATX Intel B365 Chipset DDR4 Motherboard for Desktop

    Price: Not Available
    Currently Unavailable
    3 Years Limited Local WarrantyKnow More
    Highlights
    • Suitable For Desktop
    • Intel B365
    • Data Rate DDR4
    • Maximum RAM Capacity 32 GB
    • Form Factor: Micro-ATX
    Specifications
    In The Box
    Sales Package
    • User's manual I/O Shield 1 x M.2 Anchor
    General
    Brand
    • ASUS
    Model ID
    • EX-B365M-V5
    Essentials
    Form Factor
    • Micro-ATX
    Socket Type
    • LGA1151
    Compatible Processors
    • Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. * Refer to www.asus.com for CPU support list
    Chipset
    • Intel B365
    Chipset Manufacturer
    • Intel
    Memory
    Memory Configuration
    • 32 GB DDR4 DIMM
    Memory Frequency
    • 2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory MHz
    ECC Support
    • Non-ECC
    Buffered Memory
    • No
    Storage
    SATA 6 Gb/s
    • 4, Intel® B365 Chipset
    RAID Controller
    • Intel B365
    Graphics
    Integrated Graphics card
    • Intel® HD Graphics support
    External Graphics Card Support
    • Yes
    Audio
    Audio Codec
    • Realtek® ALC887 8-Channel High Definition Audio CODEC
    Internal I/o Headers
    SATA 6 Gb/s Headers
    • 4
    USB 2.0 Headers
    • 6
    USB 3.0 Headers
    • 6
    Other Connectors
    • Back I/O Ports 1 x PS/2 keyboard (purple) 1 x PS/2 mouse (green) 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 2.0 3 x Audio jack(s) 4 x USB 3.2 Gen 1 (up to 5Gbps) ports Internal I/O Ports 1 x AAFP connector 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) 1 x M.2 Socket 3 for M Key, type 2242/2260/2280 devices 4 x SATA 6Gb/s connector(s) 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors 1 x Internal speaker connector(s) 1 x System panel(s) 1 x Clear CMOS jumper(s) 1 x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports
    Back Panel Ports
    USB 2.0 Ports, Controller
    • 6
    HDMI Ports
    • 1
    PS/2
    • 2
    General Features
    OS Support
    • Windows® 10 64-bit
    Advanced Features
    • ASUS 5X Protection III : - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges! - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: 6 Phase digital power design - ASUS SafeSlot Core+ - Prevent graphics card damage Non-stop Durability : - Anti-moisture coating - Outstanding protection against moisture and corrosion - USBGuard- 120% higher voltage tolerance Non-stop Gaming : - Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals - Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity Non-stop Challenger : - ASUS iCafe Labs Certified - Top games and 100+ peripherals tested ASUS Q-Design : - ASUS Q-Slot - ASUS Q-DIMM
    Warranty
    Warranty Summary
    • 3 Years Limited Local Warranty
    Covered in Warranty
    • Product Warranty Limited to Manufacturing Defects Only
    Not Covered in Warranty
    • 1. Damage caused to this product(s) by you or any non-authorized third party. 2. The serial number has been altered, cancelled or removed. 3. There is damage caused by accident, natural disaster, intentional or accidental misuse, abuse, neglect or improper maintenance, or use under abnormal conditions. 4. There is damage caused by an external electrical fault or any accident. 5. There is damage from use outside of the operation or storage parameters or environment detailed in the User's Manual. 6. There is damage from use of parts not manufactured or sold by ASUSTeK. 7. There is damage from third party software or from virus (es). 8. There is software loss or data loss that may occur during repair or replacement.
    Warranty Service Type
    • Carry-In
