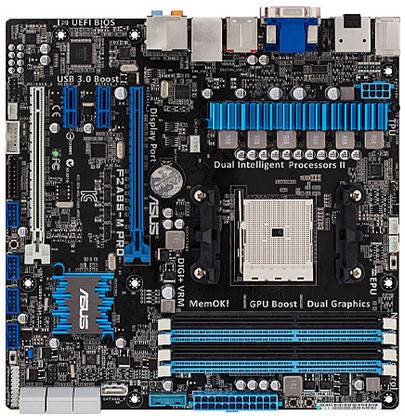

    ASUS F2A85-M-PRO FM2Socket Micro-ATX AMD A85X Chipset DDR3 Motherboard

    ASUS F2A85-M-PRO FM2Socket Micro-ATX AMD A85X Chipset DDR3 Motherboard

    Price: Not Available
    Currently Unavailable
    Highlights
    • AMD A85X
    • Data Rate DDR3
    • Maximum RAM Capacity 64
    • Form Factor: Micro-ATX
    Specifications
    Back Panel Ports
    USB 2.0 Ports, Controller
    • 2
    USB 3.0 Ports, Controller
    • 4
    eSATA Ports, Controller
    • 1
    HDMI Ports
    • 1
    DVI Ports
    • 1
    VGA/D Sub Ports
    • 1
    Audio I/O Channels
    • 6
    Optical S/PDIF Ports and S/PDIF Out ports
    • 1 (S/PDIF Out Ports)
    RJ-45 Ethernet Jacks
    • 1
    PS/2
    • 1
    In The Box
    Sales Package
    • Motherboard, Users Manual, ASUS Q-Shield, 2 x SATA 6 Gb/s Cable(s)
    General Features
    Overclocking
    • ASUS C.P.R. (CPU Parameter Recall)
    Support CDs
    • Drivers, ASUS Utilities, ASUS Update, Anti-virus Software (OEM Version)
    OS Support
    • Windows XP and Above
    BIOS
    • 64 Mb Flash ROM, UEFI BIOS, PnP, DMI v2.0, WfM2.0, SM BIOS V2.7, ACPI V2.0a
    Advanced Technologies
    • Complete USB 3.0 Integration, Native SATA 6Gb/s Support
    Advanced Features
    • UEFI BIOS, USB BIOS Flashback, Network iControl, Remote GO!, AI Suite II, USB Charger+
    Warranty
    Domestic Term
    • 3 Years ASUS India Warranty and Free Transit Insurance.
    Memory
    Number of Memory Slots
    • 4 Slots
    Memory Configuration
    • 64 DDR3 Dual Channel DIMM
    Memory Frequency
    • 2000(O.C) MHz, 1866 MHz, 2400(O.C) MHz, 1066 MHz, 2250(O.C) MHz, 2133(O.C) MHz, 1600 MHz, 1333 MHz, 2200(O.C) MHz
    ECC Support
    • Non-ECC
    Buffered Memory
    • Unbuffered
    Limitations
    • Due to OS limitation, When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Install a 64-bit Windows OS when you want to install 4GB or more memory on the Motherboard
    Dimensions
    Dimensions
    • 244 x 244 mm
    Essentials
    Form Factor
    • Micro-ATX
    Socket Type
    • FM2
    Compatible Processors
    • AMD A8-5500, AMD A6-5400K, AMD A4-5300B, AMD A10-5800B, AMD A8-5600K, AMD A10-5700, AMD AthlonX4 740, AMD A4-5300, AMD AthlonX4 730, AMD A6-5400B, AMD A8-5500B, AMD AthlonX4 750K, AMD A10-5800K
    Chipset
    • AMD A85X
    Chipset Manufacturer
    • AMD
    Graphics
    Integrated Graphics card
    • AMD Radeon HD 7000 Series
    Multi GPU Support
    • Yes, Supports AMD Quad-GPU CrossFireX Technology, Supports LucidLogix Virtu MVP Technology
    Storage
    SATA 6 Gb/s
    • AMD A85X FCH
    RAID Configurations
    • 0, 1, 5, 10, JBOD
    Expansion Slots
    PCIe x1 Slots, Generation
    • 2
    PCIe x16 Slots, Generation
    • 2
    General
    Brand
    • ASUS
    Model ID
    • F2A85-M-PRO
    Key Features
    • AMD A85X FCH, Maximum 64 GB DDR3, Dual Channel DIMM Memory, 4 Memory Slots, Micro-ATX Form Factor, 1 HDMI Port, FM2 Socket Type
    Connectivity
    Ethernet Controller
    • Realtek 8111F
    Ethernet Features
    • 1 x Gigabit LAN Controller
    Number of Com Ports
    • 1
    Audio
    Audio Codec
    • Realtek ALC892
    Audio Channels
    • 8
    Audio Features
    • Supports : Jack-Detection, Multi-treaming, Front Panel JackRetasking, Optical S/PDIF Out Port(s) at Back Panel
    Internal I/o Headers
    SATA 6 Gb/s Headers
    • 7
    USB 2.0 Headers
    • 4
    USB 3.0 Headers
    • 1
    ATX Power Connectors
    • 1 (8 Pin ATX 12V Power Connectors)
    Fan Headers
    • 1 (Processor Fan Headers), 3 (System Fan Headers)
    Front Panel Headers
    • 2
    Other Connectors
    • 1 x TPU Switch, 1 x DRCT Header, 1 x USB BIOS Flashback Button, 1 x EPU Switch, 1 x 24-pin EATX Power Connector, 1 x S/PDIF Out Header
    Ratings & Reviews
    5
    ★
    2 Ratings &
    2 Reviews
    • 5★
    • 4★
    • 3★
    • 2★
    • 1★
    • 2
    • 0
    • 0
    • 0
    • 0
    5

    Good mobo for standard using & also for enthusisats

    its a good mobo.. at the budget of 9 & 1/2 k its a good choice for standard a7 advanced using, video editing, gaming and all other imortant tasks which supported by mobo boost. It's ram checking, bios flashback, epu, tpu switches & settings are good also has 3 fan headers for fan speed control. AI Suite II is also a good software and application for adjusting the mobo properties for use from desktop. If U want to buy fm2 cpu.. i will say go for this mobo frequently unless u have the options ...
    READ MORE

    sayan chakrabarti

    Certified Buyer, Nabagram

    Nov, 2013

    0
    0
    Permalink
    Report Abuse
    5

    Fantastic Board Awsome.

    Hunting for this board since feb13. But flipkart/WSretail failed.Ultimately get it from MDcomputers for little less. It is working great with my A10-5800K system.
    1> SATA 6 Gbps already tested with a samsung SSD as boot device.Runs like a dream.
    2> USB3: tested with WD my passport drive. writing at speed of 95 Mbps!!!
    3> UEFI bios: Very very pleasant surprise.
    4> AI suit 2: Authoring my system is easy like playing a game.
    5> 2 very high quality SATA2 cable.

    Yet to test OCing and pseudo-cro...
    READ MORE

    BKM

    Jun, 2013

    0
    0
    Permalink
    Report Abuse
