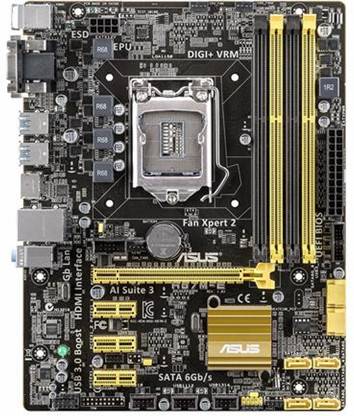

    Asus H87M-E Motherboard

    Asus H87M-E Motherboard

    Price: Not Available
    Currently Unavailable
    3 Years Asus India Warranty and Free Transit InsuranceKnow More
    Highlights
    • Intel H87
    • Data Rate DDR3
    • Maximum RAM Capacity 32
    • Form Factor: Micro-ATX
    Specifications
    Back Panel Ports
    USB 2.0 Ports, Controller
    • 2
    USB 3.0 Ports, Controller
    • 4, Intel H87
    HDMI Ports
    • 1
    DVI Ports
    • 1
    VGA/D Sub Ports
    • 1
    Audio I/O Channels
    • 3
    RJ-45 Ethernet Jacks
    • 1
    PS/2
    • 2
    In The Box
    Sales Package
    • Motherboard, User's Manual, I/O Shield, 2 x SATA 6 Gb/s Cables
    General Features
    Support CDs
    • Drivers, Asus Utilities, Asus EZ Update
    Bundled Software
    • Anti-virus Software (OEM Version)
    OS Support
    • 7, Windows: XP, Vista, 8
    BIOS
    • 64 MB Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, Asus EZ Flash 2, Asus CrashFree BIOS 3, My Favorites, Quick Note, Last Modified log, F12 PrintScreen, F3 Shortcut Functions
    Features
    • PXE, DMI 2.0, Manageability: WfM 2.0, Supports Intel 22 nm CPU, WOL by PME, Supports Upto 3 Displays Simultaneously
    Advanced Technologies
    • Supports Intel Turbo Boost Technology 2.0, Clear Video HD Technology, Supports Intel InTru 3D Technology, Supports Quick Sync Video Technology, Supports Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology, Asus USB 3.0 Boost Technology
    Advanced Features
    • Supports Intel Insider, Asus 5X Protection, Asus EPU, GPU Boost, AI Suite 3, Ai Charger, Anti-surge, Asus UEFI BIOS EZ Mode, Network iControl, Disk Unlocker, Asus Quiet Thermal Solution, Asus EZ DIY, Asus Q-Design, Supports Intel Extreme Memory Profile (XMP), Fan Xpert 2, UEFI BIOS
    Warranty
    Domestic Term
    • 3 Years ASUS India Warranty and Free Transit Insurance.
    Warranty Summary
    • 3 Years Asus India Warranty and Free Transit Insurance
    Memory
    Number of Memory Slots
    • 4 Slots
    Memory Configuration
    • 32 DDR3 Dual Channel DIMM
    Memory Frequency
    • 1066 MHz, 1600 MHz, 1333 MHz
    ECC Support
    • Non-ECC
    Buffered Memory
    • Unbuffered
    Limitations
    • The Intel Turbo Boost Technology 2.0 Support Depends on the CPU Types, Due to Intel Chipset Limitation, DDR3 1600 MHz and Higher Memory Modules on XMP Mode will Run at the Maximum Transfer Rate of DDR3 1600 Mhz, Maximum Shared Memory of 1024 MB, Supports HDMI with Maximum Resolution 4096 x 2160 at 24 Hz and 2560 x 1600 at 60 Hz, Supports DVI with Maximum Resolution 1920 x 1200 at 60 Hz, Supports RGB with Maximum Resolution 1920 x 1200 at 60 Hz
    Dimensions
    Dimensions
    • 193 x 244 mm
    Essentials
    Form Factor
    • Micro-ATX
    Socket Type
    • LGA 1150
    Compatible Processors
    • Intel 4th Generation Core i5 Processor, Intel 4th Generation Core i7 Processor
    Chipset
    • Intel H87
    Chipset Manufacturer
    • Intel
    Graphics
    Integrated Graphics card
    • Yes
    External Graphics Card Support
    • Yes
    Multi GPU Support
    • Yes
    Storage
    SATA 6 Gb/s
    • Intel H87
    RAID Controller
    • Intel H87
    RAID Configurations
    • 0, 1, 5, 10
    Expansion Slots
    PCIe x1 Slots, Generation
    • 2, 3
    PCIe x16 Slots, Generation
    • 1, 3
    General
    Brand
    • ASUS
    Model ID
    • H87M-E
    Key Features
    • LGA 1150 Socket Type, Maximum 32 GB DDR3, Dual Channel DIMM Memory, 4 Memory Slots, RAID Controller: Intel H87, Intel H87 Chipset, Micro-ATX Form Factor
    Connectivity
    Ethernet Controller
    • Realtek 8111G
    Ethernet Features
    • 1 x Gigabit LAN Controller
    Number of Com Ports
    • 1
    Audio
    Audio Codec
    • Realtek ALC887
    Audio Channels
    • 8
    Audio Features
    • HD Audio, Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    Internal I/o Headers
    SATA 6 Gb/s Headers
    • 6
    USB 2.0 Headers
    • 3
    USB 3.0 Headers
    • 1
    ATX Power Connectors
    • 1 (8 Pin ATX 12V Power Connectors)
    Fan Headers
    • 1 (Processor Fan Headers), 2 (System Fan Headers)
    Front Panel Headers
    • 1
    Other Connectors
    • 1 x Internal Speaker Connector, 1 x Clear CMOS Jumper, 1 x 24-pin EATX Power Connector, 1 x System Panel, 1 x S/PDIF Out Header
