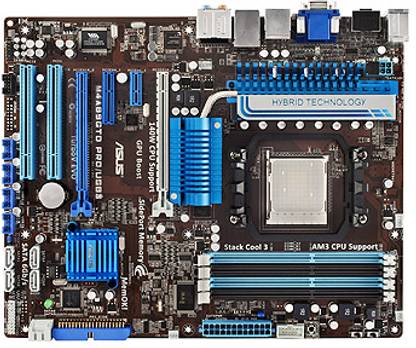

ASUS M4A89GTD PRO/USB3 AM3Socket ATX AMD 890GX Chipset DDR3 Motherboard for Desktop

Price: Not Available

Currently Unavailable

Asus guarantees that the Asus Device that you have purchased are free from defects in materials or workmanship under normal use during the Limited Warranty Period. The Limited Warranty Period starts from the date of purchase. Your sales receipt, showing the date of purchase, is the proof of your purchase date. You may be required by your Purchase Site or Asus Authorized Networking products to present the proof of purchase as a condition of receiving warranty service. You are entitled to a hardware warranty service if a repair is required within the Limited Warranty Period.Know More

Highlights

Suitable For Desktop
AMD 890GX
Data Rate DDR3
Maximum RAM Capacity 16
Form Factor: ATX

Specifications

Back Panel Ports

USB 2.0 Ports, Controller	4
USB 3.0 Ports, Controller	2
eSATA Ports, Controller	JMicron JMB362, 1
HDMI Ports	1
IEEE 1394a Ports	1
DVI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	8
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	1
PS/2	1

In The Box

Sales Package

1 x Ultra DMA 133/100 cable, 2 x Serial ATA 3.0Gb/s cables, 2 x Serial ATA 6.0Gb/s cables, 1 x Q-Shield, 1 x VGA Switch card, 2 in 1 Q-connector (USB, System panel; Retail version only), User's manual

General Features

Overclocking	Precision Tweaker 3 - vCore: Adjustable CPU voltage at 0.003125V increment - vDDNB: Adjustable CPU NB voltage at 0.003125V increment - vCPU PLL: Adjustable CPU_PLL voltage at 0.00625V increment - vHT bus: Adjustable PCH voltage at 0.00625V increment - vDRAM Bus: Adjustable DRAM voltage at 0.00625V increment - iChipset: Adjustable iChipset voltage at 0.00625V increment SFS (Stepless Frequency Selection) - PCI Express frequency tuning from 100MHz up to 150MHz at 1MHz increment - Internal Base ClO.Ck tuning from 100MHz up to 600MHz at 1MHz increment Overclocking Protection - ASUS C.P.R.(CPU Parameter Recall)
Support CDs	Drivers, Anti-virus software (OEM version),ASUS Update,ASUS Utilities
BIOS	16 Mb Flash ROM, SPI, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3
Advanced Features	Supports ATI CrossFireX technology(@dual x8 speed)

Warranty

Domestic Term	3 Years ASUS India Warranty and Free Transit Insurance.
Warranty Summary	Asus guarantees that the Asus Device that you have purchased are free from defects in materials or workmanship under normal use during the Limited Warranty Period. The Limited Warranty Period starts from the date of purchase. Your sales receipt, showing the date of purchase, is the proof of your purchase date. You may be required by your Purchase Site or Asus Authorized Networking products to present the proof of purchase as a condition of receiving warranty service. You are entitled to a hardware warranty service if a repair is required within the Limited Warranty Period.
Covered in Warranty	During the Limited Warranty Period, Asus will, at its sole discretion, repair or replace any defective component. All spare-parts or module removed under this Limited Warranty become the property of Asus.
Not Covered in Warranty	Warranty invalid if damage/dysfunction caused by improper handling/usage, destruction. Warranty invalid if serial label is removed, broken Warranty invalid if disassembly by end-user or non-ASUS-authorized repair centres. This Limited Warranty does not cover any software applications or programs; non-Asus products or non-Asus branded peripherals.
Warranty Service Type	On Site (Based on the lO.Cation)

Memory

Number of Memory Slots	4 Slots
Memory Configuration	16 DDR3 Dual Channel DIMM
Memory Frequency	1066 MHz, 1333 MHz, 1866(O.C) MHz
ECC Support	No
Buffered Memory	Unbuffered

Dimensions

244 x 305 mm

Essentials

Form Factor	ATX
Socket Type	AM3
Compatible Processors	Phenom II, Athlon II, Sempron 100 Series processors Supports AM3 45 nm CPU Supports CPU up to 140 W
Chipset	AMD 890GX, SB850
Chipset Manufacturer	AMD

Graphics

Integrated Graphics card	ATI Radeon HD 4290 GPU
Side Port Memory	128 MB DDR3 1333
Multi GPU Support	Yes, Hybrid CrossFireX support

Storage

SATA 6 Gb/s	SB850
RAID Configurations	0, 1, 5, 10
PATA Ultra DMA	JMicron JMB361

Expansion Slots

PCI Slots	2
PCIe x1 Slots, Generation	1, 2
PCIe x4 Slots, Generation	1, 2
PCIe x16 Slots, Generation	2

General

Brand	ASUS
Model ID	M4A89GTD PRO/USB3
Designed For	Desktop
Key Features	ATX Form Factor, Maximum 16 GB DDR3, 4 Memory Slots, Dual Channel DIMM Memory, SB850, AMD 890GX, 1 HDMI Port, AM3 Socket Type

Connectivity

Ethernet Controller	Realtek 8111E Gigabit LAN controller featuring AI NET2
IEEE 1394a FireWire Controller	VIA 6308P
Number of FireWire Ports	2
Number of Com Ports	1

Audio

Audio Codec	ALC 892
Audio Channels	8
Audio Features	BD Audio Layer Content Protection Support 192khz/24bit True BD Lossless Sound DTS Surround Sensation UltraPC Supports Jack-Detection, Multi-Streaming, and Front Panel Jack-Retasking Optical S/PDIF Out ports at back I/O ASUS Noise Filter

Internal I/o Headers

SATA 6 Gb/s Headers	6
USB 2.0 Headers	4
ATX Power Connectors	1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
Fan Headers	1 (Processor Fan Headers)
Other Connectors	1 x Clear CMOS jumper, 1 x IDE Connector, 1 x Core UnlO.Cker Switch 1 x Turbo Key II Switch, 1 x Power Fan Connector, 1 x MemOK Button Front Panel Audio Connector, System Panel, 1 x S/PDIF Out Header
