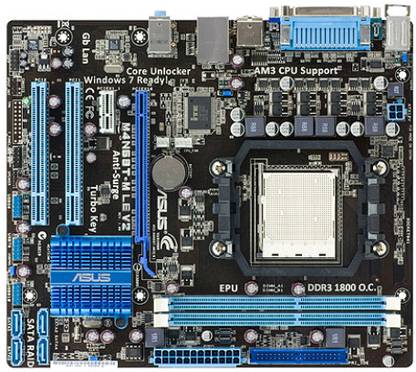

ASUS M4N68T-M LE V2 AM3Socket Micro-ATX GeForce 7025 Chipset DDR3 Motherboard for Desktop

Price: Not Available

Currently Unavailable

Customer contacts 1800-2090-365 for supportKnow More

Highlights

Suitable For Desktop
GeForce 7025
Data Rate DDR3
Maximum RAM Capacity 8
Form Factor: Micro-ATX

Specifications

In The Box

Sales Package

User Manual, I/O Shield, 1 x UltraDMA 133/100 Cable(s), 2 x SATA 3 Gb/s Cable(s), Driver Disk, Motherboard

General

Brand	ASUS
Model ID	M4N68T-M LE V2

Essentials

Form Factor	Micro-ATX
Socket Type	AM3
Compatible Processors	Athlon IIX2, Athlon IIX3, Athlon IIX4, Athlon X2, Phenom IIX2, Phenom IIX3, Phenom IIX4, Phenom IIX6, Sempron 140, Sempron 145, Sempron 150
Chipset	GeForce 7025, nForce 630a
Chipset Manufacturer	NVIDIA

Memory

Number of Memory Slots	2 Slots
Memory Configuration	8 DDR3 Dual Channel DIMM
Memory Frequency	1066 MHz, 1333 MHz, 1600(O.C) MHz, 1800(O.C) MHz
ECC Support	ECC
Buffered Memory	Unbuffered

Storage

RAID Configurations	0, 1, 5, 10, JBOD
PATA Ultra DMA	1

Graphics

Integrated Graphics card

Audio

Audio Codec	VIA VT1708S
Audio Channels	8
Audio Features	High Definition Audio

Connectivity

Ethernet Controller	Realtek 8211CL-VB
Ethernet Features	1 x Gigabit LAN Controller

Expansion Slots

PCI Slots	2
PCIe x1 Slots, Generation	1
PCIe x16 Slots, Generation	1

Internal I/o Headers

SATA 3 Gb/s Headers	4
USB 2.0 Headers	3
Fan Headers	1 (Processor Fan Headers), 1 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x IDE Connector, 1 x S/PDIF Out Header, 1 x 24-pin EATX Power Connector, 1 x 4-pin ATX 12 V Power Connector, 1 x Internal Speaker Connector, 1 x System Panel

Back Panel Ports

USB 2.0 Ports, Controller	10
VGA/D Sub Ports	1
Audio I/O Channels	3
RJ-45 Ethernet Jacks	1
PS/2	2
Other Ports	1 x Parallel Port, 1 x COM Port

General Features

Overclocking	Overclocking Protection: ASUS C.P.R.(CPU Parameter Recall)
Support CDs	Drivers, ASUS PC Probe II, ASUS Update
Bundled Software	Anti-virus Software (OEM version)
BIOS	8 Mb Flash ROM, AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS v2.5, ACPI 2.0a
Features	Maximum Shared Memory of 256 MB, 1 x UltraDMA 133/100/66, VGA Output Support: RGB Port Supports RGB with Maximum Resolution 1920 x 1440 at 75 Hz, Non-ECC
Advanced Technologies	AMD Cool n Quiet Technology
Advanced Features	AMD 64 Architecture, Core Unlocker, ASUS EPU-4 Engine, Turbo Key, Anti-Surge, ASUS AI Net 2, ASUS CrashFree BIOS 3, ASUS EZ Flash 2, ASUS MyLogo 2, ASUS Q-Fan

Dimensions

244 x 208 mm

Warranty

Domestic Term	3 Years ASUS India Warranty and Free Transit Insurance.
Warranty Summary	Customer contacts 1800-2090-365 for support
Covered in Warranty	During the Limited Warranty Period, Asus will, at its sole discretion, repair or replace any defective component. All spare-parts or module removed under this limited Warranty become the property of Asus.
Not Covered in Warranty	Warranty invalid if damage/dysfunction caused by improper handling/usage, destruction. Warranty invalid if serial label is removed, broken Warranty invalid if disassembly by end-user or non-ASUS-authorized repair centres. This Limited Warranty does not cover any software applications or programs non-Asus products or non-Asus branded peripherals.
Warranty Service Type	On Site (Based on the location)

Ratings & Reviews

4.6

★

11 Ratings &

5 Reviews

5★
4★
3★
2★
1★

very good and cheap

i have this
it is good and fast
features are awesome and has a good processer
asus is also a good brand
but does it have any graphic card???
please answer...

Ääshísh Rocker

Feb, 2014

Permalink

Report Abuse

aMAZING PRODUCT.

i HAVE nOT bROUgHT iT FRoM FlIPkaRT bUT i AM usING iT fROM 1YEAR.

iTS aMAZING ONE.

bEST FOR gAMERZ....
It SUPPORTS AMD PHENOM II X2,X4,X5

AND iT SUPPORTS aMD gRApHIcS cArd/ATI 6000SERies is tHE bEST.
i Am uSING ATI RADEon HD 6750 1GB DDR5 GRAPHICS CARD.

It'S aWEoMe.
REallY vALUE For mONey.

aND iTS PRICE IS WELL SUITABLE IN FLIPKART.
I HAVE BOUGHT IT FROM RS.3100.

tHANK YOU.

Sumit Chatterjee

Feb, 2012

Permalink

Report Abuse

M4N68T-M LE V2

Its a really fantastic motherboard no doubt about its performance against Intel. Intel is costly and also provide less inbuilt graphics. Asus gives both Graphics as well as low price.
Also M5A78 and M5A88 are the great motherboard in market today in cheap price. Go for Asus everytime

YOGESH CHAKOTE

Mar, 2012

Permalink

Report Abuse

Good Motherboard for Starter Gamers !

The board has an AM3 Support, with an onboard NVidia 7025 GPU , capable to play COD : MW2. I am owning this motherboard, plugged with an AMD Phnom II X4 965 BE, 4 GB DDR3 RAM, and an Sapphire HD 6670 1GB GDDR5.

Soumyadeep Ghosh

Jan, 2013

Permalink

Report Abuse

awesome.............

this motherboard is awesome... i am using for 1 year without facing any problem...the inbuilt graphics is also great for the gamers...!! btw I m using xfx Nvidia 9500Gt 1gb ddr2 graphics card in it.....

Sagar Seal

Jul, 2012

Permalink

Report Abuse

All 5 reviews
