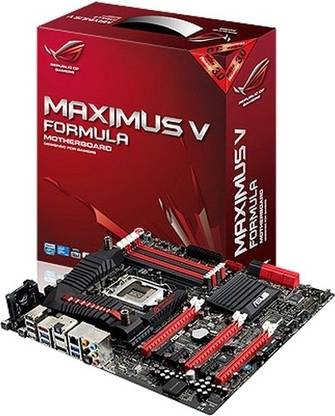

ASUS Maximus V Formula LGA 1155Socket EATX Intel Z77 Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

Limited Parts and Labour are CoveredKnow More

Highlights

Intel Z77
Data Rate DDR3
Maximum RAM Capacity 32
Form Factor: EATX

Specifications

Back Panel Ports

USB 2.0 Ports, Controller	4
USB 3.0 Ports, Controller	4
eSATA Ports, Controller	1
HDMI Ports	1
Audio I/O Channels	5
Optical S/PDIF Ports and S/PDIF Out ports	2 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	1

In The Box

Sales Package

User's Manual, I/O Shield, 2 x SATA 3 GB/s Cable, 4 x SATA 6 GB/s Cable, 1 x SLI Bridge, 1 x Q-connector (2 in 1) , 1 x ROG Connect Cable, 1 x 12 in 1 ROG Cable Label, 1 x mPCIe Combo Card with Dual Band Wi-Fi 802.11 a/b/g/n Module + Bluetooth v4.0/ 3.0+HS Module, 1 x 2-in-1 RF Cable, 2 x Wi-Fi Ring Moving Antenna, 1 x Diablo III Mousepad, 1 x ROG Logo Sticker, 1 x 2.5 mm Xbox 360 Voice Input Cable, 1 x Dual-head USB Cable(s), 1 x ThunderFX Xbox 360 AV + 3.5 mm to RCA Cable

General Features

Overclocking	mPCIe Combo (mPCIe/ mSATA Combo Card), ROG Connect: RC Diagram, RC Remote, RC Poster, GPU TweakIt, Extreme Engine Digi+ II: 8-phase CPU Power Design + 4-phase iGPU Power Design, 2-phase Memory Power Design, ROG Extreme OC kit: Slow Mode, LN2 Mode, EZ Plug, ProbeIt, UEFI BIOS Features: ROG BIOS Print, GPU.DIMM Post, GameFirst II, iROG, Extreme Tweaker, Loadline Calibration, USB BIOS Flashback, Overclocking Protection: ASUS C.P.R. (CPU Parameter Recall)
Support CDs	Drivers, DAEMON Tools Pro Standard, GameFirst II, ROG CPU-Z, Mem TweakIt, ASUS AI Suite II, ASUS WebStorage, ASUS Utilities
Bundled Software	Kaspersky Anti-virus
OS Support	Windows XP and Above
BIOS	64 MB UEFI AMI BIOS, PnP, DMI 2.0, WfM 2.0, SM BIOS 2.5, ACPI 2.0a Multi-language BIOS
Features	WfM 2.0, 5 GHz, Supports Intel 32 nm CPU, PXE, DMI 2.0, Supports Intel 22 nm CPU, Wireless Data Network: Dual Band Frequency 2.4, WOL by PME
Advanced Technologies	Intel Turbo Boost Technology 2.0
Advanced Features	Windows 8 Ready Assured Compatibility, Intel Extreme Memory Profile (XMP), Multi-VGA Output Support: HDMI, Display Port, Supports HDMI with Maximum Resolution 1920 x 1200 at 60 Hz, Supports Display Port with Maximum Resolution 2560 x 1600 at 60 Hz, Supports Intel HD Graphics, InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider, ASUS TurboV EVO: CPU Level Up, ASUS EPU: EPU, ASUS Wi-Fi GO!: Wi-Fi GO! Function, DLNA Media Hub, Smart Motion Control, Remote Desktop, Remote Keyboard and Mouse, File Transfer, Capture and Send, ASUS Exclusive Features:AI Suite II, Ai Charger+, USB Charger+, USB 3.0 Boost, Disk Unlocker, ASUS Quiet Thermal Solution: ASUS Fan Xpert 2, ASUS EZ DIY: ASUS O.C. Profile, ASUS CrashFree BIOS 3, ASUS EZ Flash 2, ASUS Q-Design: ASUS Q-Shield, ASUS Q-Code, ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED), ASUS Q-Slot, ASUS Q-DIMM, ASUS Q-Connector, Fusion Thermo Solution

Warranty

Domestic Term	3 Years ASUS India Warranty and Free Transit Insurance.
Warranty Summary	Limited Parts and Labour are Covered
Covered in Warranty	During the Limited Warranty Period, Asus will, at its Sole Discretion, Repair or Replace any Defective Component. All Spare-parts or Module Removed Under this Limited Warranty Become the Property of Asus
Not Covered in Warranty	Warranty Invalid if Damage/ Disfunction Caused by Improper Handling, Usage, Destruction. Warranty Invalid if Serial Label is Removed, Broken Warranty Invalid if Disassembly by End-user or Non-ASUS Authorized Repair Centres. This Limited Warranty does not Cover any Software Applications or Programs Non-Asus Products or Non-Asus Branded Peripherals
Warranty Service Type	Carry In

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 DDR3 Dual Channel DIMM
Memory Frequency	2133(O.C.) MHz, 1066 MHz, 2800(O.C.) MHz, 2200(O.C.) MHz, 1866(O.C.) MHz, 2666(O.C.) MHz, 2400(O.C.) MHz, 2600(O.C.) MHz, 1600 MHz, 1333 MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Limitations

LucidLogix Virtu MVP Supports Windows 7 Operating Systems, PCIe 3.0 Speed is Supported by Intel 3rd Generation Ivy Bridge Core Processors, x8/ x4/ x4 Mode is Supported by Intel 3rd Generation Ivy Bridge Core Processors, The mPCIe 2.0 x1 Slot is Located on mPCIe Combo Expansion Card, The mini-PCIe Slot is Pre-installed with an Wi-Fi/ Bluetooth Module, Supports on Intel Core Processor Family with Windows 7 Operating Systems, ASMedia PCIe SATA Ports are for Data Hard Drives Only

Dimensions

257 x 305 mm

Essentials

Form Factor	EATX
Socket Type	LGA 1155
Compatible Processors	Intel 3rd Generation Core i3 Processor, Intel 2nd Generation Core i7 Processor, Intel 2nd Generation Core i5 Processor, Intel 3rd Generation Core i5 Processor, Intel Pentium Processor, Intel Xeon Processor, Intel 3rd Generation Core i7 Processor, Intel 2nd Generation Core i3 Processor, Intel Celeron Processor
Chipset	Intel Z77
Chipset Manufacturer	Intel

Graphics

Integrated Graphics card	Yes
Multi GPU Support	Yes, NVIDIA SLI Technology, AMD 3-Way CrossFireX Technology, AMD CrossFireX Technology, LucidLogix Virtu MVP Technology

Storage

SATA 3 Gb/s	Intel Z77 Chipset
SATA 6 Gb/s	Intel Z77 Chipset
RAID Controller	Intel Z77 Chipset
RAID Configurations	0, 1, 5, 10

Expansion Slots

PCIe x1 Slots, Generation	2, 3
PCIe x4 Slots, Generation	1, 2
PCIe x16 Slots, Generation	3

General

Brand	ASUS
Model ID	Maximus V Formula
Key Features	E-ATX Form Factor, RAID Controller: Intel Z77 chipset, LGA 1155 Socket Type, Maximum 32 GB DDR3, 4 Memory Slots, Dual Channel DIMM Memory, Intel Z77 Chipset

Connectivity

Ethernet Features	1 x Gigabit LAN
Wireless and Bluetooth	IEEE 802.11 a/b/g/n and Bluetooth V4.0, Bluetooth V3.0 HS

Audio

Audio Codec	SupremeFX IV
Audio Channels	7.1
Audio Features	High Definition Audio, Output Signal-to-Noise Ratio (A-Weighted): 110 dB, Output THD+N at 1kHz: 95 dB, TI 6120A2 High Fidelity Headphone Amplifier, Jack-detection, Multi-streaming, Front Panel Jack-retasking, SupremeFX Shielding Technology, ELNA Premium Audio Capacitors, 1500 uF Audio Power Capacitor, Blu-ray Audio Layer Content Protection, DTS Ultra PC II, DTS Connect

Internal I/o Headers

SATA 3 Gb/s Headers	2
SATA 6 Gb/s Headers	2
USB 2.0 Headers	2
USB 3.0 Headers	1
ATX Power Connectors	1 (8 Pin ATX 12V Power Connectors)
Fan Headers	2 (Processor Fan Headers), 3 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x eSATA 3 GB/s Port, 1 x Optical S/PDIF In, 1 x Reset Button, 1 x mini-SATA 3 GB/s Port, 1 x DisplayPort, 1 x LN2 Mode Header, ASMedia PCIe SATA Controller: 4 x SATA 6 GB/s Port, 1 x Power-on Button, 1 x 24-pin EATX Power Connector, 3 x Thermal Sensor Connector, 1 x EZ Plug Connector (4-pin Molex Power Connector), 1 x 4-pin ATX 12V Power Connector, 1 x Slow Mode Switch, 1 x Clear CMOS Button, 1 x Optical S/PDIF Out, 1 x Go Button, 1 x mPCIe Combo Header, 8 x ProbeIt Measurement Points, 1 x ROG Connect On/ Off Switch, 1 x System Panel, 1 x S/PDIF Out Header

Ratings & Reviews

4.8

★

17 Ratings &

3 Reviews

5★
4★
3★
2★
1★

Best Ivy Bridge Board till date

I have this board, not from flipkart (flipkart added board 3 days after I purchased) and I'm completely satisfied with it. Every component in my chassis is now Red + Black.

Pros:
+Stable & cool
+Nice Looks (Onboard Lights + ROG Light)
+Connects 6 PWM FANS (Intelligent control) + 2 CPU FANs (Good for Aftermarket coolers)
+Wifi 802.11n dual band/Bluetooth 4.0 are smooth (i.e. Signal Integrity is taken care of)

Cons:
-NO Optional THERMAL SENSOR CABLE BUNDLED. No info available on opt sensor ty...

Jai Sayan

Nov, 2012

Permalink

Report Abuse

Hardcore Gamers should buy this board!

If your into serious gaming and overclocking this board is perfect for you. The Maximus V Formula has insanely good onboard audio and a dedicated sound card isn't required. The onboard audio is on par with discreet sound solutions! Asus is the brand you must choose if you want the best motherboards and this board showcases that actually how many features can be crammed on a single motherboard. Guys PC Gaming should be your preference. PC>Console. Totally worth the price!!!

Zulfikaar Choonia

Certified Buyer, Mumbai

Jan, 2013

Permalink

Report Abuse

The Best

Nothing can compare to the Asus Maximus line of products.
Top of the line product.
Although the packaging was damaged inside and a couple of socket pins were uprooted from the board, it worked anyways without any issues.
Was able to undervolt and overclock my 3570K without a break of sweat.

Abhijit AP

Certified Buyer, Bangalore

Jun, 2014

Permalink

Report Abuse
