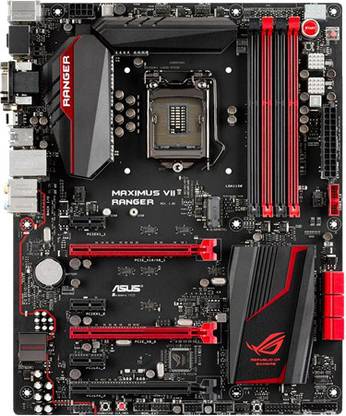

ASUS Maximus VII Ranger LGA 1150Socket ATX Intel Z97 Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

3 Years Asus India Warranty and Free Transit InsuranceKnow More

Highlights

Intel Z97
Data Rate DDR3
Maximum RAM Capacity 32
Form Factor: ATX

Specifications

In The Box

Sales Package

Users Manual, I/O Shield, 4 x SATA 6 Gb/s Cables, 1 x SLI Bridge, 1 x Q-connector (2-in-1), 1 x 12-in-1 ROG Cable Label, 1 x ROG Door Hanger

General

Brand	ASUS
Model ID	Maximus VII Ranger

Essentials

Form Factor	ATX
Socket Type	LGA 1150
Compatible Processors	Intel Pentium Processors, Intel 5th Generation Core i3 Processors, Intel 5th Generation Core i7 Processors, Intel 4th Generation Core i3 Processors, Intel 4th Generation Core i7 Processors, Intel New 4th Generation Core i5 Processors, Intel 5th Generation Core i5 Processors, Intel New 4th Generation Core i7 Processors, Intel New 4th Generation Core i3 Processors, Intel Celeron Processors, Intel 4th Generation Core i5 Processors
Chipset	Intel Z97
Chipset Manufacturer	Intel

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 DDR3 Dual Channel DIMM
Memory Frequency	2000 (O.C) MHz, 2600 (O.C) MHz, 2666 (O.C) MHz, 3200 (O.C) MHz, 2933 (O.C) MHz, 3000 (O.C) MHz, 1866 (O.C) MHz, 1600 MHz, 1800 (O.C) MHz, 2500 (O.C) MHz, 3100 (O.C) MHz, 2800 (O.C) MHz, 2133 (O.C) MHz, 2400 (O.C) MHz, 2200 (O.C) MHz, 1333 MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Storage

SATA 6 Gb/s	Intel Z97
RAID Controller	Intel Z97
RAID Configurations	0, 1, 5, 10

Graphics

Integrated Graphics card	Yes
Multi GPU Support	Yes, Supports NVIDIA Quad-GPU SLI Technology, Supports AMD Quad-GPU CrossFireX Technology

Audio

Audio Codec	ROG SupremeFX
Audio Channels	8
Audio Features	High Definition Audio Codec, Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking, SupremeFX Shielding Technology, ELNA Premium Audio Capacitors, Audio Feature: DTS Connect, Optical S/PDIF Out Port at Back Panel, Sonic SoundStage, Sonic SenseAmp, Sonic Studio, Sonic Radar II

Connectivity

Ethernet Controller	Intel I218 V
Ethernet Features	1 x Gigabit LAN Controller

Expansion Slots

PCIe x1 Slots, Generation	2, 3
PCIe x16 Slots, Generation	1

Internal I/o Headers

SATA 6 Gb/s Headers	6
USB 2.0 Headers	3
USB 3.0 Headers	1
ATX Power Connectors	1 (8 Pin ATX 12V Power Connectors)
Fan Headers	1 (Processor Fan Headers), 3 (System Fan Headers)
Front Panel Headers	1
Other Connectors	0 x Power-on Button, 1 x Front Panel Audio Connector (AAFP), 1 x CPU OPT Fan Connector (1 x 4-pin), 3 x Chassis Fan Connector (3 x 4-pin), 1 x MemOK Button, 1 x 24-pin EATX Power Connector, 1 x Thermal Sensor Connector, 1 x Clear CMOS Jumper, 1 x KeyBot Button, 1 x Sonic SoundStage Button, 0 x ROG Extension (ROG_EXT) Header, 1 x System Panel, 0 x Reset Button, 1 x CPU Fan Connector (1 x 4-pin)

Back Panel Ports

USB 2.0 Ports, Controller	2
USB 3.0 Ports, Controller	4
HDMI Ports	1
DVI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	6
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	1
PS/2	1
Other Ports	1 x DVI-D, 1 x USB BIOS Flashback Button

General Features

Overclocking	Asus C.P.R.(CPU Parameter Recall)
OS Support	Windows: 7 (32-bit, 64-bit), 8 (32-bit, 8.1 (32-bit
BIOS	64 Mb UEFI AMI BIOS, PnP, DMI2.7, WfM2.0, SM BIOS 2.7, ACPI5.0a, Multi-language BIOS
Features	Asus Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5: Whole System Optimization with a Single Click, Supports RGB with Maximum Resolution 1920 x 1200 at 60 Hz, Asus Q-Design, DMI 2.7, WOL by PME, DIGI+ Power Control, Whole System Cooling and Even Tailor your Own App Usages, Supports Intel InTru 3D, Supports HDMI with Maximum Resolution 4096 x 2160 at 24 Hz and 2560 x 1600 at 60 Hz, Supports DVI-D with Maximum Resolution 1920 x 1200 at 60 Hz, PXE, Manageability: WfM 2.0, Ai Charger, Disk Unlocker, USB Charger+, and Turbo App Together, USB 3.0 Boost, Management Solution: WfM 2.0, Quick Sync Video, Integrated Graphics Processor - Multi-VGA Output Support: HDMI/DVI-D/RGB Ports, Asus EZ DIY, EPU, Precise Digital Power Control, 5-Way Optimization Tuning Key Perfectly Consolidates TPU, Efficient Power Saving, Providing Better CPU Performance, Asus Exclusive Features: AI Suite 3, Dimensions: 305 x 244 mm, Fan Xpert 3
Advanced Technologies	Supports Intel Turbo Boost Technology 2.0, Intel Turbo Boost Technology 2.0 Support Depends on the CPU Types, Clear Video HD Technology, Supports Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology
Advanced Features	Supports Intel 22 nm CPU, Supports Intel Extreme Memory Profile (XMP), Hyper DIMM Support is Subject to the Physical Characteristics of Individual CPUs, ROG Exclusive Features - Extreme Engine Digi+ III: NexFET Power Block MOSFET, New Alloy Chokes, 10 K Black Metallic Capacitors, KeyBot: CPU Level Up, XMP, Direct Key, ROG RAMDisk, GameFirst III, Extreme Tweaker

Warranty

Warranty Summary

3 Years Asus India Warranty and Free Transit Insurance

Ratings & Reviews

4.6

★

21 Ratings &

2 Reviews

5★
4★
3★
2★
1★

After 1 year Usage , Performance and Gaming - Rock Solid.

Before I thought to buy Mother board, I was done plenty of research. Finally I took Asus Maximus 7 Ranger.
As usual, Flipkart Package was very neat and clean without any damage.Still I see pricing of this Asus mother board was same when I bought 1 year back.

When I received this mother board, I impressed with design and Look feel.
I was used before Intel Mother board 945G, When I used this from day one, I was stunned with the Windows Applications performance and I played Assassin creed bl...

vijayakumar J

Jan, 2016

Permalink

Report Abuse

Solid

I bought this motherboard from market not from flipkart.

The motherboard build quality is solid and looks so beautiful, and its feature and performance is also solid and useful.

If you are a gamer then you should buy this motherboard.

Ravinder Kumar

Jul, 2015

Permalink

Report Abuse
