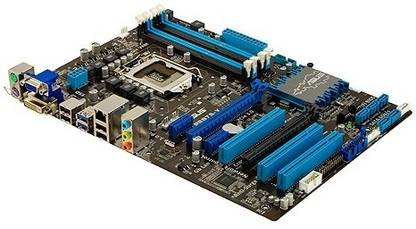

ASUS P8B75-V LGA 1155Socket ATX Intel B75 Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

Customer Contacts 1800-2090-365 or 022-40471231/32 for SupportKnow More

Highlights

Intel B75
Data Rate DDR3
Maximum RAM Capacity 32 GB
Form Factor: ATX

Specifications

General

Brand	ASUS
Model ID	P8B75-V

Essentials

Form Factor	ATX
Socket Type	LGA 1155
Compatible Processors	Intel 3rd Generation Core i7 Processors, Intel 2nd Generation Core i7 Processor, Intel Core i5 Processor, Intel Core i3 Processor, Intel Pentium Processor, Intel Celeron Processor
Chipset	Intel B75
Chipset Manufacturer	Intel

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 GB DDR3 Dual Channel DIMM
Memory Frequency	2200 (O.C) MHz, 2133 (O.C) MHz, 2000 (O.C) MHz, 1866 (O.C) MHz, 1600 MHz, 1333 MHz, 1066 MHz
ECC Support	Non-ECC
Buffered Memory	No

Storage

SATA 3 Gb/s	Intel B75 Express Chipset
SATA 6 Gb/s	Intel B75 Express Chipset

Graphics

Integrated Graphics card	Yes
Multi GPU Support	Yes, AMD Quad-GPU CrossFireX, LucidLogix Virtu MVP Technology

Audio

Audio Codec	Realtek ALC887-VD2
Audio Channels	8
Audio Features	High Definition Audio

Connectivity

Ethernet Controller	Realtek 8111E
Ethernet Features	Gigabit LAN

Expansion Slots

PCI Slots	3
PCIe x1 Slots, Generation	2, 2
PCIe x16 Slots, Generation	1, 2

Internal I/o Headers

SATA 3 Gb/s Headers	5
SATA 6 Gb/s Headers	1
USB 2.0 Headers	2
USB 3.0 Headers	1
ATX Power Connectors	1 (8 Pin ATX 12V Power Connectors)
Fan Headers	1 (Processor Fan Headers), 2 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x S/PDIF Out Header, 1 x 24-pin EATX Power Connector, 1 x Parallel Port Connector, 1 x Front Panel Audio Connector, 1 x System Panel, 1 x Clear CMOS Jumper, 1 x MemOK! Button

Back Panel Ports

USB 2.0 Ports, Controller	4
USB 3.0 Ports, Controller	2, Intel B75 Chipset
DVI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	3
RJ-45 Ethernet Jacks	1
PS/2	2

General Features

Overclocking	Overclocking Protection: ASUS C.P.R.(CPU Parameter Recall)
Support CDs	Drivers, ASUS Utilities, ASUS Update
Bundled Software	Anti-virus Software (OEM Version)
OS Support	Windows 7
BIOS	64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen Function, F3 Shortcut Function and ASUS DRAM SPD Memory Information
Features	Supports Intel 22 nm CPU, Supports Intel 32 nm CPU
Advanced Technologies	Intel 2.0 Turbo Boost Technology, Intel Extreme Memory Profile, Intel Smart Connect Technology, Intel Rapid Start Technology
Advanced Features	ASUS Digital Power Design, ASUS Protect 3 Technology, ASUS Quiet Thermal Solution, ASUS EZ DIY, ASUS Q-Design

Dimensions

219 x 305 mm

Warranty

Domestic Term	3 Years ASUS India Warranty and Free Transit Insurance.
Warranty Summary	Customer Contacts 1800-2090-365 or 022-40471231/32 for Support
Covered in Warranty	During the Limited Warranty Period, Asus will, at its sole discretion, repair or replace any defective component. All spare-parts or module removed under this limited Warranty become the property of Asus.
Not Covered in Warranty	Warranty invalid if damage/dysfunction caused by improper handling/usage, destruction. Warranty invalid if serial label is removed, broken Warranty invalid if disassembly by end-user or non-ASUS-authorized repair centres. This Limited Warranty does not cover any software applications or programs non-Asus products or non-Asus branded peripherals.
Warranty Service Type	On Site (Based on the location)

Ratings & Reviews

4.8

★

15 Ratings &

7 Reviews

5★
4★
3★
2★
1★

WoooW!

This is one of the best of best product from ASUS. Extreme graphics with GPU BOOST. MIND blowing data transfer with USB 3.0.

This motherboard is recommended for budget users who wants to upgrade to new level and its form factor is ATX. Asus P8B75 V is recommended for Intel processor family.

I have intel i5 3550 and its great goin........

Yerpula Nikhil

Sep, 2012

Permalink

Report Abuse

Value for money

Good service by Fk. Im using this board with i3 2120 and coarser vengeance ddr3. Amazing quality. No heating. I advice to use cooler master full size with this. Used almost 1 week continuously 24Hrs. No heating lagging etc. Onboard graphics and 4channel memory, overlocking feature makes it best buy.

Now after one year use im really glad to say that its a good product. no problem whatsoever. So many times I used for more than 5 days continuously. VALUE FOR MONEY. dont forget to put it in bi...

Prasad Damale

Certified Buyer

Sep, 2012

Permalink

Report Abuse

Loads of features for an entry level mobo

Bought this from flipkart and the product arrived in 1 day! Great service as always from flipkart.

The motherboard worked perfectly out of the box and installation was easy.

Pros -
- Lots of expansion slots and form factor is perfect if you use a gpu + sound card.
- USB 3.0
- PCIE 3.0
- SATA 6gbps for SSDs
- Anti-surge protection (Great feature for an entry level B75 mobo)
- Lucid Logix virtu MVP (Again, a fantastic feature for a B75 mobo)
- Asus EPU (Realtime power draw control)
- Turbo bo...

Gautam Nair

Certified Buyer, Bangalore

Jan, 2013

Permalink

Report Abuse

Motherboard for Gamers on a Budget

This motherboard packs enough feature to make any mid-range gamer jump with joy.

AMD Quad-GPU CrossFireX coupled with LucidLogix Virtu MVP Technology will make a gamer feel on Cloud 9.

Additionally the SATA II port will surely ensure that your programs and games are loading faster and there is no lag between your game levels... of course.. do remember to use a SATA II HDD or preferably a SSD to take advantage of this.

The USB 3.0 will surely ensure that your data is copied faster if you ar...

Arijit Ray

Certified Buyer

Jan, 2013

Permalink

Report Abuse

Great value for money and relaibility

PROS:only mobo that supports both 3rd/2nd gen intel processors under 6.5k.,integrated gpu,AMD quad gpu crossfirex support with lucid virtu MVP tech..(this tech is awesome:u can play games and convert hd videos simultaneously without any decrease in ur fps of games running behind),intel turbo boost is awesome and also it has smart connect and raid start which helps u 2 boot within secs.....also lastly gpu boost and relaible......
CONS:only 1 6gb/s SATA connector and no HDMI port......

Other t...

sagar mehta

Dec, 2012

Permalink

Report Abuse

Great product. Really amazed by its performance

A little delay in delivery by Flipkart. But dude as soon as I received the product I was really amazed to see its performance. Great Speed with overclocking features. And yes "Virtual MVP" is amazing. The only thing it lacks only 1 SATA 6 Gb port. Except that great board at such low price. Buyers with tight budget of 6.5 K should definitely go for this board

Sanjay Ghosh

Certified Buyer

Jul, 2012

Permalink

Report Abuse

I just want to know

I just want to know that, is this motherboard support Dell touch screen monitor ? can you guys help me please ?

Rahul Bose

Jun, 2014

Permalink

Report Abuse
