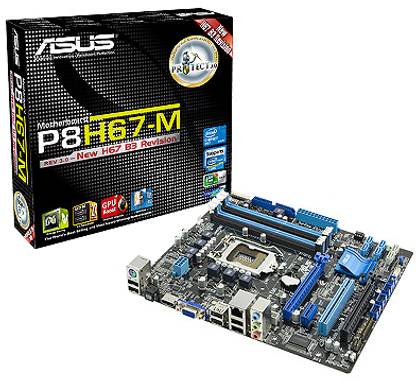

ASUS P8H67-M LGA 1155Socket Micro-ATX Intel H67 Chipset DDR3 Motherboard for Desktop

Price: Not Available

Currently Unavailable

Asus guarantees that the Asus Device that you have purchased are free from defects in materials or workmanship under normal use during the Limited Warranty Period. The Limited Warranty Period starts from the date of purchase. Your sales receipt, showing the date of purchase, is the proof of your purchase date. You may be required by your Purchase Site or Asus Authorized Networking products to present the proof of purchase as a condition of receiving warranty service. You are entitled to a hardware warranty service if a repair is required within the Limited Warranty Period.Know More

Highlights

Suitable For Desktop
Intel H67
Data Rate DDR3
Maximum RAM Capacity 32
Form Factor: Micro-ATX

Specifications

In The Box

Sales Package

User's manual,I/O Shield, 1 x UltraDMA 133/100 cable(s), 2 x SATA 6Gb/s cable(s)

General

Brand	ASUS
Model ID	P8H67-M

Essentials

Form Factor	Micro-ATX
Socket Type	LGA 1155
Compatible Processors	2nd Generation Intel Core i7, Intel Core i5, Intel Core i3 processors Supports Intel 32 nm CPU
Chipset	Intel H67
Chipset Manufacturer	Intel

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 DDR3 Dual Channel DIMM
Memory Frequency	1066 MHz, 1333 MHz
ECC Support	No
Buffered Memory	Unbuffered

Storage

SATA 3 Gb/s	Intel H67
SATA 6 Gb/s	Intel H67
RAID Configurations	0, 1, 5, 10
PATA Ultra DMA	VIA VT6415

Graphics

Integrated Graphics card	Yes
Multi GPU Support	Yes, AMD Quad-GPU CrossFireX Technology

Audio

Audio Codec	Realtek ALC887
Audio Channels	8
Audio Features	Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking

Connectivity

Ethernet Controller

Realtek 8111E

Expansion Slots

PCI Slots	1
PCIe x1 Slots, Generation	1, 2
PCIe x16 Slots, Generation	2, 1

Internal I/o Headers

SATA 3 Gb/s Headers	4
SATA 6 Gb/s Headers	2
USB 2.0 Headers	4
ATX Power Connectors	1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
Other Connectors	1 x IDE Connector, 1 x System Panel(s), 1 x MemOK Button(s) 1 x Clear CMOS jumper(s), 1 x S/PDIF Out Header(s) 1 x Front Panel Audio Connector(s) (AAFP)

Back Panel Ports

USB 2.0 Ports, Controller	6
HDMI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	3
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	1
PS/2	1

General Features

Overclocking	Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall)
Support CDs	Drivers, Anti-virus software (OEM version),ASUS Update,ASUS Utilities
BIOS	32 Mb Flash ROM , EFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

Dimensions

234 x 245 mm

Warranty

Domestic Term	3 Years ASUS India Warranty and Free Transit Insurance.
Warranty Summary	Asus guarantees that the Asus Device that you have purchased are free from defects in materials or workmanship under normal use during the Limited Warranty Period. The Limited Warranty Period starts from the date of purchase. Your sales receipt, showing the date of purchase, is the proof of your purchase date. You may be required by your Purchase Site or Asus Authorized Networking products to present the proof of purchase as a condition of receiving warranty service. You are entitled to a hardware warranty service if a repair is required within the Limited Warranty Period.
Covered in Warranty	During the Limited Warranty Period, Asus will, at its sole discretion, repair or replace any defective component. All spare-parts or module removed under this Limited Warranty become the property of Asus.
Not Covered in Warranty	Warranty invalid if damage/dysfunction caused by improper handling/usage, destruction. Warranty invalid if serial label is removed, broken Warranty invalid if disassembly by end-user or non-ASUS-authorized repair centres. This Limited Warranty does not cover any software applications or programs; non-Asus products or non-Asus branded peripherals.
Warranty Service Type	On Site (Based on the lO.Cation)

Ratings & Reviews

4.6

★

5 Ratings &

1 Reviews

5★
4★
3★
2★
1★

Bang for the buck!

This is a very good motherboard and plus for that price you get two PCIEx16 slots for SLI compatibility.

32GB of RAM space
Build quality is A-1 as usual(its ASUS, come on)
Auto tune and Voltage tweak are just fabulous.

It's also very good for the mid-level gamer who's wanting to upgrade.
My Specs:

-Intel Core i3 2120 processor 3.3 GHz FCLGA1155
-8GB (4 x 2) Corsair Vengeance DDR3 RAM
-ASUS ENGTX 550Ti Direct CU 1GB DDR5 GPU
-WD Caviar Green 1TB SATA 6.0 Gbps HDD
-Cooler Master Hyper TX3 EV...

Shubhankar Kamat

Certified Buyer

Jul, 2012
