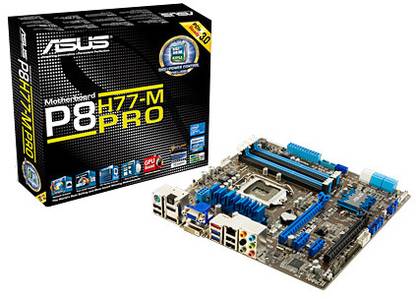

ASUS P8H77-M PRO LGA 1155Socket Micro-ATX Intel H77 Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

3 Year Domestic WarrantyKnow More

Highlights

Intel H77
Data Rate DDR3
Maximum RAM Capacity 32
Form Factor: Micro-ATX

Specifications

Back Panel Ports

USB 2.0 Ports, Controller	4
USB 3.0 Ports, Controller	2, Intel H77 Chipset
eSATA Ports, Controller	Marvell PCIe SATA 6Gb/s, 1
HDMI Ports	1
DVI Ports	1
VGA/D Sub Ports	1
Audio I/O Channels	6
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports), 1 (S/PDIF Out Ports)
RJ-45 Ethernet Jacks	1
PS/2	1

In The Box

Sales Package

Motherboard,Userguide,Driver CD,Port-Plate,Cables, jumpers

General Features

Overclocking	Overclocking Protection: ASUS C.P.R. (CPU Parameter Recall)
Support CDs	Drivers, ASUS Utilities, ASUS Update, Anti-virus software (OEM version)
Bundled Software	Overclocking Protection: ASUS C.P.R. (CPU Parameter Recall)
OS Support	Windows 7
BIOS	64 Mb Flash ROM, UEFI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.7, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen Function, F3 Shortcut Function and ASUS DRAM SPD (Serial Presence Detect) Memory Information
Features	Supports Intel 32 nm CPU, Supports Intel 22 nm CPU
Advanced Technologies	Intel Turbo Boost Technology 2.0, Clear Video HD Technology, Intel Smart Response Technology, Intel Rapid Start Technology, Intel Smart Connect Technology, InTru 3D, Intel Extreme Memory Profile (XMP)
Advanced Features	ASUS Digital Power Design, ESD Guards, ASUS UEFI BIOS EZ Mode Featuring Friendly Graphics User Interface, Network iControl, USB 3.0 Boost, Disk Unlocker, ASUS Quiet Thermal Solution, ASUS EZ DIY, ASUS Q-Design, Blu-Ray Audio Layer Content Protection, DisplayPort 1.1a Support

Warranty

Domestic Term	3 Years ASUS India Warranty and Free Transit Insurance.
Warranty Summary	3 Year Domestic Warranty
Covered in Warranty	During the Limited Warranty Period, Asus will at its sole discretion repair or replace any defective component. All spare-parts or module removed under this Limited Warranty become the property of Asus
Warranty Service Type	On Site (Based on the Location)

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 DDR3 Dual Channel DIMM
Memory Frequency	DIMM MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Dimensions

Dimensions	245 x 245 mm
Weight	245 g

Essentials

Form Factor	Micro-ATX
Socket Type	LGA 1155
Compatible Processors	Intel 2nd Generation Core i7 Processor, Intel 2nd Generation Core i5 Processor, Intel Pentium Processor, Intel 2nd Generation Core i3 Processor, Intel 3rd Generation Processors, Intel Celeron Processor
Chipset	Intel H77
Chipset Manufacturer	Intel

Graphics

Integrated Graphics card	Yes
Multi GPU Support	Yes, AMD Quad-GPU CrossFireX Technology, LucidLogix Virtu MVP Technology

Storage

SATA 3 Gb/s	Intel H77 Express Chipset
SATA 6 Gb/s	Intel H77 Chipset
RAID Controller	Intel H77 Chipset
RAID Configurations	0, 1, 5, 10
PATA Ultra DMA	2

Expansion Slots

PCIe x1 Slots, Generation	1, 2
PCIe x8 Slots, Generation	1, 2
PCIe x16 Slots, Generation	1

General

Brand	ASUS
Model ID	P8H77-M PRO
Key Features	LGA 1155 Socket Type, RAID Controller: Intel H77 Chipset, Maximum 32 GB DDR3, 4 Memory Slots, Dual Channel DIMM Memory, Micro-ATX Form Factor, Intel H77 Chipset

Connectivity

Ethernet Controller	Realtek 8111F
Ethernet Card	8
Ethernet Features	Gigabit LAN
IEEE 1394a FireWire Controller	Realtek 8111F
Number of Printer Ports	1
Number of Com Ports	1
FireWire Specifications	Gigabit LAN

Audio

Audio Codec	Realtek ALC892
Audio Channels	8
Audio Features	High Definition Audio, Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

Internal I/o Headers

SATA 3 Gb/s Headers	4
SATA 6 Gb/s Headers	2
USB 2.0 Headers	3
USB 3.0 Headers	1
ATX Power Connectors	3 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
Fan Headers	1 (Processor Fan Headers), 2 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x Clear CMOS Jumper, 1 x Parallel Port Connector, 1 x Power Fan Connector, 1 x MemOK Button, 1 x 24-pin EATX Power Connector, 1 x EPU Switch, 1 x GPU Boost Switch, 1 x System Panel (Q-Connector), 1 x S/PDIF Out Header

Ratings & Reviews

4.3

★

4 Ratings &

2 Reviews

5★
4★
3★
2★
1★

GO for it.....

solid build quality, good for gaming and another multitasking processes . low budget gamers should buy this , micro atx form factor is as good as asus maximus v gene motherboard,
I strongly recommand this PRODUCT buying this ur system will be future proofed for 5 years.

GO FOR IT GUYS !!!!!!!!!!! :-)

Ajay Kumar Dhiman

Oct, 2012

Permalink

Report Abuse

Not best option with price and structure

+ Supports Win XP. This can be one good reason to opt this board if one has Intel 2nd generation onwards processor and XP is a mandate.
+ UEFI Bios, user friendly. An upgrade is recommended with latest flash available on Asus website.
+ Good number of USB 3.0 ports and Sata 6 Gbps headers.
+ Very stable system.

- Congested structure. PCIe x1 slot may be unusable as it is right below PCIe 3.0 that may get covered with a space taking GPU. Expected from a micro ATX board but placement could ...

Gajendra N

Dec, 2013

Permalink

Report Abuse
