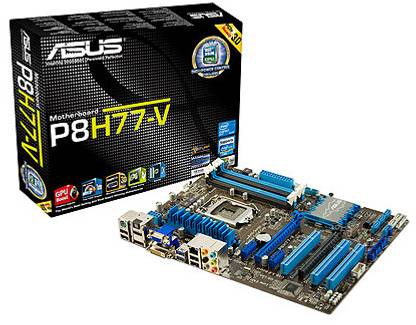

ASUS ASUS P8H77-V LGA 1155Socket ATX Intel H77 Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

Highlights

Intel H77
Data Rate DDR3
Maximum RAM Capacity 32
Form Factor: ATX

Specifications

In The Box

Sales Package

User Manual, I/O Shield, 2 x SATA 6Gb/s cable(s)

General

Brand	ASUS
Model ID	ASUS P8H77-V

Essentials

Form Factor	ATX
Socket Type	LGA 1155
Compatible Processors	Intel 2nd Generation Processor, Intel 3rd Generation Processors
Chipset	Intel H77
Chipset Manufacturer	Intel

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 DDR3 Dual Channel DIMM
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Storage

SATA 3 Gb/s	Intel H77 Chipset
SATA 6 Gb/s	Intel H77 Chipset
RAID Controller	Intel H77 Chipset
RAID Configurations	0, 1, 5, 10

Graphics

Integrated Graphics card	Yes
Multi GPU Support	Yes, AMD Quad-GPU CrossFireX Technology, LucidLogix Virtu MVP Technology

Audio

Audio Codec	VIA VT1708S
Audio Channels	8
Audio Features	High Definition Audio, Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

Connectivity

Ethernet Controller	Qualcomm Atheros
Ethernet Features	1 x Gigabit LAN

Expansion Slots

PCI Slots	3
PCIe x1 Slots, Generation	2
PCIe x16 Slots, Generation	1

Internal I/o Headers

SATA 3 Gb/s Headers	4
SATA 6 Gb/s Headers	2
USB 2.0 Headers	3
USB 3.0 Headers	1
ATX Power Connectors	1 (8 Pin ATX 12V Power Connectors)
Fan Headers	1 (Processor Fan Headers), 2 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x Clear CMOS Jumper, 1 x Power Fan connector, 1 x 24-pin EATX Power Connector

Back Panel Ports

USB 2.0 Ports, Controller	4
USB 3.0 Ports, Controller	2, Intel H77 Chipset
HDMI Ports	1
DVI Ports	1
VGA/D Sub Ports	1
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports), 1 (S/PDIF Out Ports)
RJ-45 Ethernet Jacks	1
PS/2	1

General Features

Overclocking	Overclocking Protection: ASUS C.P.R.(CPU Parameter Recall)
Support CDs	Drivers, ASUS Utilities, ASUS Update
Bundled Software	Anti-virus software (OEM version)
OS Support	Windows XP and Above
BIOS	64 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.6, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3, F12 PrintScreen Function
Features	Supports Intel 32 nm CPU, Supports Intel 22 nm CPU
Advanced Technologies	Latest Transfer Technology, Intel Smart Connect Technology, Intel Rapid Start Technology, Intel Smart Response Technology
Advanced Features	ASUS Quiet Thermal Solution, ASUS EZ DIY, ASUS Q-Design, 100% All High-quality Conductive Polymer Capacitors, DIGI+ Power Control: Digital Power Design for the CPU and iGPU, EPU, GPU Boost, Direct DIGI to DIGI Power Delivery Yeilds Greater Efficiency, Precise Tuning, and Control of the CPU and iGPU Voltages,

Dimensions

226 x 305 mm

Warranty

Domestic Term	3 Year ASUS India Warranty and Free Transit Insurance.
Covered in Warranty	During the Limited Warranty Period, Asus will at its sole discretion repair or replace any defective component. All spare-parts or module removed under this Limited Warranty become the property of Asus
Warranty Service Type	On Site (Based on the Location)

Ratings & Reviews

★

9 Ratings &

1 Reviews

5★
4★
3★
2★
1★

The best board in h77 chipset....

this board includes the best features such as pcie-express 3.0,crossfire for pci-express 2.0 cards and ultra fast usb 3.0....
buy any mid range processor of i5 3rd generation and your system is OUTDATE proof for the next four years...
performance is also good and ram support is 32gb dual channel....

Raveesh Pandey

May, 2012
