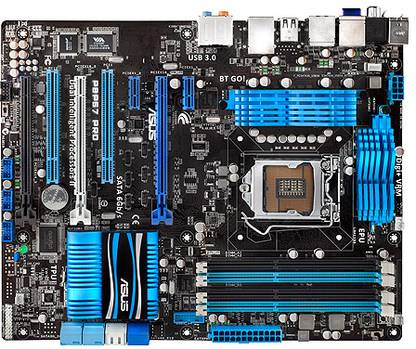

ASUS P8P67 PRO LGA 1155Socket ATX Intel P67 Chipset DDR3 Motherboard for Desktop

Name: ASUS P8P67 PRO LGA 1155Socket ATX Intel P67 Chipset DDR3 Motherboard for Desktop
Brand: ASUS
SKU: MBDD2RYMGJPU3ZDH
Rating: 5 (2 reviews)

Price: Not Available

Currently Unavailable

Asus guarantees that the Asus Device that you have purchased are free from defects in materials or workmanship under normal use during the Limited Warranty Period. The Limited Warranty Period starts from the date of purchase. Your sales receipt, showing the date of purchase, is the proof of your purchase date. You may be required by your Purchase Site or Asus Authorized Networking products to present the proof of purchase as a condition of receiving warranty service. You are entitled to a hardware warranty service if a repair is required within the Limited Warranty Period.Know More

Highlights

Suitable For Desktop
Intel P67
Data Rate DDR3
Maximum RAM Capacity 32
Form Factor: ATX

Specifications

Back Panel Ports

USB 2.0 Ports, Controller	6
USB 3.0 Ports, Controller	2, NEC
eSATA Ports, Controller	2 Red and Green, Jmicron JMB362
IEEE 1394a Ports	1
Audio I/O Channels	6
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports), 1 (S/PDIF Out Ports)
RJ-45 Ethernet Jacks	1
PS/2	2

In The Box

Sales Package

User's manual,ASUS Q-Shield, 2 x SATA 3Gb/s cable(s), 2 x SATA 6Gb/s cable(s), 1 x SLI bridge(s), 1 x Q-connector(s) (2 in 1) , 1 x ASUS USB 3.0 Bracket(s)

General Features

Overclocking	Overclocking Protection : - ASUS C.P.R.(CPU Parameter Recall)
Support CDs	Drivers, Anti-virus software (OEM version),ASUS Update,ASUS Utilities
BIOS	32 Mb Flash ROM , EFI AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.5, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2, ASUS CrashFree BIOS 3

Warranty

Domestic Term	3 Years ASUS India Warranty and Free Transit Insurance.
Warranty Summary	Asus guarantees that the Asus Device that you have purchased are free from defects in materials or workmanship under normal use during the Limited Warranty Period. The Limited Warranty Period starts from the date of purchase. Your sales receipt, showing the date of purchase, is the proof of your purchase date. You may be required by your Purchase Site or Asus Authorized Networking products to present the proof of purchase as a condition of receiving warranty service. You are entitled to a hardware warranty service if a repair is required within the Limited Warranty Period.
Covered in Warranty	During the Limited Warranty Period, Asus will, at its sole discretion, repair or replace any defective component. All spare-parts or module removed under this Limited Warranty become the property of Asus.
Not Covered in Warranty	Warranty invalid if damage/dysfunction caused by improper handling/usage, destruction. Warranty invalid if serial label is removed, broken Warranty invalid if disassembly by end-user or non-ASUS-authorized repair centres. This Limited Warranty does not cover any software applications or programs; non-Asus products or non-Asus branded peripherals.
Warranty Service Type	On Site (Based on the lO.Cation)

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 DDR3 Dual Channel DIMM
Memory Frequency	1866 MHz, 1066 MHz, 2133(O.C) MHz, 1600 MHz, 1333 MHz, 2200(O.C) MHz
ECC Support	No
Buffered Memory	Unbuffered

Dimensions

244 x 305 mm

Essentials

Form Factor	ATX
Socket Type	LGA 1155
Compatible Processors	2nd Generation Intel Core i7, Intel Core i5, Intel Core i3 processors Supports Intel 32 nm CPU
Chipset	Intel P67
Chipset Manufacturer	Intel

Graphics

Integrated Graphics card	No
Multi GPU Support	Yes, NVIDIA Quad-GPU SLI Technology,AMD Quad-GPU CrossFireX Technology

Storage

SATA 3 Gb/s	Intel P67
SATA 6 Gb/s	Marvell PCIe 9120
RAID Configurations	0, 1, 5, 10

Expansion Slots

PCI Slots	2
PCIe x1 Slots, Generation	2
PCIe x16 Slots, Generation	2

General

Brand	ASUS
Model ID	P8P67 PRO
Designed For	Desktop
Key Features	ATX Form Factor, LGA 1155 Socket Type, Maximum 32 GB DDR3, 4 Memory Slots, Dual Channel DIMM Memory, Intel P67 Chipset, 4 SATA 3G b/s Headers

Connectivity

Ethernet Controller	Intel 82579
Ethernet Features	Intel LAN- Dual interconnect between the Integrated LAN controller and Physical Layer (PHY)
IEEE 1394a FireWire Controller	VIA 6308P
Number of FireWire Ports	2
Wireless and Bluetooth	1

Audio

Audio Codec	Realtek ALC 892
Audio Channels	8
Audio Features	Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking Audio Feature : Absolute Pitch 192kHz/ 24-bit True BD Lossless Sound Blu-ray audio layer Content Protection DTS Surround Sensation UltraPC

Internal I/o Headers

SATA 3 Gb/s Headers	4
SATA 6 Gb/s Headers	2
USB 2.0 Headers	3
USB 3.0 Headers	1
ATX Power Connectors	1 (24 Pin ATX Power Connectors), 1 (8 Pin ATX 12V Power Connectors)
Other Connectors	1 x MemOK Button(s) 1 x TPU Switch(es), 1 x EPU Switch(es), 1 x Front Panel Audio Connector(s) (AAFP) 1 x System Panel(s) (Q-Connector), 1 x S/PDIF Out Header(s)

Ratings & Reviews

★

6 Ratings &

2 Reviews

5★
4★
3★
2★
1★

i must say ..

its an awesome piece of board , the feel of the board is really nice , has good assistance for everything , dont have ide port though , other things are nice ..

whats different :- its got built in bluetooth , usb 3 support , sata6gb support ( 2 6gb sata cables provided ) , new bios , compared to p8p67 series . all is nice in it , beg it if your in budget for i5 performance pc ..

sameer sourav

Dec, 2011

Permalink

Report Abuse

Great Motherboard to discontinue

I don't own this product but I've installed it on my friends PC. I want to purchase this product but its currently out of stock. I am eagerly waiting for its new stock to arrive.

This board is an amazing performer. If you are planning to get a Graphics card this board is anyday better than the newer Z68 boards, because graphics switching won't be used while gaming and the CPU's iGPU is too weak to handle games. Also get this product if you use an SSD as the main drive (C drive). Z68's SSD ca...

Sushil George

Mar, 2012

Permalink

Report Abuse
