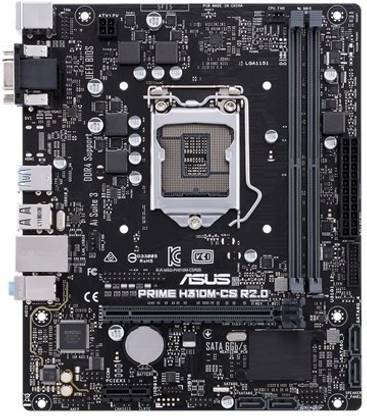

    ASUS PRIME H310M-CS R2.0 LGA1151Socket Micro-ATX Intel H310 Chipset DDR4 Motherboard for Desktop

    ASUS PRIME H310M-CS R2.0 LGA1151Socket Micro-ATX Intel H310 Chipset DDR4 Motherboard for Desktop

    Price: Not Available
    Currently Unavailable
    3 Year Warranty against Manufacturing defectsKnow More
    Highlights
    • Suitable For Desktop
    • Intel H310
    • Data Rate DDR4
    • Maximum RAM Capacity 32 GB
    • Form Factor: Micro-ATX
    Description
    Intel LGA-1151 mini-ITX motherboard with DDR4 2666MHz, VGA, SATA 6Gbps and USB 3.1 Gen1.
    Read More
    Specifications
    In The Box
    Sales Package
    • User's manual, I/O Shield, 2 x SATA 6Gb/s cable(s), 1 x Supporting DVD
    General
    Brand
    • ASUS
    Model ID
    • PRIME H310M-CS R2.0
    Essentials
    Form Factor
    • Micro-ATX
    Socket Type
    • LGA1151
    Chipset
    • Intel H310
    Chipset Manufacturer
    • Intel® H310
    Memory
    Number of Memory Slots
    • 2 Slots
    Memory Configuration
    • 32 GB DDR4 Dual Channel Memory Architecture DIMM
    Memory Frequency
    • 2666/2400/2133 MHz
    ECC Support
    • Non-ECC
    Buffered Memory
    • No
    Storage
    SATA 6 Gb/s
    • 4, Intel® H310 Chipset
    Graphics
    Integrated Graphics card
    • Integrated Graphics Processor- Intel® HD Graphics support
    External Graphics Card Support
    • Yes
    Audio
    Audio Codec
    • Realtek® ALC887 8-Channel High Definition Audio CODEC
    Audio Channels
    • 8
    Audio Features
    • Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference, Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals, Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
    Connectivity
    Ethernet Controller
    • Realtek® RTL8111H, 1 x Gigabit LAN
    Ethernet Card
    • Gigabit LAN
    Expansion Slots
    PCIe x1 Slots, Generation
    • 1
    PCIe x16 Slots, Generation
    • 1
    Internal I/o Headers
    SATA 6 Gb/s Headers
    • 4
    USB 2.0 Headers
    • 3
    USB 3.0 Headers
    • 3
    ATX Power Connectors
    • 1 (4 Pin EATX), 1 (24 Pin ATX Power Connectors)
    Fan Headers
    • 1 (Processor Fan Headers), 1 (System Fan Headers)
    Front Panel Headers
    • 1
    VGA/Dsub Connectors
    • 1
    Back Panel Ports
    USB 2.0 Ports, Controller
    • 4
    USB 3.0 Ports, Controller
    • 2
    Audio I/O Channels
    • 3
    RJ-45 Ethernet Jacks
    • 1
    PS/2
    • 2
    General Features
    OS Support
    • Windows® 10 64-bit
    BIOS
    • 64Mb Flash ROM, UEFI AMI BIOS, PnP, DMI 2.0, WfM2.0, SM BIOS 3.0, ACPI 5.0, ASUS EZ Flash, Multi Language
    Advanced Technologies
    • The Intel® H310 is a single-chipset design that supports 8th Generation Intel® Core™ LGA1151 processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. Additionally, the H310 chipset provides a maximum of four USB 3.1 Gen 1 ports, four SATA 6Gbps ports, and PCIe 2.0 lane-speed support, for faster data retrieval. Intel H310 also supports integrated-graphics, so you'll enjoy the very latest in graphics performance.
    Advanced Features
    • ASUS SafeSlot Core: Fortified PCIe Slot prevents damage, ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!, ASUS Overvoltage Protection: World-class circuit-protecting power design, ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!, ASUS DIGI+ VRM: 4 Phase digital power design, Optimem (Improved DDR4 stability), Stylish Fanless Design Heat-sink solution
    Warranty
    Warranty Summary
    • 3 Year Warranty against Manufacturing defects
    Covered in Warranty
    • Warranty of Product is Limited to Manufacturing Defects Only.
    Not Covered in Warranty
    • Physical Damage / Liquid Submission.
    Warranty Service Type
    • Carry in. Brand Support Toll free No. 18002090365 and Mail us link -https://www.asus.com/in/support/
    Ratings & Reviews
    3.9
    ★
    8 Ratings &
    2 Reviews
    • 5★
    • 4★
    • 3★
    • 2★
    • 1★
    • 4
    • 2
    • 0
    • 1
    • 1
    2

    Slightly disappointed

    VGA port was not working.I tried the same cable with other setup and it worked.This product has no return policy.
    READ MORE

    Rajesh Ranjan

    Certified Buyer, Deoghar

    Jul, 2020

    4
    4
    Permalink
    Report Abuse
    5

    Perfect product!

    Good
    READ MORE

    Kunal L

    Certified Buyer, Bengaluru

    Feb, 2021

    0
    0
    Permalink
    Report Abuse
    Questions and Answers
    Q:does it support i5 9th gen.
    A:YES
    DEEPSHOP
    Flipkart Seller
    9
    1
    Report Abuse
    Q:does it support amd ryzen 5 a400g
    A:NO
    DEEPSHOP
    Flipkart Seller
    2
    2
    Report Abuse
    Q:does this supports i7 6th generation
    A:no
    DEEPSHOP
    Flipkart Seller
    1
    2
    Report Abuse
    Q:Does it support i5 3570
    A:NO
    DEEPSHOP
    Flipkart Seller
    0
    1
    Report Abuse
    Q:can i install ddr3 ram on it
    A:no
    DEEPSHOP
    Flipkart Seller
    0
    0
    Report Abuse
    Q:does it support intel i7
    A:YES,8TH GEN
    DEEPSHOP
    Flipkart Seller
    1
    0
    Report Abuse
    Q:can it support Intel i3-9100F 9th generation processor
    A:YES
    DEEPSHOP
    Flipkart Seller
    1
    0
    Report Abuse
    Q:support i5 9 generation
    A:yes
    DEEPSHOP
    Flipkart Seller
    14
    0
    Report Abuse
    Q:can i use i3 processor
    A:YES,I3 8TH AND 9TH GEN
    DEEPSHOP
    Flipkart Seller
    5
    0
    Report Abuse
    Q:dose it support Intel processor or any processor????
    A:ONLY INTEL 8THANF 9TH GEN PROCESORS
    DEEPSHOP
    Flipkart Seller
    6
    7
    Report Abuse
