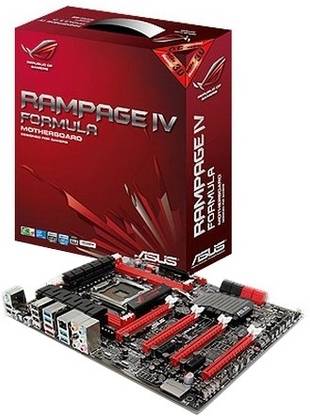

ASUS Rampage IV Formula LGA 2011Socket ATX Intel X79 Chipset DDR3 Motherboard

Price: Not Available

Currently Unavailable

Limited Parts and Labour are CoveredKnow More

Highlights

Intel X79
Data Rate DDR3
Maximum RAM Capacity 32
Form Factor: ATX

Specifications

In The Box

Sales Package

User's Manual, I/O Shield, 4 x SATA 3 GB/s Cable, 4 x SATA 6 GB/s Cable, 1 x SLI Bridge,1 x Crossfire Cables, 1 x Q-connector (2 in 1), 1 x ROG Connect Cable, 1 x 12 in 1 ROG Cable Label, 1 x X Socket Pad, 1 X ROG Door Hanger

General

Brand	ASUS
Model ID	Rampage IV Formula

Essentials

Form Factor	ATX
Socket Type	LGA 2011
Compatible Processors	Intel 2nd Generation Core i7 Processor, Intel 3rd Generation Core i7 Processor
Chipset	Intel X79
Chipset Manufacturer	Intel

Memory

Number of Memory Slots	4 Slots
Memory Configuration	32 DDR3 Quad Channel DIMM
Memory Frequency	1866 MHz, 2133(O.C.) MHz, 1066 MHz, 2400(O.C.) MHz, 1600 MHz, 1333 MHz
ECC Support	Non-ECC
Buffered Memory	Unbuffered

Storage

SATA 3 Gb/s	Intel X79 Chipset
SATA 6 Gb/s	Intel X79 Chipset
RAID Controller	Intel X79 Chipset
RAID Configurations	0, 1, 5, 10

Graphics

Multi GPU Support

Yes, NVIDIA 4-way SLI Technology, AMD 4-way CrossFireX Technology

Audio

Audio Codec	SupremeFX III
Audio Channels	8
Audio Features	High Definition Audio, Output Signal-to-Noise Ratio (A-Weighted): 110 dB, Output THD+N at 1kHz: 95 dB, Jack-detection, Multi-streaming, Front Panel Jack-retasking, SupremeFX Shielding Technology, 1500 uF Audio Power Capacitor, Gold-plated Jacks, X-Fi Xtreme Fidelity, EAX Advanced HD 5.0, THX TruStudio PRO, Creative ALchemy, Blu-ray Audio Layer Content Protection

Connectivity

Ethernet Features

1 x Gigabit LAN

Expansion Slots

PCIe x1 Slots, Generation	2
PCIe x16 Slots, Generation	4

Internal I/o Headers

SATA 3 Gb/s Headers	4
SATA 6 Gb/s Headers	2
USB 2.0 Headers	3
USB 3.0 Headers	1
ATX Power Connectors	1 (8 Pin ATX 12V Power Connectors)
Fan Headers	2 (Processor Fan Headers), 3 (System Fan Headers)
Front Panel Headers	1
Other Connectors	1 x Front Panel Audio Connector (AAFP), 1 x Reset Button, 1 x 24-pin EATX Power Connector, 1 x Power-on Button, 3 x Thermal Sensor Connector, 1 x EZ Plug Connector (4-pin Molex Power Connector), 1 x Slow Mode Switch, 2 x eSATA 6 GB/s Port, 1 x Optical S/PDIF Out, 1 x Clear CMOS Button, 1 x Go Button, 1 x LN2 Mode Switch, 8 x ProbeIt Measurement Points, 1 x ROG Connect On/ Off Switch, ASMedia ASM1061 Controller: 2 x SATA 6 GB/s Port, 1 x S/PDIF Out Header, 1 x System Panel

Back Panel Ports

USB 2.0 Ports, Controller	6
USB 3.0 Ports, Controller	4
eSATA Ports, Controller	2
Audio I/O Channels	6
Optical S/PDIF Ports and S/PDIF Out ports	1 (Optical S/PDIF Ports)
RJ-45 Ethernet Jacks	1
PS/2	1

General Features

Overclocking	ROG Connect: RC Diagram, RC Remote, RC Poster, GPU TweakIt, Extreme Engine Digi+ II: 8-phase CPU Power Design, 3-phase VCCSA Power Design, 2 + 2 Phase DRAM Power Design, ROG Extreme OC kit: Slow Mode, LN2 Mode, PCIe x16 Lane Switch, Q Reset, EZ Plug, ProbeIt, UEFI BIOS Features: ROG BIOS Print, GPU.DIMM Post, GameFirst, iROG, Extreme Tweaker, Loadline Calibration, USB BIOS Flashback, Overclocking Protection: COP EX (Component Overheat Protection - EX), Voltiminder LED II, ASUS C.P.R. (CPU Parameter Recall)
Support CDs	Drivers, Sound Blaster X-Fi 2 Utility, DAEMON Tools Pro Standard, ROG CPU-Z, Mem TweakIt, ASUS WebStorage, ASUS Utilities
Bundled Software	Kaspersky Anti-virus
OS Support	Windows XP and Above
BIOS	2 x 64 MB UEFI AMI BIOS, PnP, DMI 2.0, WfM 2.0, SM BIOS 2.5, ACPI 2.0a Multi-language BIOS
Features	WfM 2.0, PXE, DMI 2.0, WOL by PME, WOR by PME
Advanced Technologies	Intel Turbo Boost Technology 2.0
Advanced Features	Intel Extreme Memory Profile (XMP), ASUS EPU: EPU CPU Level Up, ASUS Exclusive Features: MemOK!, Onboard Button: Power/ Reset/ Clr CMOS (at Back IO), ASUS Quiet Thermal Solution: ASUS Fan Xpert, ASUS EZ DIY: ASUS O.C. Profile, ASUS CrashFree BIOS 3 , ASUS EZ Flash 2, ASUS MyLogo 2, ASUS Q-Design: ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED), ASUS Q-Slot, ASUS Q-DIMM , ASUS Q-Connector

Limitations

The 4-way SLI Bridge is Purchased Separately, This Motherboard is Ready to Support PCIe 3.0 SPEC Functions will be Available when Using PCIe 3.0-compliant Devices

Dimensions

244 x 305 mm

Warranty

Domestic Term	3 Years ASUS India Warranty and Free Transit Insurance.
Warranty Summary	Limited Parts and Labour are Covered
Covered in Warranty	During the Limited Warranty Period, Asus will, at its Sole Discretion, Repair or Replace any Defective Component. All Spare-parts or Module Removed Under this Limited Warranty Become the Property of Asus
Not Covered in Warranty	Warranty Invalid if Damage/ Disfunction Caused by Improper Handling, Usage, Destruction. Warranty Invalid if Serial Label is Removed, Broken Warranty Invalid if Disassembly by End-user or Non-ASUS Authorized Repair Centres. This Limited Warranty does not Cover any Software Applications or Programs Non-Asus Products or Non-Asus Branded Peripherals
Warranty Service Type	Carry In

Ratings & Reviews

★

6 Ratings &

1 Reviews

5★
4★
3★
2★
1★

Anything with ROG tag cant be ordinary thing

Here comes Asus's one of the Expensive x79 chipset mobo for LGA 2011 Socket ... This motherboard iz indeed expensive but so does the cpu with which it is going to be coupled . It does provide wide range of features which completely justify its price tag :) .. From Ln 2 cooling... to tons of fan headers and IVY BRIDGE E's native quad channel memory compatibility with Awesome uefi overclocking experience ... what else can we expect with in this price range ... and I am totally in love with ...

suprakash pradhan

Certified Buyer, Kolkata

Feb, 2014

Permalink

Report Abuse
